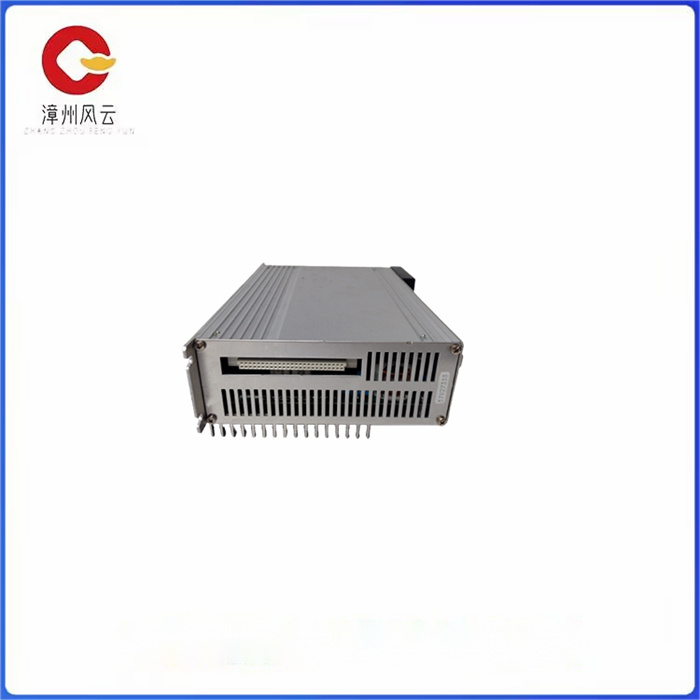

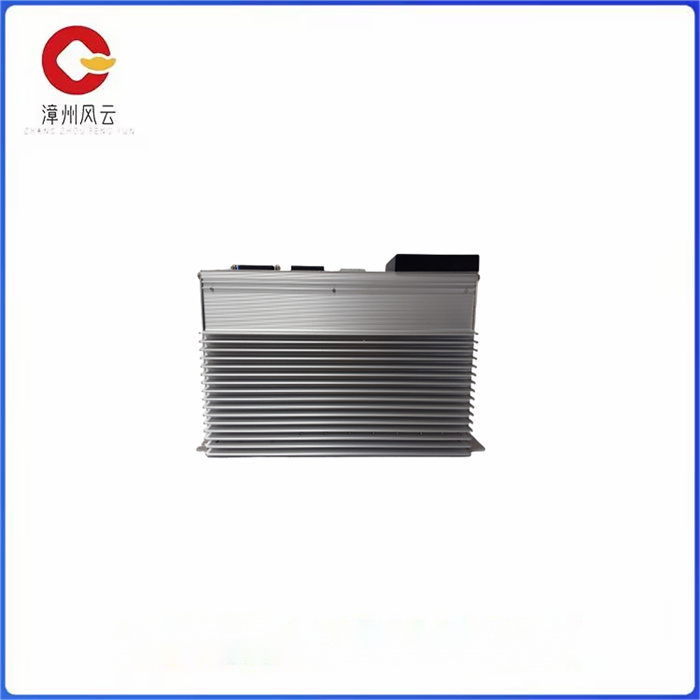

Yokogawa SAN3-40 SAN3-40M 输入输出模块

Yokogawa SAN3-40 SAN3-40M 输入输出模块

数字输入模块 数字输入模块接收32通道或64通道24 V DC开/关信号。 ADV151和ADV161可以用于双冗余配置。 项目规格 ADV151-P/ADV151-E型号(*1) ADV157 ADV161 输入通道的数量32 32 64 额定输入电压(*2) 24伏DC(汇/源)24伏DC(汇/源)24伏DC(汇/源) 输入电压18至26.4伏DC 18至26.4伏DC 20至26.4伏DC 输入关断电压5.0伏DC或更少5.0伏DC或更少5.0伏DC或更少 输入电流(在额定输入电压下)4.1毫安20 % /通道4.1毫安20 % /通道2.5毫安20 % /通道 最大允许输入电压30.0伏DC 30.0伏DC 30.0伏DC 输入信号和系统之间的耐受电压:2 kV交流电，持续1分钟 共用之间:500 V交流电，持续1分钟，每16个通道共用(*3) 功能 用于检测的状态输入功能 开/关状态 检测功能 开/关状态 检测功能 开/关状态 用于计数的按钮输入功能 按钮边缘 —计数功能 按钮边缘 输入响应时间为8 ms或更短(对于状态输入) 最小开启检测时间20毫秒(用于按钮输入) 最大开/关周期为25赫兹(用于按钮输入) 最大电流消耗500毫安(5伏DC) 350毫安(5伏DC) 550毫安(5伏DC) 重量0.3公斤0.4公斤0.3公斤 外接 压力钳端子， 专用电缆(AKB331)， MIL连接器电缆 压力钳端子专用电缆(AKB337)、 MIL连接器电缆 *1: ADV151-E不能安装在ER总线节点单元中。 *2: ADV151、ADV157和ADV161在每个16通道中都是通用的。所有要连接的电压输入信号(24 V DC)必须 极性相同。 *3:使用专用电缆的耐受电压为500 V AC(输入信号和系统之间)。 使用MIL连接器电缆的耐受电压取决于其电缆的电气规格。

Yokogawa SAN3-40 SAN3-40M 输入输出模块

Digital input module The digital input module receives 32 channel or 64 channel 24 V DC on/off signals. The ADV151 and ADV161 can be used in dual redundancy configurations. Item Specifications ADV151-P/ADV151-E Model (*1) ADV157 ADV161 Number of input channels 32 32 64 Rated input voltage (*2) 24 V DC(sink/source)24 V DC(sink/source)24 V DC(sink/source) Input voltage 18 to 26.4 V DC 18 to 26.4 V DC 20 to 26.4 V DC Input turn-off Voltage 5.0 V DC or less 5.0 V DC or less 5.0 V DC or less 5.0 V DC Input current (at rated input voltage)4.1 MA 20% / channel 4.1 MA 20% / Channel 2.5 mA 20% / channel Maximum allowable input voltage 30.0 V DC 30.0 V DC Withstand voltage between the input signal and the system :2 kV AC, lasting 1 minute Shared between :500 V AC, lasting 1 minute, Shared per 16 channels (*3) Function Status input function On/Off Status detection Function On/Off Status detection Function On/Off Status detection Function On/Off Status Button Input function edge for Counting function edge input response time of 8 ms or less (for status input) Min on detection time 20ms (for button input) Max on/off cycle 25Hz (for button input) Max current consumption 500MA (5V DC) 350MA (5V DC) 550MA (5V DC) Weight 0.3kg 0.4kg 0.3kg External pressure clamp terminals, Special cable (AKB331), MIL Connector cable Pressure Clamp terminal Special cable (AKB337), MIL Connector cable *1: ADV151-E cannot be installed in the ER bus node unit. *2: ADV151, ADV157, and ADV161 are common in each 16-channel. All voltage input signals (24 V DC) to be connected must be of the same polarity. *3: The withstand voltage using a dedicated cable is 500 V AC(between the input signal and the system). The withstand voltage of cables using MIL connectors depends on the electrical specifications of their cables.
