YOKOGAWA AIP830 DCS备件控制处理器模块

YOKOGAWA AIP830 进口DCS备件控制处理器模块

YOKOGAWA AIP830为PMC扩展提供前面板访问现场，一个可选的千兆以太网端口，一个10/100 RJ45连接器，一个串行端口，SVGA、键盘/鼠标、手动开关和状态指示灯。

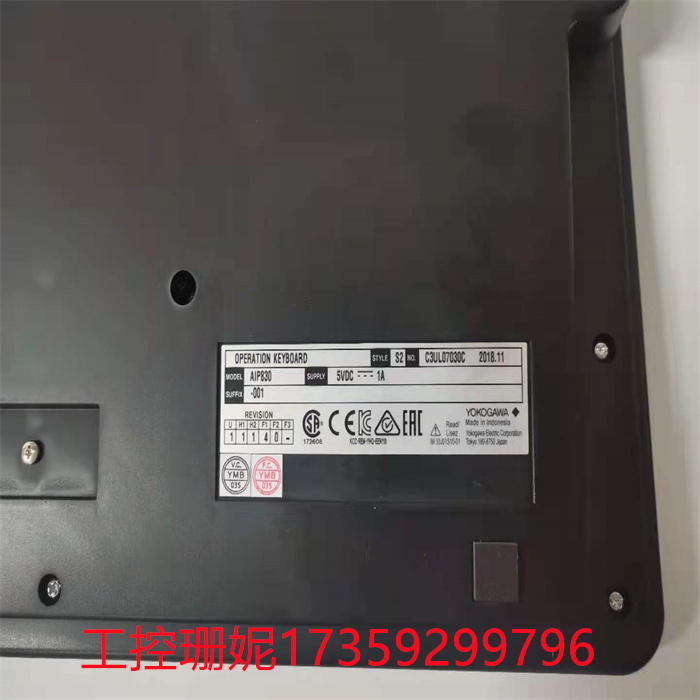

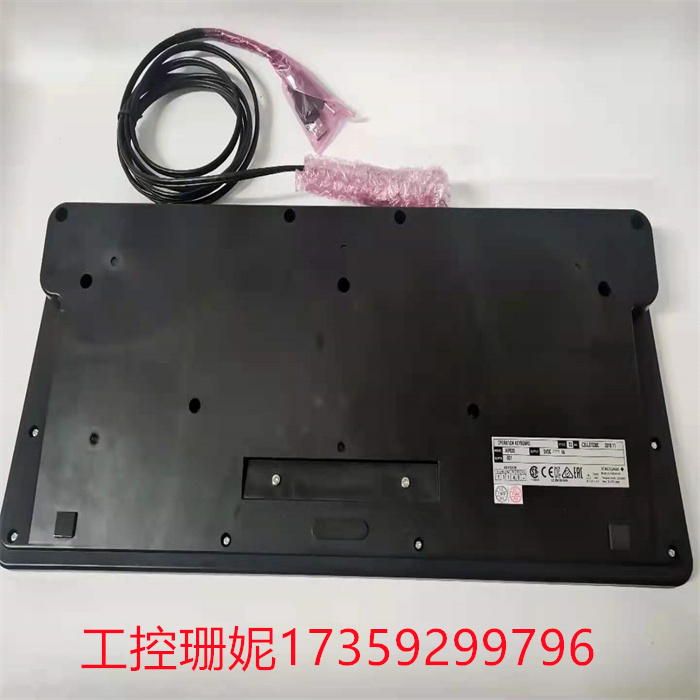

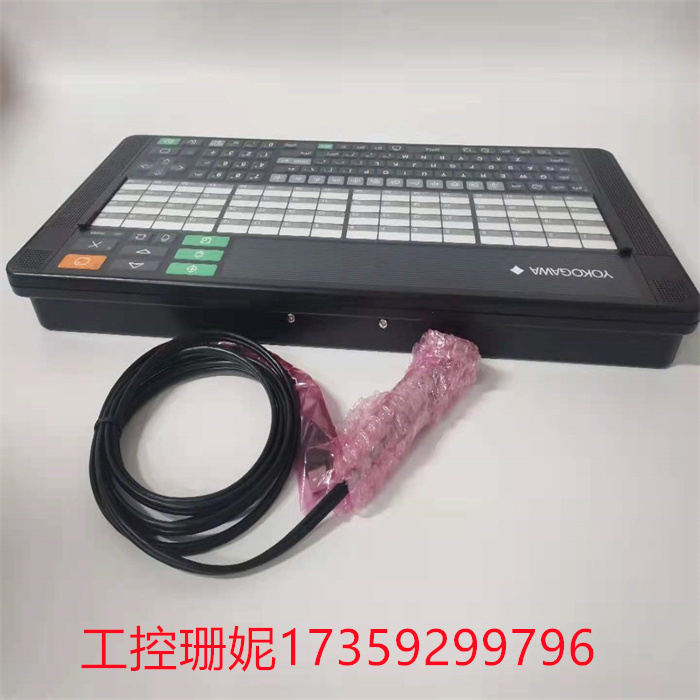

它包含一个独立的USB扬声器，每一个桌面型HIS可以使用一个AIP830键盘。操作键盘由字母数字键和特殊操作键组成。它还有按功能分组的特殊窗口调用键和64个用户可定义的功能键，可用于过程控制和工厂监控。

前面板面板连接器和指示器的标签如下：10/100 10/100 Mbit以太网连接器G1 10/100/1000 Mbit以太网连接器1（或LED）端口1G2 10/100/1000 Mbit以太网LED端口2M/K鼠标/键盘连接器COM1串行端口RST手动复位开关S状态指示灯SVGA模拟视频连接器VMIVME-7807/VME-7807RC为以下各项提供后部I/O支持：数字视频、串行ATA、COM2、3和4、IDE驱动器和两个USB端口。

The YOKOGAWA AIP830 provides front panel access to the field for the PMC expansion, an optional Gigabit Ethernet port, a 10/100 RJ45 connector, a serial port, SVGA, keyboard/mouse, manual switches, and status indicators.

It contains a separate USB speaker, and each desktop HIS can use an AIP830 keyboard. The operating keyboard consists of alphanumeric keys and special operating keys. It also has special window call keys grouped by function and 64 user-defined function keys that can be used for process control and plant monitoring.

Front panel Panel connectors and indicators are labeled as follows: 10/100 10/100 Mbit Ethernet connector G1 10/100/1000 Mbit Ethernet connector 1 (or LED) port 1G2 10/100/1000 Mbit Ethernet LED port 2M/K Mouse/Keyboard connector COM1 Serial port RST Manual reset switch S Status indicator SVGA Analog Video connector VMIVME-7807/VME-7807RC provides rear I/O support for: Digital video, serial ATA, COM2, 3 and 4, IDE drives and two USB ports.
