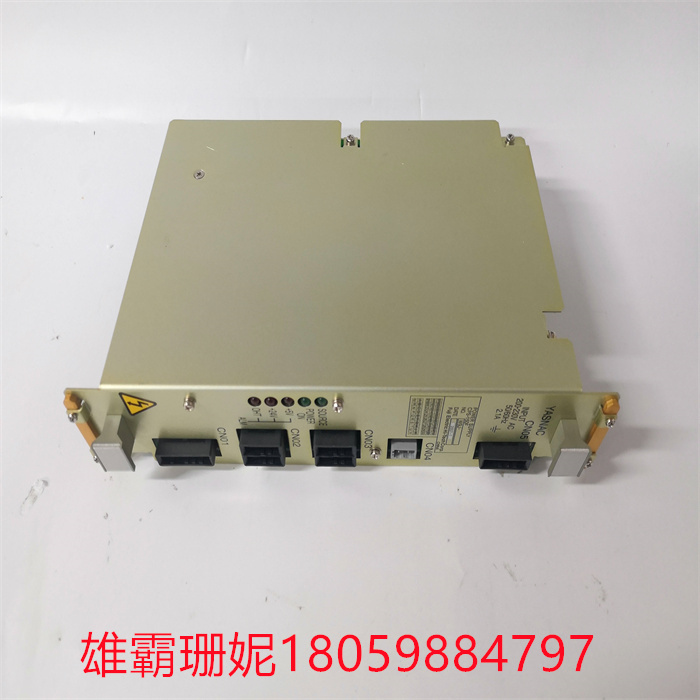

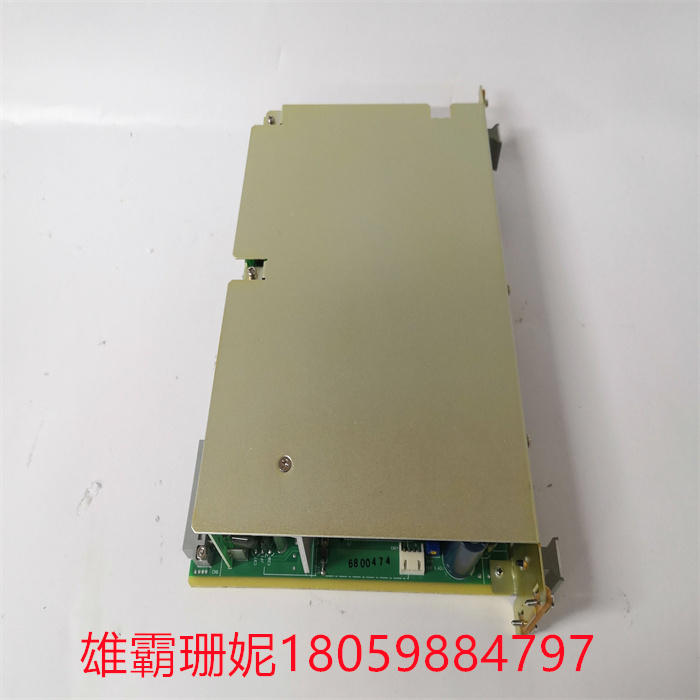

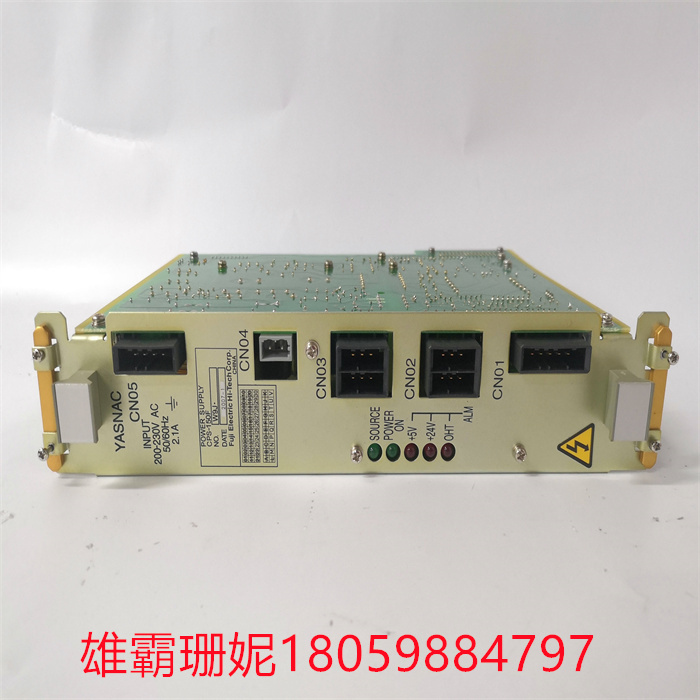

YASKAWA CPS-150F 安川控制模块 CP-9200SH/SVA

YASKAWA CPS-150F 安川控制模块 CP-9200SH/SVA

1. 拔下连接到控制电源单元的所有电缆。

2. 松开连接控制电源单元和机架的四个上下螺钉。（每侧两个螺钉）。

3. 从机架中拉出控制电源单元，拉杆固定在上下侧。

4. 将新的控制电源单元插入机架的插槽中。

5. 推动新的控制电源单元，直到其放置在与其他电路板相同的位置。

6. 拧紧上下螺钉。

7. 连接所有断开的电缆。

1. Remove all cables connecting to the control power unit.

2. Loosen the four screws that connect the control power unit to the rack. (Two screws on each side).

3. Pull out the control power unit from the rack and secure the rod to the upper and lower sides.

4. Insert the new control power unit into the slot of the rack.

5. Push the new control power unit until it is placed in the same position as the rest of the circuit board.

6. Tighten the upper and lower screws.

7. Connect all disconnected cables.
