调节器 电机 9907-162 模块 伍德沃德WOODWARD

调节器 电机 9907-162 模块 伍德沃德WOODWARD

该装置是伍德沃德公司的几款设备之一。伍德沃德是最古老和领先的数字控制设备制造商之一，设计了 505 和 505E 型号的控制装置。这些设备采用基于微处理器的设置构建，以正确操作和简化各种规模的汽轮机操作。

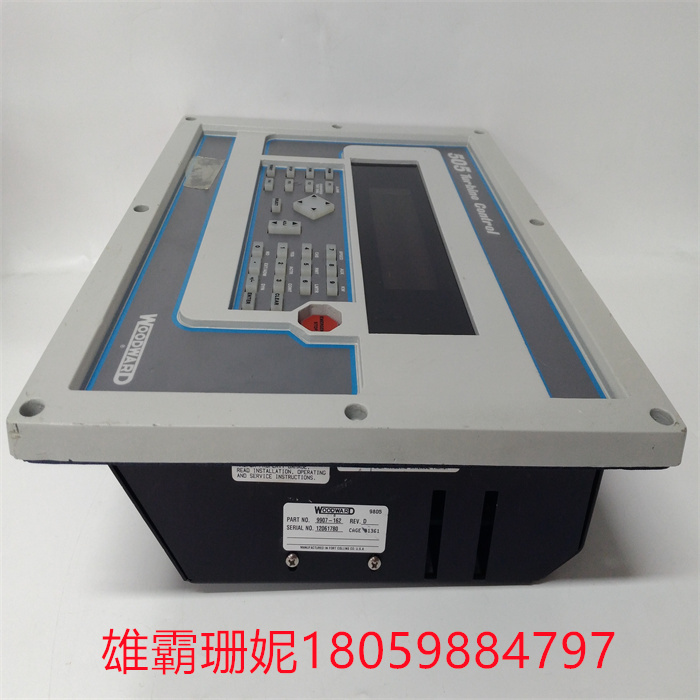

该单元的编号为 9907-162。该设备能够通过使用一到两个分离级执行器来运行涡轮机，以驱动入口蒸汽阀。9907-162 是 Woodward 505 模块之一，设计用于操作蒸汽轮机的单次抽汽和/或进气应用。

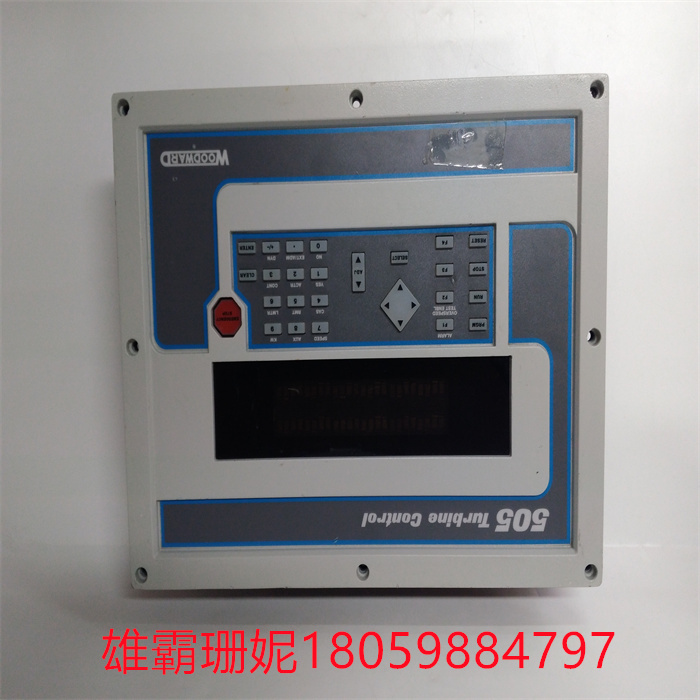

9907-162 型号以及这些系列的其余型号均设计为可由现场操作员现场编程。这可以通过设备正面的完全集成的操作员控制面板来实现。这是一个信息文本显示，有两行可用，每行有 24 个字符。

9907-162 型号还包括一个可选的 NEMA 4X 保护外壳。虽然它确实可以保护内部印刷电路免受侵入性材料的影响，但连接保护框架会限制模型可以安全运行的热量。该单元还设计为作为系统关闭的第一个警报指示器，从而减少故障排除所花费的时间。

The device is one of several made by Woodward. Woodward is one of the oldest and leading manufacturers of digital control equipment, designing control units for the 505 and 505E models. These units are built with a microprocessor-based setup to properly operate and simplify turbine operations of all sizes.

The unit is numbered 9907-162. The device is capable of running the turbine by using one or two separate stage actuators to drive the inlet steam valve. The 9907-162 is one of the Woodward 505 modules designed to operate a steam turbine for single extraction and/or intake applications.

Models 9907-162, as well as the rest of these series, are designed to be field-programmed by field operators. This can be achieved through a fully integrated operator control panel on the front of the device. This is an informational text display with two lines available, each with 24 characters.

Models 9907-162 also include an optional NEMA 4X protective housing. While it does protect the internal printed circuit from invasive materials, connecting the protective frame limits the amount of heat the model can safely operate. The unit is also designed to act as the first warning indicator of system shutdown, thus reducing the time spent troubleshooting.
