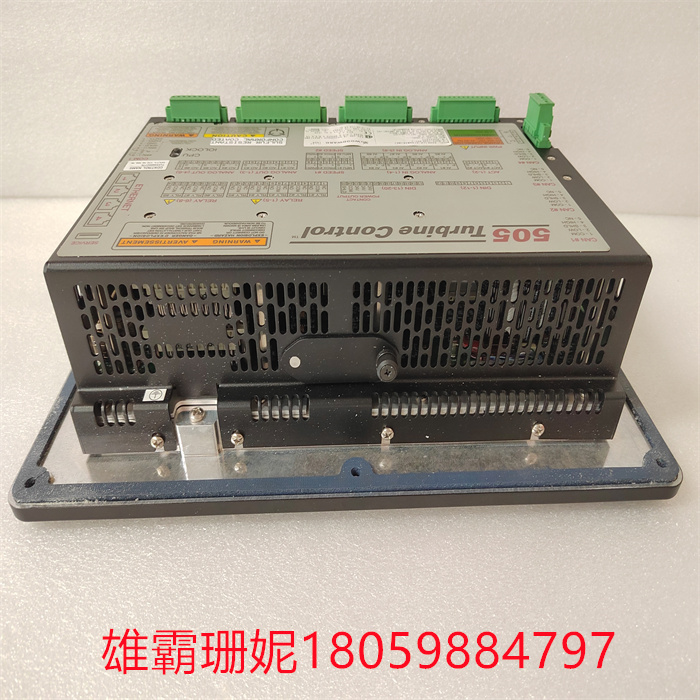

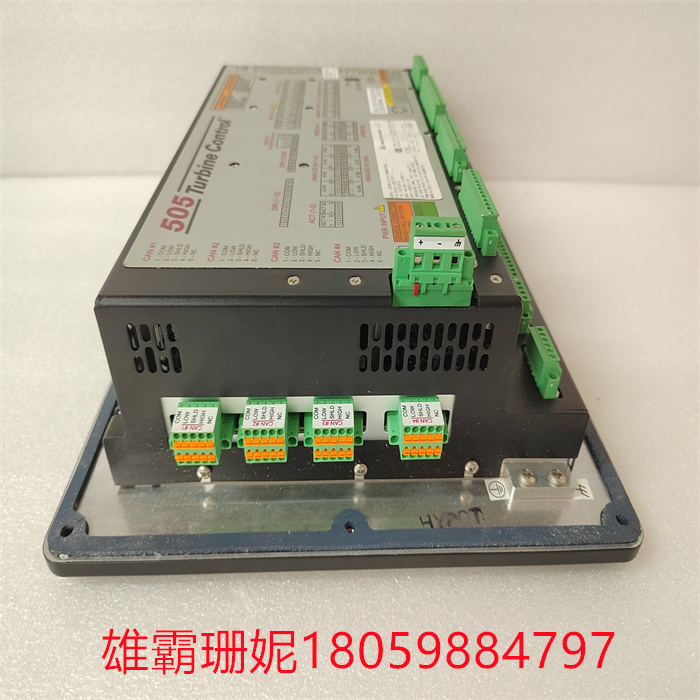

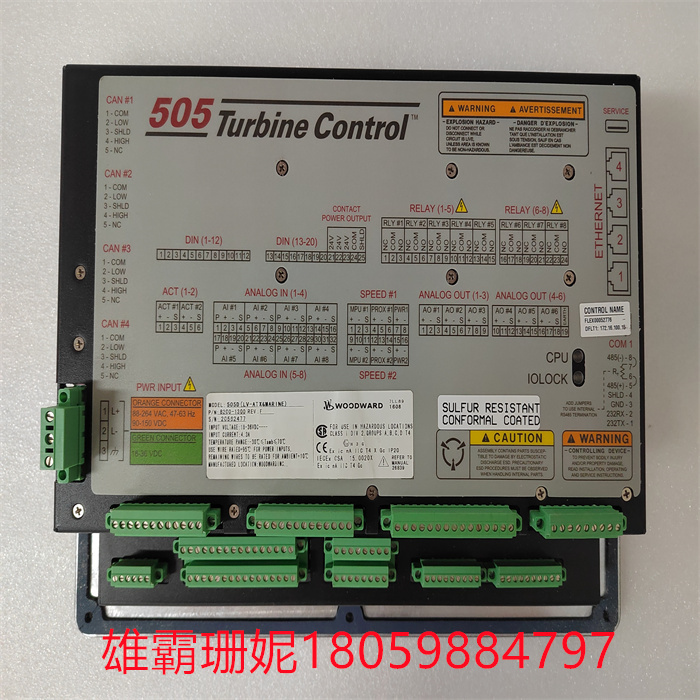

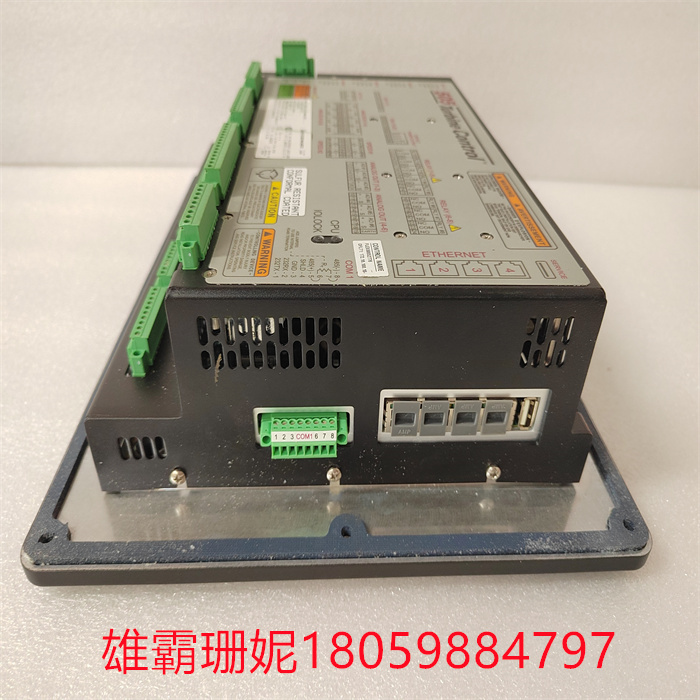

WOODWARD伍德沃德8200-1300控制DCS工控系统数字调速器

WOODWARD伍德沃德8200-1300控制DCS工控系统数字调速器

根据IEC 61000-6-4，辐射射频发射限值为150 kHz至5000 MHz&船舶型式认证。 根据IEC，电力线传导射频发射限值为10 kHz至30 MHz61000-6-4和海上型式认证。

抗扰度EN 61000-6-2和IACS UR E10 根据IEC，对±6 kV触点/±8 kV空气的静电放电（ESD）抗扰度61000-4-2. 根据IEC，80 MHz至3000 MHz的10 V/m辐射射频抗扰度61000-4-3. 输入/输出和电源上±2.0 kV的电气快速瞬变（EFT）抗扰度根据IEC 61000-4-4提供输入。

 ±1.0 kV线路对地直流电源输入的浪涌抗扰度根据IEC 61000-4-5，±0.5 kV线对线。 ±2.0 kV线路对地交流电源输入的浪涌抗扰度±1.0 kV线对线符合IEC 61000-4-5。 根据IEC 61000-4-5，±1.0 kV线路对地I/O的浪涌抗扰度。 根据IEC，150 kHz至80 MHz的10 V（rms）传导射频抗扰度61000-4-6. 额定电源10%时的传导低频注入抗扰度根据船舶型式认证试验，电源输入的电平为50 Hz至12 kHz要求。

According to IEC 61000-6-4, radiofrequency emission limits are 150 kHz to 5000 MHz& Ship type approval. According to the IEC, the power line conducted RF emission limit is 10 kHz to 30 MHz61000-6-4 and maritime type approval.

Immunity EN 61000-6-2 and IACS UR E10 Electrostatic Discharge (ESD) immunity to ±6 kV contacts /±8 kV air according to IEC 61000-4-2. According to the IEC, 10 V/m radiated RF immunity from 80 MHz to 3000 MHz 61000-4-3. Electrical fast transient (EFT) immunity of ±2.0 kV on the input/output and power supply is provided in accordance with IEC 61000-4-4.

Surge immunity of ±1.0 kV line to ground DC power input according to IEC 61000-4-5, ±0.5 kV line to line. The surge immunity of ±2.0 kV line to ground AC power input ±1.0 kV line to line conforms to IEC 61000-4-5. According to IEC 61000-4-5, surge immunity of ±1.0 kV line to ground I/O. According to the IEC, 10 V (rms) conducted RF immunity from 150 kHz to 80 MHz 61000-4-6. Conducted low frequency injection immunity at 10% rated power supply According to the ship type approval test, the power input level is 50 Hz to 12 kHz requirements.
