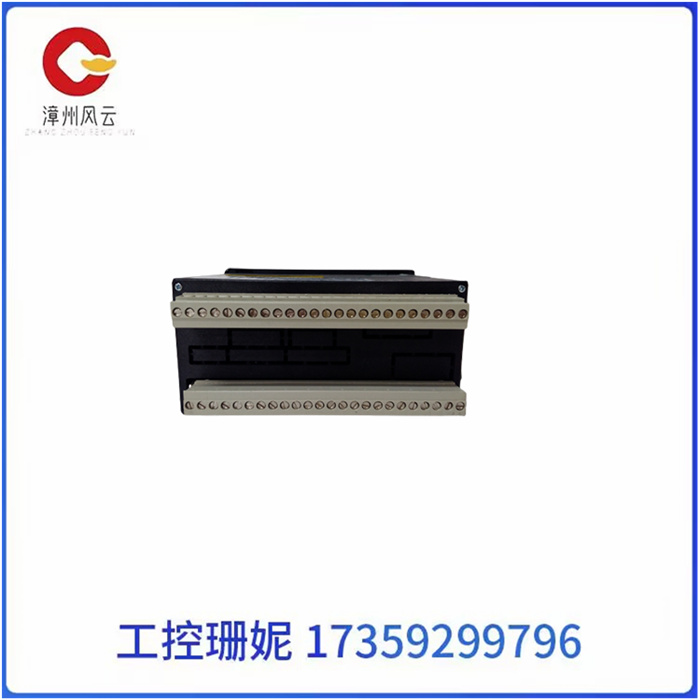

8440-1433 速度控制和自动电压调节器

8440-1433 速度控制和自动电压调节器

8440-1433 速度控制和自动电压调节器

产品描述

该单元是8440-1433，是SPM-D10系列发电机同步器模块的一部分。该系列能够安装到配备伍德沃德设计的速度控制和自动电压调节器的发电机中，或其他仍具有兼容设计的品牌。

8440-1433 具有多种频率和相位匹配功能。该装置能够在电压匹配发生时进行相位匹配或同步滑移频率。该装置能够处理安装到的发电机和所连接的公用总线的两相传感。

在隔离时，8440-1433 能够同时进行电压和频率控制。8440-1433 设计有 DIN 43 700 型 APRANORM 框架的外壳框架。设备的正面防护等级为 IP42，背面的防护等级为 IP21。该装置的尺寸为其尺寸为 144 毫米 x 72 毫米 x 122 毫米。重量约为800克。8440-1433 装置能够测量 40 到 70 赫兹之间的频率，并且需要 18 到 32 伏直流电的电源。标称上，电源应为 24 V/DC。

8440-1433 速度控制和自动电压调节器

Product description

The unit is 8440-1433 and is part of the SPM-D10 series generator synchronizer module. The series can be installed into generators equipped with speed control and automatic voltage regulators designed by Woodward, or other brands that still have compatible designs.

The 8440-1433 features multiple frequency and phase matching functions. The device is capable of phase matching or synchronizing slip frequencies when voltage matching occurs. The device can handle the dual transmission of the installed generator and the connected common bus.

When isolated, the 8440-1433 is capable of both voltage and frequency control. The 8440-1433 is designed with the shell frame of the DIN 43,700 APRANORM frame. The front protection level of the device is IP42, and the back protection level is IP21. The dimensions of the device are 144 mm x 72 mm x 122 mm. It weighs about 800 grams. The 8440-1433 device is capable of measuring frequencies between 40 and 70 Hertz and requires a power supply of 18 to 32 volts of direct current. Nominal power supply should be 24 V/DC.
