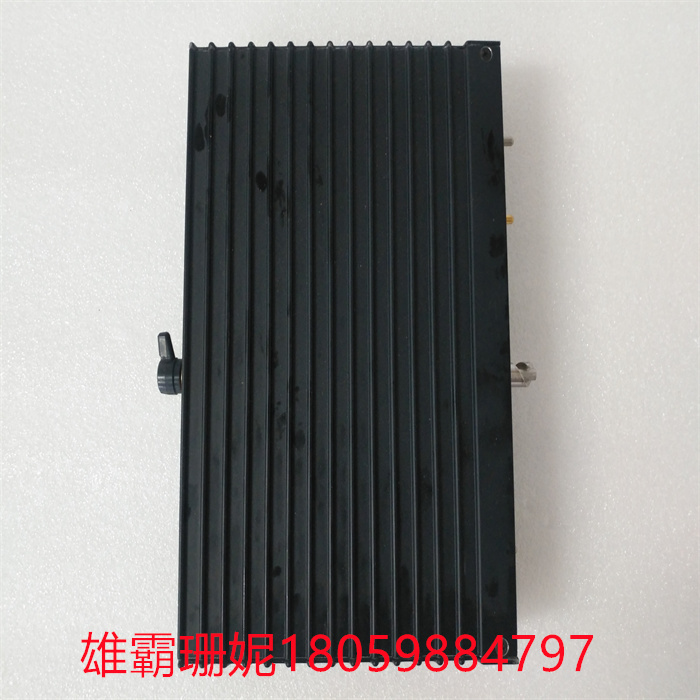

TRICONEX 3101 英维思 Invensys Triconex系统 控制器卡件

TRICONEX 3101 英维思 Invensys Triconex系统 控制器卡件

数字输入模块每个TMR数字输入模块都有三组隔离的电子设备,称为通道，它们独立处理模块的现场数据。每个通道将处理后的数据放在-个数组中，并根据请求将该数组传输到与该通道相关联的MP。

MPs在将数据传递给应用程序之前对其进行表决。DI模块包括每个通道的完整、持续的诊断。如果诊断程序在任何通道上检测到故障，故障指示灯会亮起并激活系统警报。故障指示器识别通道故障,而不是整个模块故障。

DI模块持续验证系统检测向相反状态转变的能力。DI模块保证在出现单个故障时正常运行,并粗在出现多个故障时也能继续正常运行。DI模块支持热备用模块。

Each TMR digital input module has three separate sets of electronics, called channels, that independently process the module's field data. Each channel places the processed data in an array and transfers the array to the MP associated with the channel upon request.

MPs votes on the data before passing it to the application. The DI module includes complete, continuous diagnostics for each channel. If the diagnostic detects a fault on any channel, the fault indicator lights up and activates the system alert. The fault indicator identifies a channel fault, not an entire module fault.

The DI module continuously validates the system's ability to detect transitions to the opposite state. The DI module is guaranteed to operate normally in the event of a single fault, and can continue to operate normally in the event of multiple faults. The DI module supports the hot standby module.
