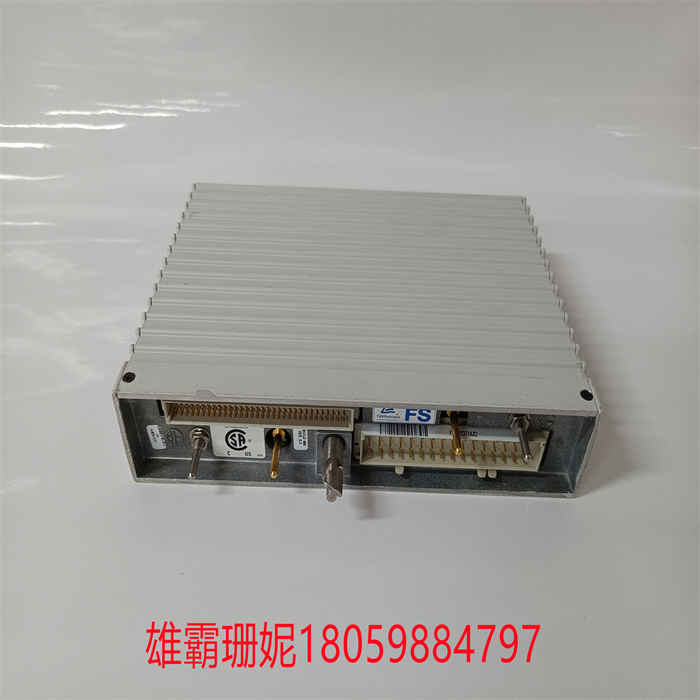

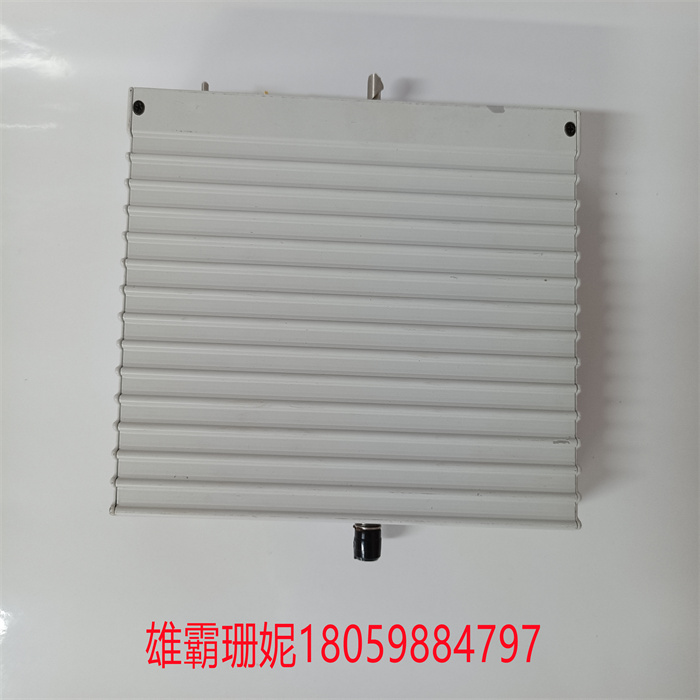

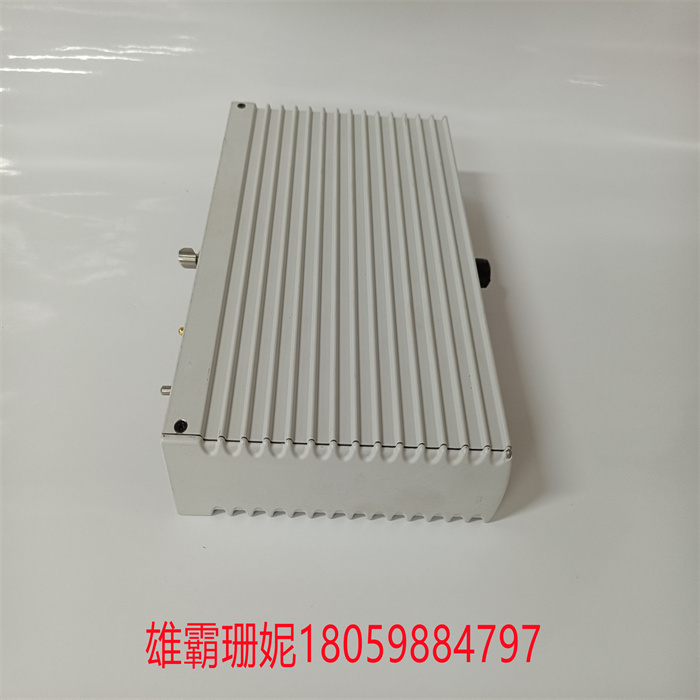

TRICONEX MP3101S2 英维思 脉冲输入模块

TRICONEX MP3101S2 英维思 脉冲输入模块

TRICONEX MP3101S2现场总线是用于实时分布式控制的工业网络系统。这是在制造工厂中连接仪器的一种方式。现场总线的网络结构通常允许菊花链、星形、环形、树枝和树网络拓扑。以前，计算机通过以下方式连接RS-232（串行连接)只有两个设备可以通过它进行通信。

这相当于目前使用的4–20mA通信方案这要求每个设备在控制器级有自己的通信点，而现场总线相当于电流局域网类型的连接，在控制器级别只需要一个通信点，并允许多个(数百个)模拟的和数字的要同时连接的点。这既减少了所需电缆的长度，也减少了所需电缆的数量。

此外，由于通过现场总线通信的设备需要微处理器多个点通常由同一设备提供。一些现场总线设备现在支持控制方案，例如PID控制而不是强迫控制器去做处理。

The TRICONEX MP3101S2 fieldbus is an industrial network system for real-time distributed control. This is a way of connecting instruments in a manufacturing plant. The network structure of a fieldbus typically allows Daisy chain, star, ring, branch, and tree network topologies. Previously, computers were connected to RS-232 (serial connection) in the following way: only two devices could communicate through it.

 This corresponds to the 4-20mA communication scheme currently in use, which requires each device to have its own communication point at the controller level, while the fieldbus corresponds to a current LAN type connection that requires only one communication point at the controller level and allows for multiple (hundreds) analog and digital points to be connected simultaneously.

This reduces both the length and the number of cables required. In addition, since devices communicating over a fieldbus require a microprocessor, multiple points are usually provided by the same device. Some fieldbus devices now support control schemes such as PID control rather than forcing the controller to do the processing.
