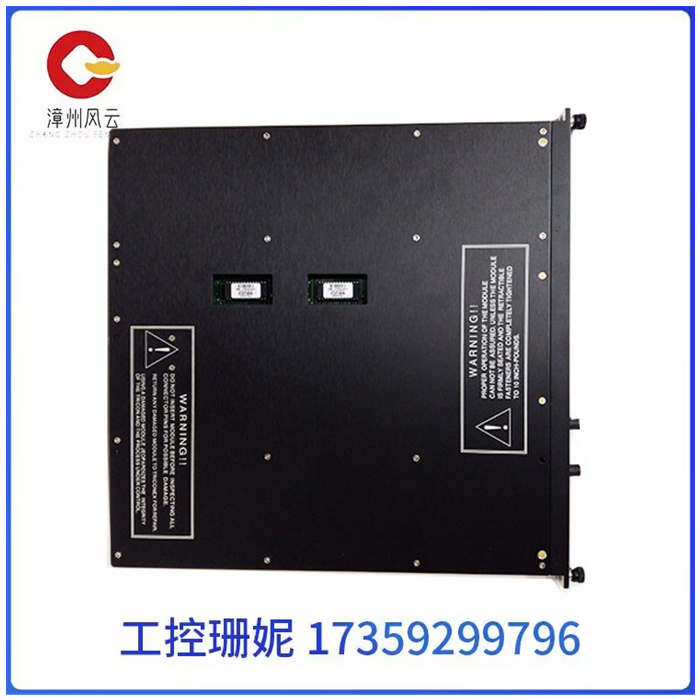

TRICONEX 7400209-010 I/O 模块

TRICONEX 7400209-010 I/O 模块

TRICONEX 7400209-010 I/O 模块

每个康吉森TRICONEX 7400209-010 I/O 模块通过其相关的现场终端组件将信号传入或传出现场。机箱中的两个位置连接在一起作为一个逻辑插槽。第一个位置放置活动I/O 模块，第二个位置放置热备用 I/O 模块。

终端电缆连接到背板的顶部。每个连接都从终端模块延伸到活动和热备用康吉森TRICONEX 7400209-010 I/O 模块。

因此，活动模块和热备用模块都从现场终端接线接收相同的信息。康吉森TRICONEX 7400209-010 I/O 模块，确定输入信号的各自状态，并将值分别放入输入表A，B和C中。

位于相应主处理器模块上的 I/O 通信处理器通过 I/O 总线定期询问每个输入表。

例如，主处理器 A 通过 I/O 总线 A 询问输入表 A。在 TMR 数字输入模块上，所有关键信号路径都 100% 三重复制，以保证安全性和最大可用性。康吉森TRICONEX 7400209-010 I/O 模块每个通道独立调节信号并在磁场和Triconex之间提供隔离。(64 点高密度数字输入模块是一个例外——它没有通道间隔离。)

TRICONEX 7400209-010 I/O 模块

Each Congiesen TRICONEX 7400209-010 I/O module passes signals into or out of the field via its associated field terminal components. Two positions in the case are connected together as a logical slot. The first location houses the active I/O module and the second location houses the hot standby I/O module.

The terminal cable is connected to the top of the backplane. Each connection extends from the terminal module to the active and hot standby Congiesen TRICONEX 7400209-010 I/O module.

Therefore, both the active module and the hot standby module receive the same information from the field terminal wiring. The Congiesen TRICONEX 7400209-010 I/O module determines the respective states of the input signals and places the values into input tables A, B, and C, respectively.

The I/O communication processor located on the corresponding main processor module periodically queries each input table through the I/O bus.

For example, the main processor A queries the input table A through the I/O bus A. On the TMR digital input module, all critical signal paths are 100% triple copied for security and maximum availability. The Congiesen TRICONEX 7400209-010 I/O module independently modulates the signal per channel and provides isolation between the magnetic field and the Triconex. (The 64-point high-density digital input module is an exception - it has no inter-channel isolation.)
