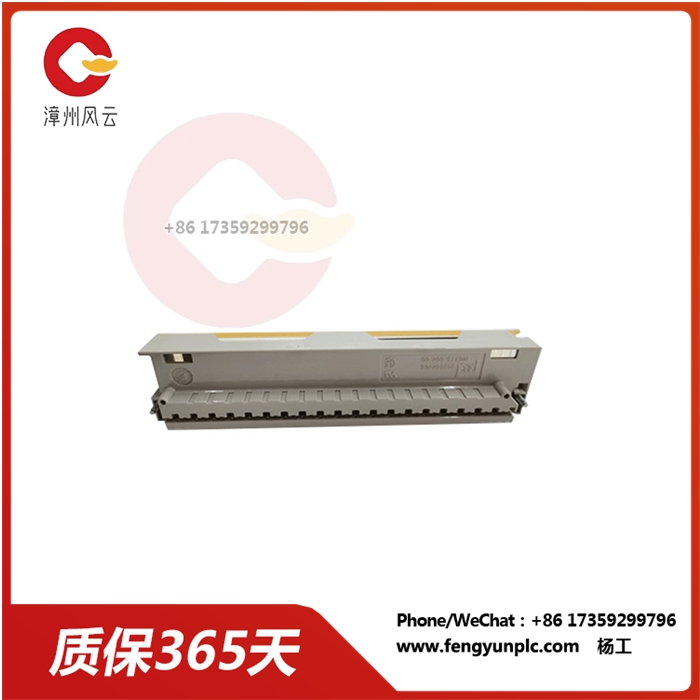

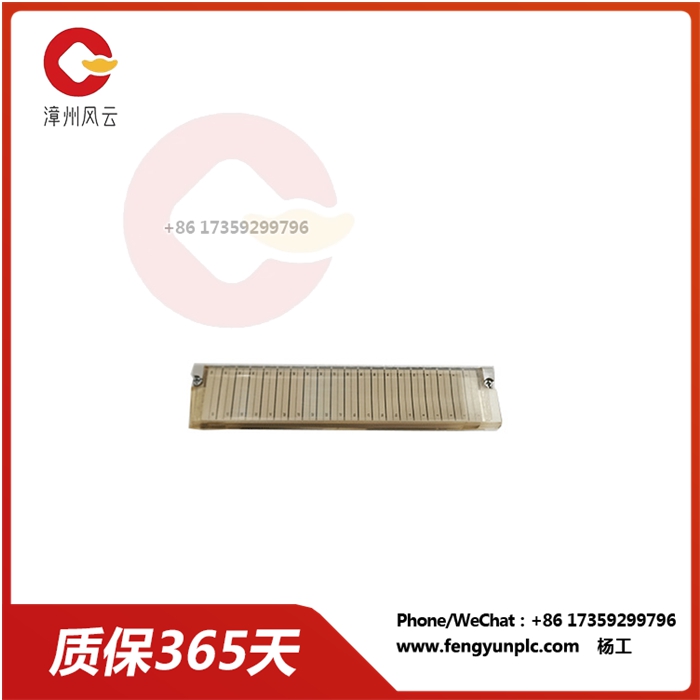

140XTS00200 端子排模块

140XTS00200 端子排模块

概述

140XTS00200 端子排模块是施耐德电气公司生产的一款用于连接电线的模块，通常用于工业自动化和控制系统中。该模块可以将电线连接到 PLC 或其他设备，方便信号传输和控制。

特点

20 个接线端子

每个端子可连接最大 2.5mm² 的电线

支持多种连接方式，包括螺丝连接、弹簧连接和捅入式连接

指示灯：电源指示灯、通道状态指示灯

安装方式：DIN导轨安装

应用

工业控制系统

过程控制系统

监控系统

数据采集系统

其他需要连接电线的应用

技术参数

型号：140XTS00200

额定电压：250V AC/DC

额定电流：10A

接线端子：20 个

连接方式：螺丝连接、弹簧连接、捅入式连接

工作温度：-20°C~+60°C

存储温度：-40°C~+85°C

相对湿度：5%～95%（非凝结）

保护等级：IP20

重量：0.2kg

140XTS00200 端子排模块

summarize

The 140XTS00200 terminal block module is a module produced by Schneider Electric for connecting wires, commonly used in industrial automation and control systems. The module can connect wires to a PLC or other device to facilitate signal transmission and control.

peculiarity

20 terminals

Each terminal can be connected to a maximum of 2.5mm² of wire

Supports a variety of connection modes, including screw connection, spring connection and push-in connection

Indicators: Power indicator and channel status indicator

Mounting method: DIN rail mounting

Apply

Industrial control system

Process control system

Monitoring system

Data acquisition system

Other applications that require wiring

Technical parameter

Model: 140XTS00200

Rated voltage: 250V AC/DC

Rated current: 10A

Wiring terminals: 20

Connection mode: screw connection, spring connection, push-in connection

Operating temperature: -20°C~+60°C

Storage temperature: -40°C to +85°C

Relative humidity: 5% ~ 95% (non-condensing)

Protection level: IP20

Weight: 0.2kg
