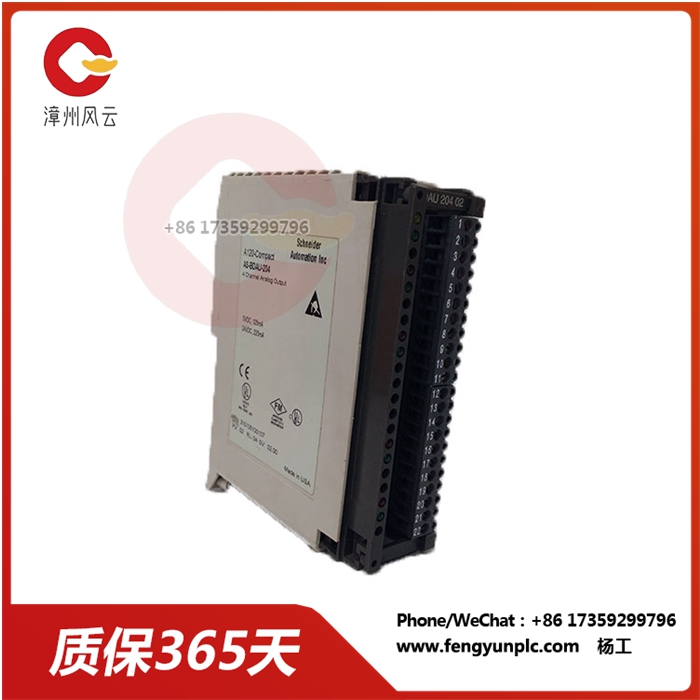

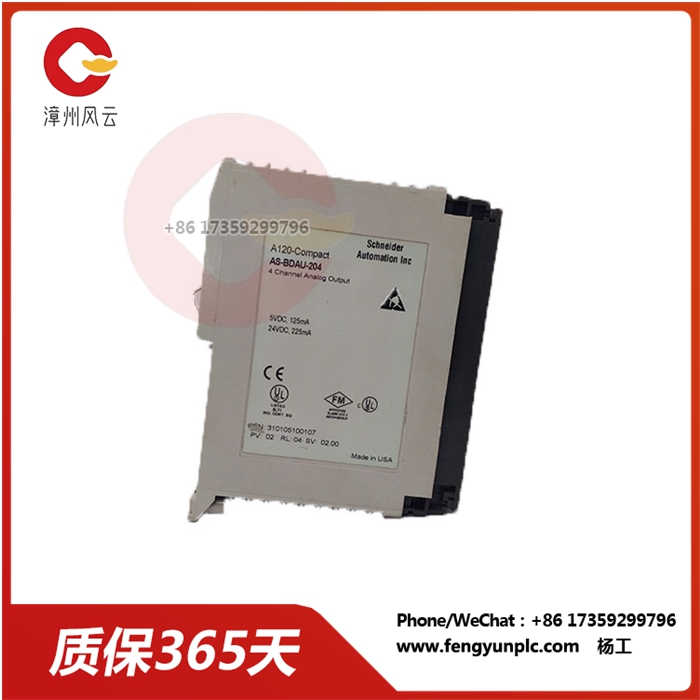

AS-BDAU-204模拟输入输出模块是一款由施耐德电气制造的工业自动化应用中的关键组件。这款模块具有四个通道，能够执行多项任务，如双斜率积分A/D转换，将模拟值转换为12位数字值。这种转换对于工业自动化系统中的精确控制和监测至关重要。

在工业自动化应用中，AS-BDAU-204模块能够与两线制+/- 500 mV传感器现场单元或PT100四线电阻温度检测器现场设备配合使用，实现数据的准确采集和转换。此外，它还可以用于控制可调频率驱动器、定位阀、阻尼器等设备，通过提供电压或电流环路输出来实现精确的控制。

每个通道在AS-BDAU-204模块中都可以独立配置，以适应不同的工业自动化需求。为了正常工作，该模块需要来自外部电源（250mA @ 24VDC）的供电。如果未使用外部电源，模块将从内部总线获取电源，但可能会导致错误的读数，因此在使用时需要注意。

此外，AS-BDAU-204模块还配备了琥珀色LED指示灯，当模块出现故障时，LED会闪烁以指示问题。这一设计有助于及时发现并解决问题，确保工业自动化系统的稳定运行。

总的来说，AS-BDAU-204模拟输入输出模块以其高效、精确和可靠的性能，在工业自动化应用中发挥着重要作用。它能够满足各种复杂和精细的控制需求，提高生产效率，降低维护成本，是工业自动化领域不可或缺的重要组件。

AS-BDAU-204  模拟输入输出模块 工业自动化应用

The AS-BDAU-204 analog input/Output module is a key component in industrial automation applications manufactured by Schneider Electric. The module has four channels and is capable of performing A number of tasks, such as dual slope integration A/D conversion, converting analog values to 12-bit digital values. This conversion is essential for precise control and monitoring in industrial automation systems.

In industrial automation applications, the AS-BDAU-204 module can be used with a two-wire +/ -500 mV sensor field unit or a PT100 four-wire resistance temperature detector field device for accurate data acquisition and conversion. In addition, it can be used to control devices such as adjustable frequency drivers, positioning valves, dampers, etc., to achieve precise control by providing voltage or current loop outputs.

Each channel can be configured independently in the AS-BDAU-204 module to suit different industrial automation needs. In order to function properly, the module requires power from an external power supply (250mA @ 24VDC). If the external power supply is not used, the module will take power from the internal bus, but it may cause false readings, so it needs attention when using.

In addition, the AS-BDAU-204 module is equipped with an amber LED indicator that blinks when the module fails to indicate the problem. This design helps to detect and resolve problems in a timely manner, ensuring the stable operation of industrial automation systems.

Overall, the AS-BDAU-204 analog input/output module plays an important role in industrial automation applications with its efficient, accurate and reliable performance. It can meet a variety of complex and fine control needs, improve production efficiency, reduce maintenance costs, is an indispensable component in the field of industrial automation.
