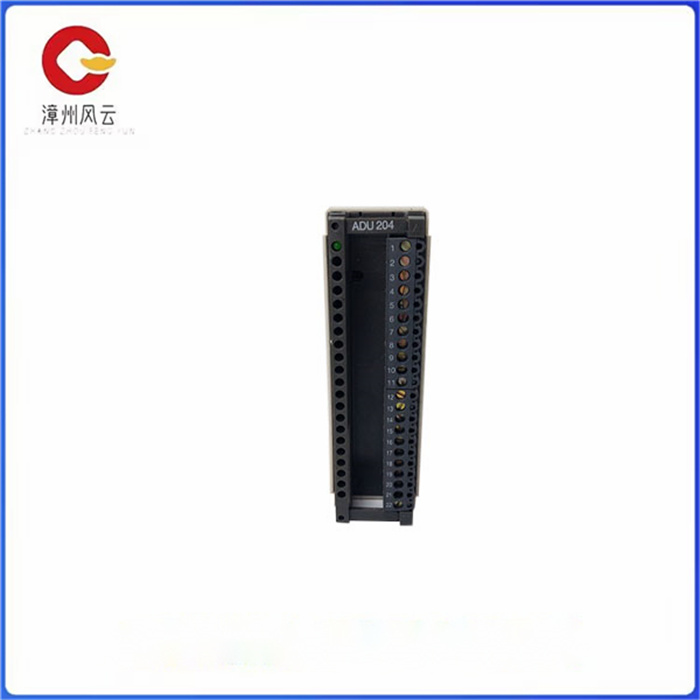

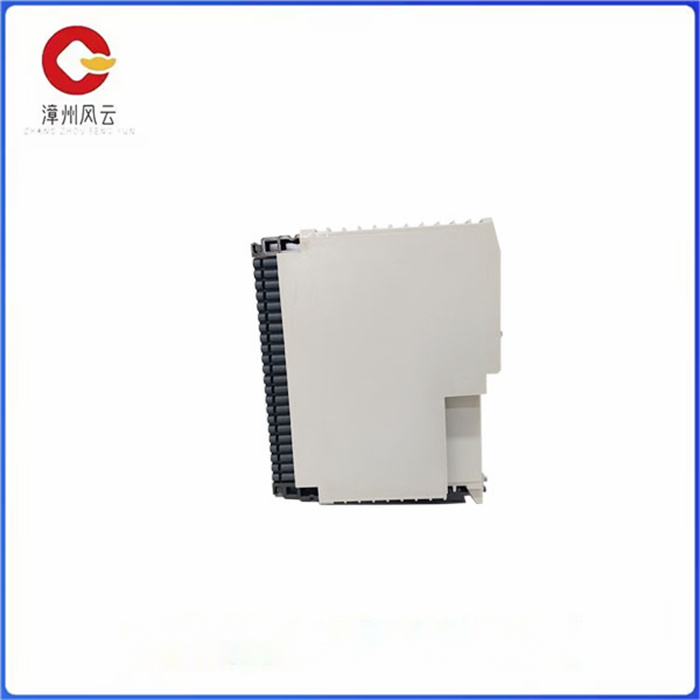

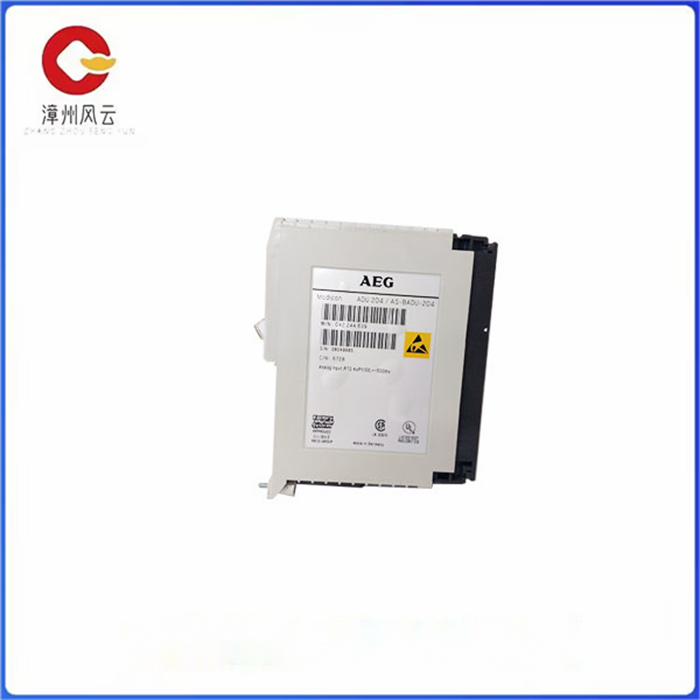

Modicon AS-BDAU-204是由施耐德电气制造的模拟输入模块。该单元有四个通道，没有光隔离。它执行多项任务，包括双斜率积分A/D转换，将模拟值转换为12位数字值。这是针对建议的范围完成的。您可以将 Modicon AS-BDAU-204 与两线制 +/- 500 mV 传感器现场单元或 PT100 四线电阻温度检测器现场设备配合使用。这些产品在法国制造，专为物料搬运、包装和纺织机械使用而设计。它们提供MRO电气的2年保修。我们还提供来自其他制造商的I / O模块，如Modicon和ABB。

特征

现场布线

对于 ASBDAU204 配置，使用 60/75 铜 （Cu） 进行电源连接，使用 4.5 英寸磅。固定螺钉的扭矩。为防止现场设备操作出错，请遵循以下准则：

使用屏蔽双绞线电缆（如百通 9418）。

仅在DAU 204上接地每根信号电缆的屏蔽层。在每根信号电缆的另一端，剥离屏蔽层并使其与信号传输线绝缘。

尽可能远离电气噪声源（如电机、变压器、接触器，尤其是交流设备）布线每根信号电缆。

在不同于交流电缆和电源线的导管中布线信号电缆。

如果信号电缆必须穿过交流电缆或电源线，请确保它们以直角交叉。

将现场设备连接到模块时，保持信号传输线的非屏蔽部分尽可能短。

接线端子后，请使用随附的钥匙防止接线端子被意外切换。

优势

Modicon AS-BDAU-204 是一款 4 通道模拟输出模块，设计用于控制可调频率驱动器、定位阀、阻尼器等。每个通道均可独立配置，以提供电压或电流环路输出。

为了正常工作，模块需要来自外部电源（250mA @ 24VDC）的电源。当不使用外部电源时，模块从内部总线获取电源并给出错误的读数。请勿将此模块在机架中未通电。

ASBDAU204 模块具有开路电流回路（断线）检测功能，并通过 LED 和可访问寄存器发出警告。ASBDAU204可以配置为在与CPU的通信丢失超过1秒，CPU停止或断电时保持最后一个值。

模块前面有一个琥珀色 LED，闪烁指示模块故障。模块前方顶部的绿色 LED 指示模块准备就绪。当数据通过通道发送时，每个通道上的绿色 LED 将保持亮起或快速闪烁。在

电流模式 每个通道上的红色 LED 表示检测到开路电流环路（断线）或高环路阻抗 （>500Ω）。
