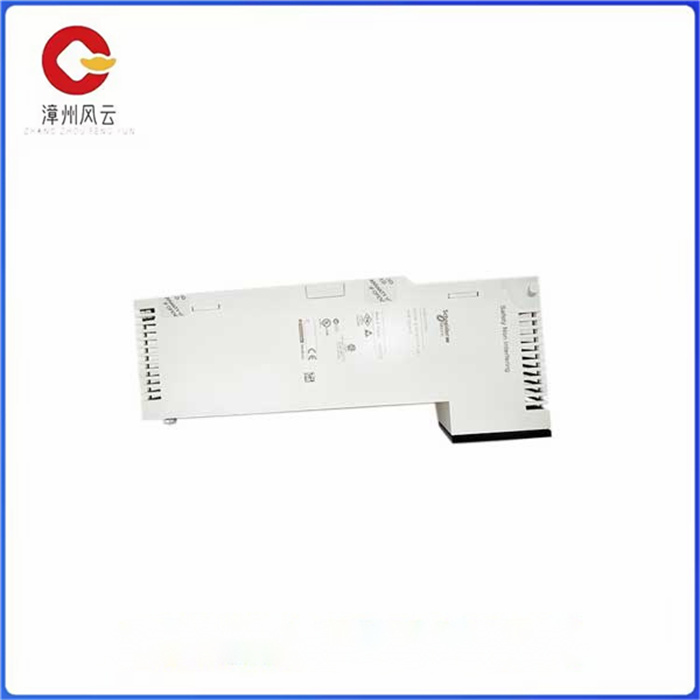

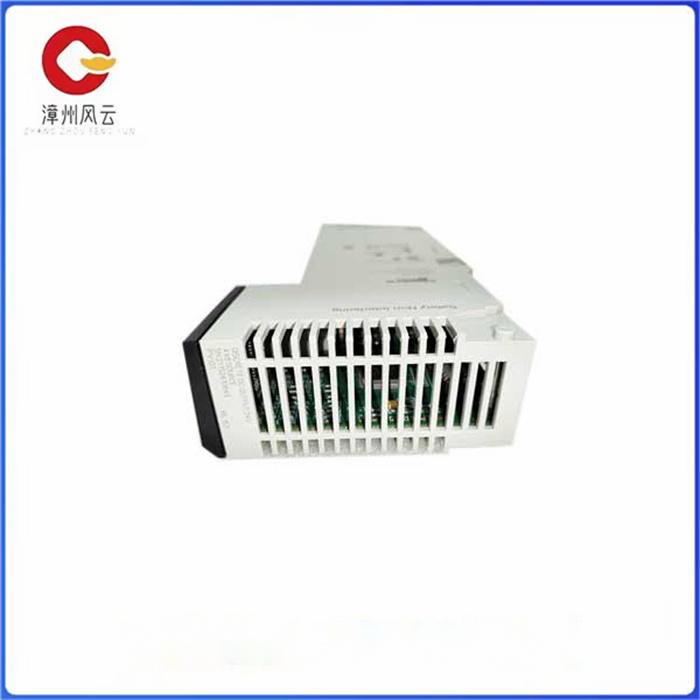

140DDO35300 离散量输出模块 32个固态输出

140DDO35300 离散量输出模块 32个固态输出

施耐德电气 140 DDO 35300 用于切换 24 VDC 电源负载。140 DDO 35300 DC 输出 24 VDC 4 x 8 源模块与什么一起使用？它适用于公共接线至 0 V 的共享输出。该模块化单元有 32 个输出，即八 （8） 组，每组四 （4） 个输出点。该模块的逻辑电平为真高，外部功率范围为 19.2 ...30 伏直流电。140 DDO 35300 的功率分配为 1.75 W + 0.4 V x 总模块负载电流。Modicon 140 DDO 35300所需的总线电流为330 mA。它采用输出熔断保险丝故障检测和现场功率损失。

施耐德电气 140 DDO 35300 的最大工作电压为 19.2 ...30 VDC，而 56 ms 衰减脉冲的最大绝对电压为 1 VDC。导通状态压降为 0.4 VDC @ 0.5 A。

Modicon 4 DDO 140 的 35300 个点中每个点的最大负载电流为 0.5 A，8 组中每个组的最大负载电流为 4 A。模块的最大负载电流为 16 A。140 DDO 35300 输出模块每个点的最大浪涌电流为 5 mA @ 500 ms（每分钟不超过 6 次）。它的关断状态漏点为 0.4 mA @ 30 VDC。

优势

施耐德电气 140 DDO 35300 在 500 VAC RMS 下具有组间隔离 1 分钟，组到总线 1780 VAC RMS 隔离 1 分钟。该Modicon量子单元具有内部瞬态电压抑制输出保护。

Modicon Quantum 140 DDO 35300 具有 LED 指示灯，用于指示输出模块上的重要功能。其中一些 LED 描述包括存在总线通信时的绿色活动。如果检测到模块外部的错误，则会出现红色 F 错误 LED。对于 32 个输出中的每一个，当通道或点打开时，将建立一个绿色指示灯 LED。

140DDO35300 离散量输出模块 32个固态输出

The Schneider Electric 140 DDO 35300 is used to switch 24 VDC power loads. 140 DDO 35300 DC Output 24 VDC 4 x 8 Source module is used with what? It is suitable for shared outputs with common wiring up to 0V. The modular unit has 32 outputs, i.e., eight (8) sets of four (4) output points each. The module has a really high logic level and an external power range of 19.2... 30 volts direct current. The power distribution of the 140 DDO 35300 is 1.75 W + 0.4 V x total module load current. The required bus current for the Modicon 140 DDO 35300 is 330 mA. It uses output for fusible fuse failure detection and field power loss.

The Schneider Electric 140 DDO 35300 has a maximum operating voltage of 19.2... 30 VDC, while the maximum absolute voltage of the 56 ms attenuated pulse is 1 VDC. The on-state voltage drop is 0.4 VD@0.5 A.

The Modicon 4 DDO 140 has A maximum load current of 0.5 A at each of the 35,300 points and 4 A at each of the eight sets. The maximum load current of the module is 16 A. The maximum inrush current at each point of the 140 DDO 35300 output module is 5 mA @ 500 ms (not more than 6 times per minute). Its off state leakage point is 0.4 mA @ 30 VDC.

advantage

The Schneider Electric 140 DDO 35300 features 1 minute intergroup isolation at 500 VAC RMS and 1 minute intergroup to bus isolation at 1780 VAC RMS. The Modicon quantum unit has an internal transient voltage suppression output protection.

The Modicon Quantum 140 DDO 35300 features LED indicators to indicate important functions on the output module. Some of these LED descriptions include green activity in the presence of bus communication. If an error outside the module is detected, a red F error LED appears. For each of the 32 outputs, a green indicator LED will be established when the channel or point is opened.
