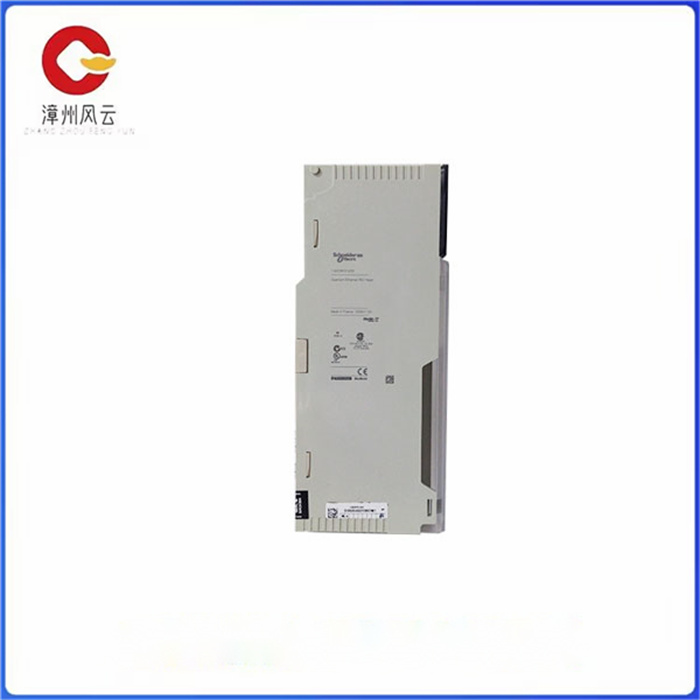

在本地机架上只能配置一个140 CRP 312 00模块。此模块具有与网络上的以太网远程I/0 设备进行通讯的接口。通过 140 CRP 312 00 模块，PLC可以连接到以太网网络，并与以太网远程I/0子站中的模块进行确定性Ⅰ/0交换。140 CRP 312 00模块仅用于管理远程I/0 设备。140 CRP 312 00模块的其他服务有:·此模块使用RSTP启用主环路上的所有远程Ⅰ/0设备，50毫秒内即可从通讯中断中恢复。

·此模块可为多达31个远程I/0设备的子站上的I/0模块的IP参数和配置进行配置。

·此模块提供通讯路径(通过互连)，以允许分布式I/0 和控制网络通讯量参与远程I/0 网络。

·此模块支持热备功能。在进行切换时，主140 CRP 312 00模块与备用140 CRP 312 00模块不会交换它们的IP地址。

外部端口

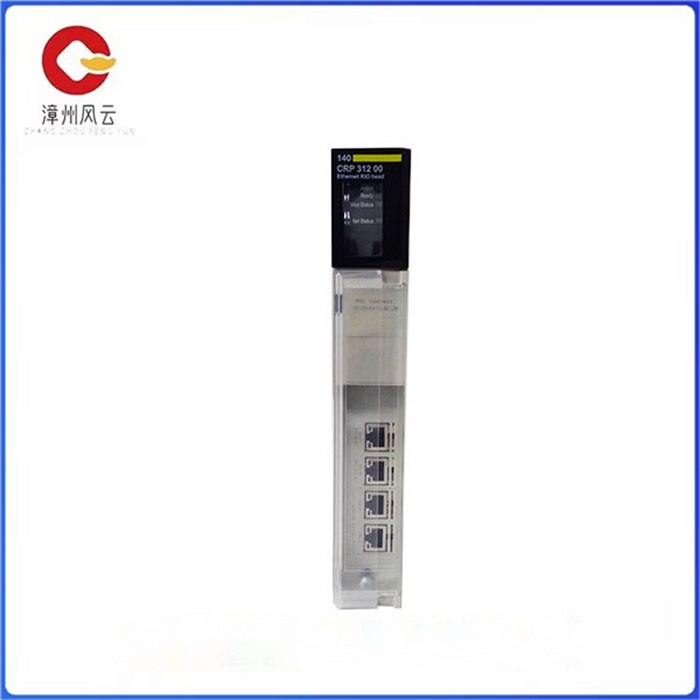

140 CRP 312 00模块根据连接到网络中的链路来监控网络链路的功能。此模块有4个外部端口(但只有1个IP地址):SERVICE端口:通过SERVICE 端口可对以太网端口进行诊断，并提供对外部工具和设备(Unity Pro、ConneXview、HMI等)的访问。此端口支持以下模式:·访问端口(缺省):此模式支持以太网通讯。·端口镜像:在此模式下，会将其他3个端口的一个或多个端口的数据通讯量复制到此端口。这样可使用连接的工具监控和分析端口通讯量。·已禁用注意;

·请勿将速度超过100 Mbps的设备连接至SERVICE端口。如果将设备的速度配置为超过100Mbps ，则可能无法通过ERVICE端口在设备与模块之间建立以太网链路。

·无论在线或离线都可以配置SERVICE端口。

·在端口镜像模式中，SERVICE端口的操作方式类似于只读端口。即，无法通过SERVICE端口访问设备(ping 、与 Unity Pro的连接等)。

140CRP31200 用于量子的以太网RIO头配置 允许PLC连接网络

Only one 140 CRP 31200 module can be configured on the local rack. This module has an interface to communicate with Ethernet remote I/0 devices on the network. With the 140 CRP 31200 module, the PLC can connect to the Ethernet network and perform deterministic I/0 exchange with the modules in the Ethernet remote I/0 sub-station. The 140 CRP 312 00 module is only used to manage remote I/0 devices. 140 Other services of the CRP 312 00 module are :· This module uses RSTP to enable all remote I /0 devices on the main loop and recover from communication interruptions within 50 milliseconds.

This module can configure IP parameters and configurations for I/0 modules on sub-stations of up to 31 remote I/0 devices.

This module provides a communication path (via interconnect) to allow distributed I/0 and control network traffic to participate in remote I/0 networks.

· This module supports hot spare function. When switching, the primary 140 CRP 312 00 module and the standby 140 CRP 312 00 module do not exchange their IP addresses.

External port

140 The CRP 312 00 module monitors the function of network links according to the links connected to the network. This module has 4 external ports (but only 1 IP address):SERVICE port: Through the SERVICE port, you can diagnose Ethernet ports and provide access to external tools and devices (Unity Pro, ConneXview, HMI, etc.). This port supports the following modes :· Access Port (default): This mode supports Ethernet communication. · Port mirroring: In this mode, the data traffic of one or more of the other three ports is copied to this port. This allows port traffic to be monitored and analyzed using connected tools. · Disabled attention;

· Do not connect devices with speeds exceeding 100 Mbps to the SERVICE port. If the speed of the device is configured to exceed 100Mbps, it may not be possible to establish an Ethernet link between the device and the module through the ERVICE port.

· SERVICE ports can be configured online or offline.

· In port mirroring mode, a SERVICE port operates like a read-only port. That is, the device cannot be accessed through the SERVICE port (ping, connection to Unity Pro, etc.).
