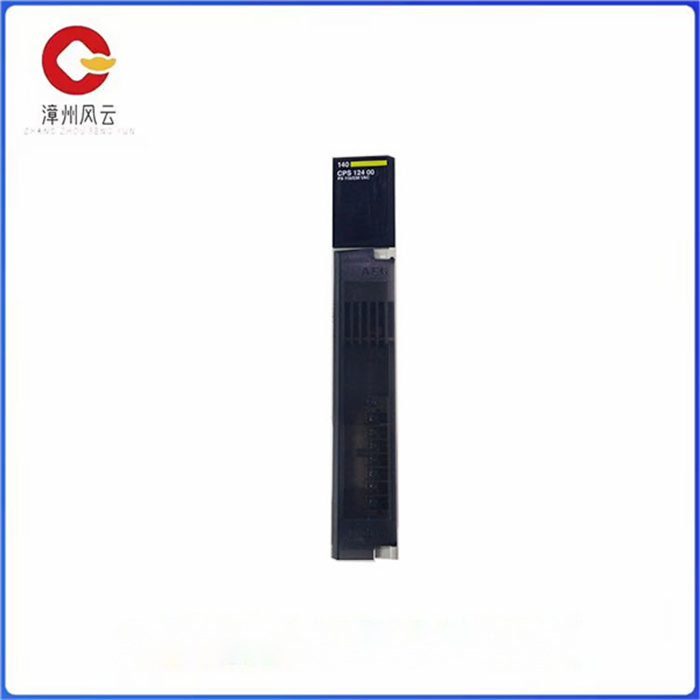

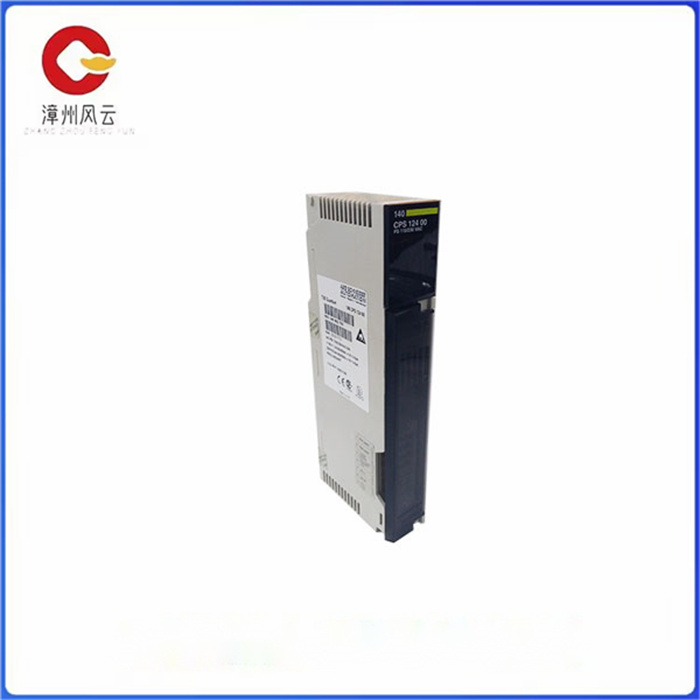

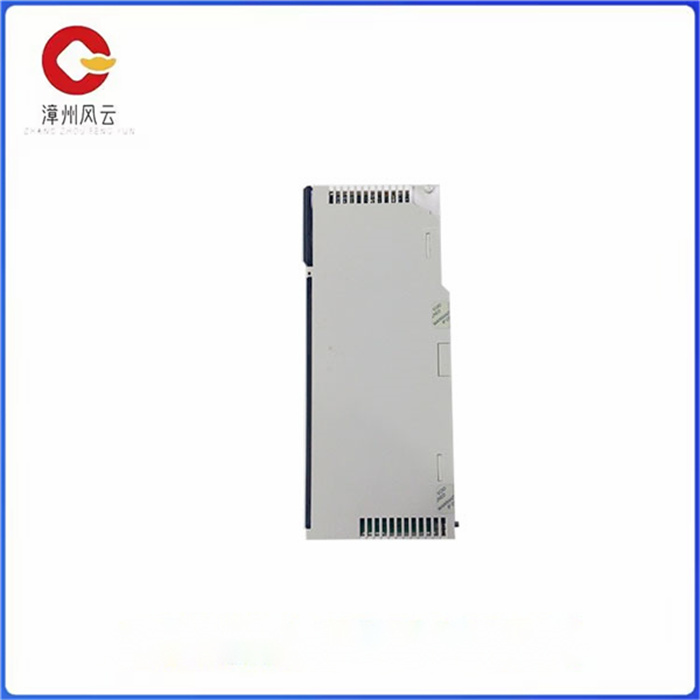

140CPS12400 140系列通讯,总线模块处理器电源模块

140CPS12400 140系列通讯,总线模块处理器电源模块

详情参数：

该模块是一个REDUNDANT单元，具有115/230 VAC和50/60 Hz，独立最大电流为8 A，两个模块的独立最大电流为16 A 。

该模块可用于多种配置，具有三种电源操作模式可供选择：独立模式、独立可累加模式和独立冗余模式 。

独立模式用于3 A或8 A配置，不需要容错能力或冗余能力，而独立可累加模式用于需要比一个模块的额定电流更大的配置。在同一Modicon Quantum机架上可以安装两个可累加电源模块。独立冗余模式用于需要无间断系统运行的配置，需要在机架中插入两个冗余电源模块 。

该模块的输入电压为93…138伏交流电和170伏交流电…276伏交流电，输入频率为47…63赫兹。该模块的输入电流为115伏交流电时1.1安，230伏交流电时0.6安。模块的输入电压总谐波失真小于基波有效值的10% 。

Schneider 140CPS12400可用于物料处理、包装和纺织机器 。

140CPS12400 140系列通讯,总线模块处理器电源模块

Details parameters:

The module is A REDUNDANT unit with 115/230 VAC and 50/60 Hz with an independent maximum current of 8 A and an independent maximum current of 16 A for both modules.

The module can be used in a variety of configurations, with three power operation modes to choose from: independent mode, independent accumulable mode and independent redundant mode.

The standalone mode is used in 3 A or 8 A configurations and does not require fault tolerance or redundancy, while the standalone accumulable mode is used in configurations that require greater current rating than one module. Two accumulable power modules can be installed in the same Modicon Quantum rack. The independent redundancy mode applies to the configuration that requires uninterrupted system operation. Two redundant power modules need to be inserted into the rack.

The input voltage of the module is 93... 138 volts AC and 170 volts AC... 276 volts AC, input frequency 47... 63 Hertz. The input current of the module is 1.1 A at 115 V AC and 0.6 A at 230 V AC. The total harmonic distortion of the input voltage of the module is less than 10% of the effective value of the fundamental wave.

The Schneider 140CPS12400 can be used in material handling, packaging and textile machines.
