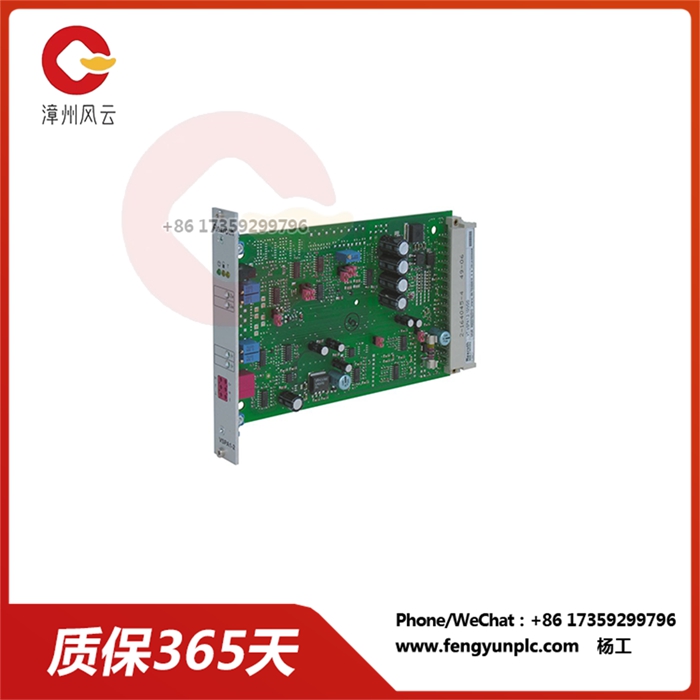

VT-VSPA1-11-B 比例阀放大器控制

VT-VSPA1-11-B 比例阀放大器控制

VT-VSPA1-11-B 比例阀放大器控制

主要特点

比例控制：提供阀门的比例控制，实现精确和准确的流量调节。

高精度：提供高精度和可重复性，确保始终如一的流量控制性能。

紧凑型设计：采用紧凑而坚固的设计，便于在狭窄空间内安装。

用途广泛：适用于需要按比例控制液压或气动流量的各种应用。

组件和操作

VT-VSPA1-11-B 由几个关键组件组成：

输入电路：接收来自控制系统的电输入信号，通常是电压或电流信号。

信号处理：处理输入信号以生成比例控制信号。

功率放大器：放大控制信号，为驱动阀门提供足够的功率。

电磁阀：控制流向阀门执行器的液压或气动流体。

反馈机制：监控阀门位置并向控制系统提供反馈。

操作：

输入信号：控制系统向 VT-VSPA1-11-B 发送电输入信号。

信号处理：对输入信号进行处理并转换为比例控制信号。

功率放大：控制信号被放大，为驱动阀门提供足够的动力。

阀门驱动：放大的控制信号为电磁阀通电，控制流向阀门执行器的液压或气动流体。

阀门运动：阀门执行器移动，调节阀门位置并调节流量。

反馈循环：反馈机构监控阀门位置并向控制系统提供反馈，确保准确稳定的控制。

应用

VT-VSPA1-11-B 比例电子管放大器可用于各种工业自动化系统，特别是那些涉及：

液压或气动流量控制：在各种应用中精确控制液压或气动流体的流量，比如机床，液压机，和气动执行器。

过程控制系统：调节过程控制系统中的流速，如化学加工，食品和饮料生产，和环境控制。

运动控制系统：控制运动控制系统中执行器的运动，比如机器人，数控机床，和自动化装配线。

测试和测量设备：精确控制测试和测量设备的流速，如水力试验台和流量计。

能源效率应用：通过精确控制暖通空调系统和流体动力系统等系统中的流速来优化能耗。

总体而言，VT-VSPA1-11-B 比例阀放大器在工业自动化系统中发挥着至关重要的作用，能够精确可靠地控制液压和气动流量，适用于各种应用。

VT-VSPA1-11-B 比例阀放大器控制

Main feature

Proportional control: Provides proportional control of valves to achieve precise and accurate flow regulation.

High accuracy: Provides high accuracy and repeatability to ensure consistent flow control performance.

Compact design: A compact yet robust design for easy installation in confined Spaces.

Wide range of uses: Suitable for a variety of applications requiring proportional control of hydraulic or pneumatic flow.

Components and operations

The VT-VSPA1-11-B consists of several key components:

Input circuit: Receives electrical input signals from the control system, usually voltage or current signals.

Signal processing: Processing input signals to generate proportional control signals.

Power amplifier: amplifies the control signal to provide sufficient power to drive the valve.

Solenoid valve: Controls the flow of hydraulic or pneumatic fluid to the valve actuator.

Feedback mechanism: Monitor valve position and provide feedback to the control system.

Controls:

Input signal: The control system sends an electrical input signal to VT-VSPA1-11-B.

Signal processing: The input signal is processed and converted into a proportional control signal.

Power amplification: The control signal is amplified to provide sufficient power to drive the valve.

Valve drive: An amplified control signal energizes the solenoid valve and controls the flow of hydraulic or pneumatic fluid to the valve actuator.

Valve movement: The valve actuator moves, adjusting the valve position and regulating the flow rate.

Feedback loop: The feedback mechanism monitors the valve position and provides feedback to the control system to ensure accurate and stable control.

Apply

VT-VSPA1-11-B proportional tube amplifiers can be used in a variety of industrial automation systems, especially those involving:

Hydraulic or pneumatic flow control: Precisely control the flow of hydraulic or pneumatic fluids in a variety of applications, such as machine tools, hydraulic presses, and pneumatic actuators.

Process control systems: Regulate flow rates in process control systems such as chemical processing, food and beverage production, and environmental control.

Motion control systems: Control the movement of actuators in motion control systems, such as robots, CNC machine tools, and automated assembly lines.

Test and measurement equipment: Precisely control the flow rate of test and measurement equipment, such as hydraulic test stands and flowmeters.

Energy Efficiency applications: Optimize energy consumption by precisely controlling flow rates in systems such as HVAC systems and fluid power systems.

Overall, the VT-VSPA1-11-B proportional valve amplifier plays a vital role in industrial automation systems, enabling accurate and reliable control of hydraulic and pneumatic flow rates for a wide range of applications.
