MVI69E-MBTCP Modbus TCP/IP增强型通信模块

MVI69E-MBTCP Modbus TCP/IP增强型通信模块

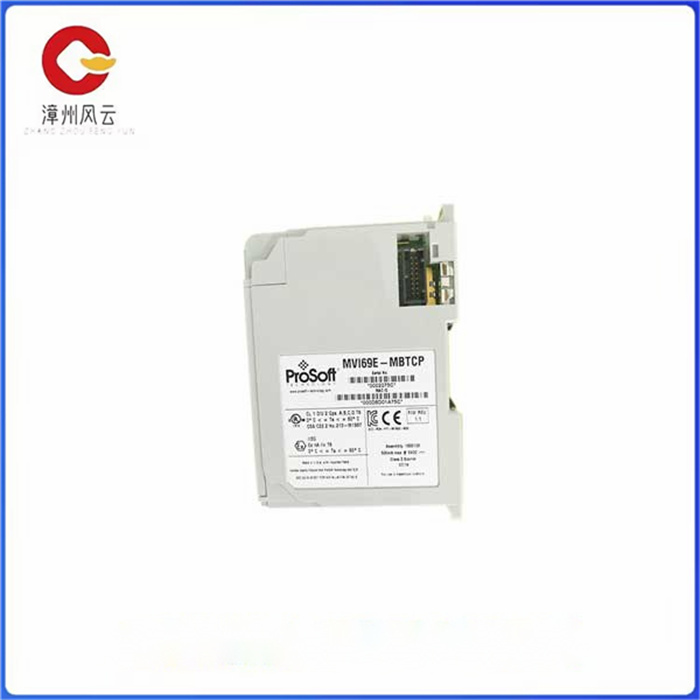

MVI69E-MBTCP是一种Modbus TCP/IP增强型通信模块。它必须与兼容电源一起安装，并且在CompactLogix机架中至少有一(1)个空闲插槽。

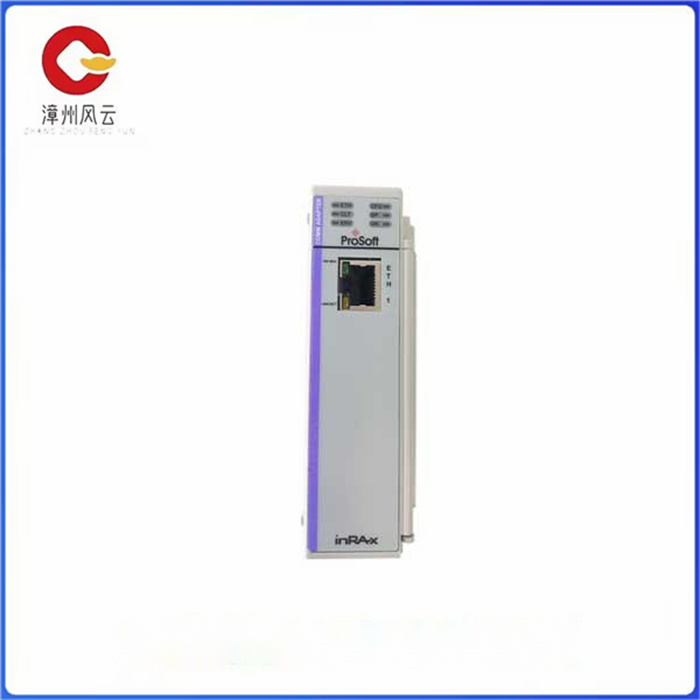

MVI69E-MBTCP的电源距离额定值为4。与CompactLogix 1769-L43和1769-L45一起使用时，将MVI69E-MBTCP安装在1769总线的前两(2)个插槽上。MVI69E-MBTCP配有一(1)个RJ45通信端口，支持10/100 Base-T以太网数据速率。它还要求使用ProSoft配置生成器和ProSoft发现服务。

MVI69E-MBTCP支持客户端和服务器连接。它可用于连接各种支持MODBUS的设备。它的I/O大小为60/120/240 – 16位整数，有10，000个字的可用数据。它支持浮点数据移动，也支持Enron、Daniel和其他浮点数据实现。它支持MODBUS功能，如1:读取线圈状态；2:读取输入状态；3:读取保持寄存器；4:读取输入寄存器；5:强制(写)单线圈；6:预置(写)单保持寄存器；8:诊断(仅从机，响应子功能00)；15:强制(写)多个线圈；16:预置(写)多个保持寄存器；17:报告从ID(仅从)；22:屏蔽写保持寄存器(仅从机)和23:读/写保持寄存器(仅从机)。

该模块装运时设置跳线关闭。用作Modbus TCP/IP网络之间的输入和输出通信模块。MVI69E-MBTCP可与MODBUS兼容设备通信，也可作为总线网络和CompactLogix背板之间的通信模块。建议用于以太网连接的电缆为5类或更高级别。Prosoft Technologies MVI69E-MBTCP Modbus TCP/IP增强型通信模块的最佳性能的推荐条件是0至60摄氏度的工作温度和5至95%的相对湿度。Prosoft Technologies mvi 69 e-MB TCP Modbus TCP/IP增强型通信模块提供LED指示灯，显示模块状态、背板活动、以太网端口活动和配置。该模块需要安装在机架上，安装后，用户需要检查模块是否足够安全，以避免将模块集成到系统中时出现问题

MVI69E-MBTCP Modbus TCP/IP增强型通信模块

MVI69E-MBTCP is a Modbus TCP/IP enhanced communication module. It must be installed with a compatible power supply and have at least one (1) free slot in the CompactLogix rack.

The MVI69E-MBTCP has a power distance rating of 4. When used with CompactLogix 1769-L43 and 1769-L45, the MVI69E-MBTCP is installed in the first two (2) slots of the 1769 bus. The MVI69E-MBTCP is equipped with one (1) RJ45 communication port and supports 10/100 Base-T Ethernet data rates. It also requires the use of ProSoft configuration Generator and ProSoft Discovery service.

MVI69E-MBTCP supports client and server connections. It can be used to connect various Modbus-enabled devices. It has an I/O size of 60/120/240-16-bit integer with 10,000 words of data available. It supports floating point data movement, as well as Enron, Daniel, and other floating point data implementations. It supports MODBUS functions, such as 1: read coil status; 2: read the input status; 3: Read hold register; 4: read the input register; 5: Force (write) a single coil; 6: Preset (write) single hold register; 8: Diagnosis (slave only, response sub-function 00); 15: Force (write) multiple coils; 16: preset (write) multiple hold registers; 17: Report from ID(only from); 22: Mask the write hold register (slave only) and 23: read/write hold register (slave only).

The jumper is set off when the module is shipped. Used as an input and output communication module between Modbus TCP/IP networks. The MVI69E-MBTCP can communicate with MODBUS compatible devices and can also be used as a communication module between the bus network and the CompactLogix backplane. It is recommended that the cables used for Ethernet connections be of Class 5 or higher. Prosoft Technologies MVI69E-MBTCP Modbus The recommended conditions for optimum performance of TCP/IP enhanced communication modules are an operating temperature of 0 to 60 degrees Celsius and a relative humidity of 5 to 95%. Prosoft Technologies mvi 69 e-MB TCP Modbus The TCP/IP enhanced communication module provides LED indicators that show module status, backplane activity, Ethernet port activity, and configuration. The module must be installed on the rack. After the installation, you need to check whether the module is secure enough to avoid problems when integrating the module into the system
