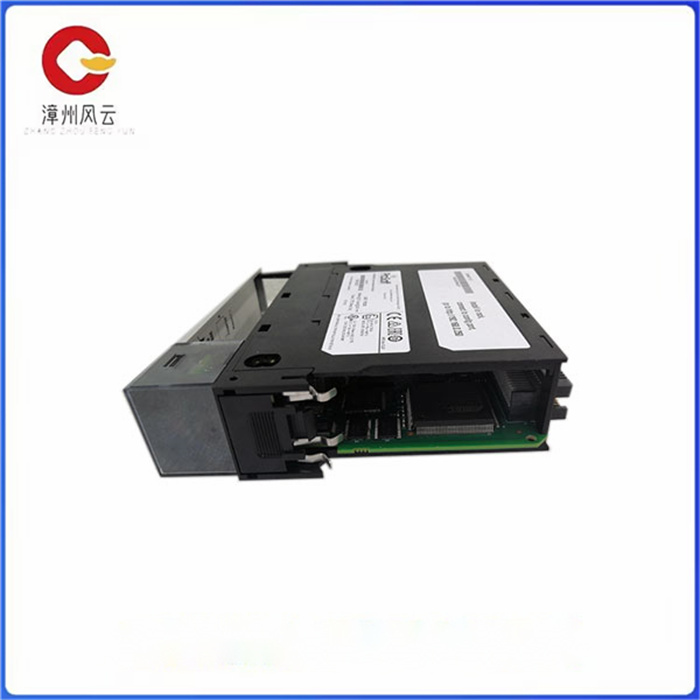

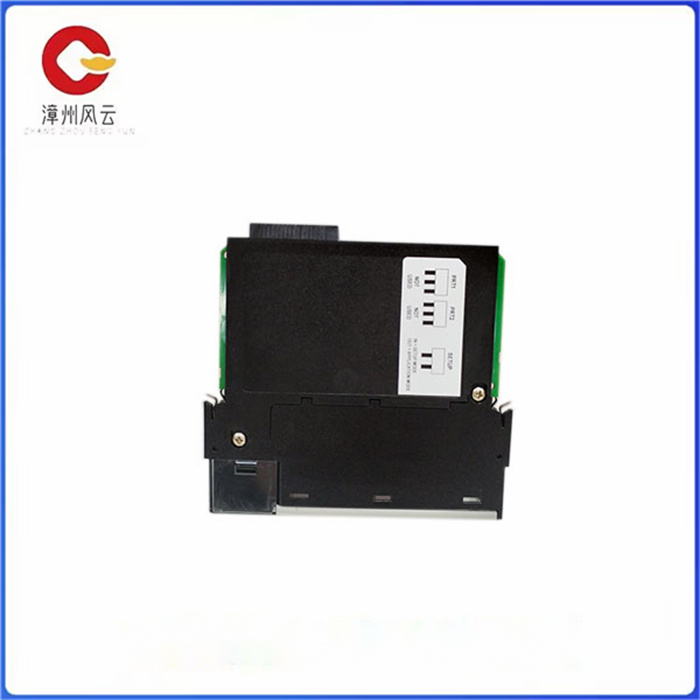

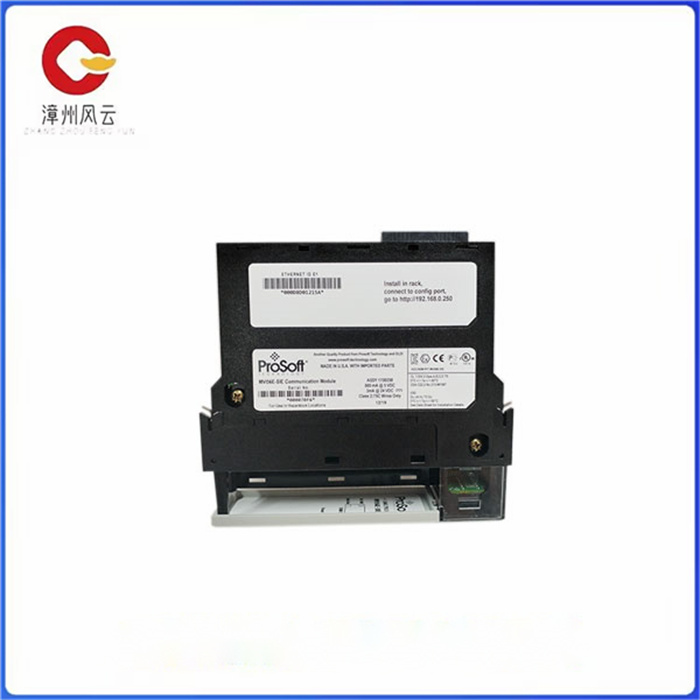

MVI56E-SIE 工业以太网通信模块Prosoft网关

MVI56E-SIE 工业以太网通信模块Prosoft网关

ProSoft Technology 的 MVI56E-SIE 模块是西门子工业以太网客户端通信模块，专为 ControlLogix 系统而设计。它允许 ControlLogix PAC（可编程自动化控制器）作为以太网客户端与多达 20 个用作以太网服务器的西门子 S7-200、S7-300、S7-400、S7-1200 和 S7-1500 PLC 连接。该模块通过了 RoHS、CE 和 IECEx 标准的认证。MVI56E-SIE 模块随附以下组件：一根 5 英尺以太网电缆（直通配置）和包含模块配置工具的 ProSoft 解决方案 CD 或 ProSoft 解决方案 DVD。MVI56E-SIE模块使用ProSoft配置构建器通过图形配置工具管理配置文件，它还允许查看模块诊断信息。

MVI56E-SIE 模块兼容单插槽 1756 ControlLogix 背板。该模块的电流负载在 800 伏直流时为 5 毫安，在 3 伏直流时为 23 毫安。该模块支持 10/100 Mbps 以太网，具有自动交叉检测功能。以太网接口是 RJ-45 接口，带有用于链路和活动的 LED 指示灯。模块上的 4 个字符的字母数字 LED 显示屏可用于显示状态和诊断信息。模块上还提供 LED 指示灯，用于显示电池状态、应用状态和模块状态。MVI56E-SIE 模块的工作温度范围为 32 至 140 华氏度，存储温度范围为 -40 至 185 华氏度。该模块的振动额定值为 5 G，从 10 赫兹到 150 赫兹。工作冲击等级为 30 G。

MVI56E-SIE 工业以太网通信模块Prosoft网关

The MVI56E-SIE module from ProSoft Technology is a Siemens Industrial Ethernet client communication module designed specifically for ControlLogix systems. It allows ControlLogix PAC (Programmable Automation Controller) to be connected as an Ethernet client with up to 20 Siemens S7-200, S7-300, S7-400, S7-1200 and S7-1500 PLCS that are used as Ethernet servers. The module is certified to RoHS, CE and IECEx standards. The MVI56E-SIE module comes with the following components: a 5-foot Ethernet cable (pass-through configuration) and a ProSoft Solution CD or ProSoft Solution DVD containing the module configuration tool. The MVI56E-SIE module uses the ProSoft configuration Builder to manage configuration files through the graphical configuration tool, which also allows viewing of module diagnostic information.

The MVI56E-SIE module is compatible with a single-slot 1756 ControlLogix backplane. The module's current load is 5 MA at 800 volts DC and 23 mA at 3 volts DC. The module supports 10/100 Mbps Ethernet with automatic cross detection. The Ethernet interface is the RJ-45 interface with LED indicators for link and activity. A 4-character alphanumeric LED display on the module can be used to display status and diagnostic information. LED indicators are also provided on the module to display battery status, application status and module status. The MVI56E-SIE module has an operating temperature range of 32 to 140 degrees Fahrenheit and a storage temperature range of -40 to 185 degrees Fahrenheit. The module has a vibration rating of 5 G, from 10 Hz to 150 Hz. The operating impact rating is 30 G.
