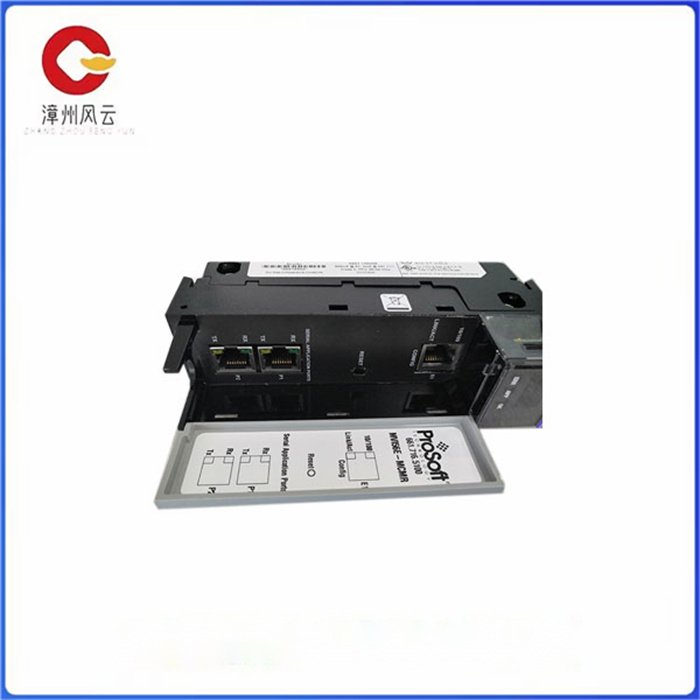

MVI56E-MCMR是一个ProSoft技术通信模块，一个Allen-Bradley inclusive合作伙伴公司。该模块支持MODBUS串行/ ASCII通信，并配有双RS232串行应用端口。这些端口支持RS232 / RS485和RS422电气标准，波特率可配置为110波特至115.2 kbps。可接受的串行设置包括无、奇数或偶数奇偶校验、数据位5、6、7和8；停止位为1或2，RTS开/关延迟为0-65535毫秒。该模块还带有一个RJ45以太网端口形式的调试/配置端口。该端口支持10/100 base-T传输速度，具有链路和活动LED指示灯以及自动交叉电缆检测。

MVI56E-MCMR是一个单槽模块，可直接安装到任何1756机箱上。

要配置模块操作和参数，可以使用ProSoft Configuration Builder(PCB)和产品发现服务(PDS)。

随着数据块的减少，MVI56E-MCMR需要更少的背板/网络带宽，并支持更简单的调度和通过控制网络的传输。此外，当与ControlNet通信适配器和冗余控制器一起使用时，简化的数据块实际上用于远程机箱安装。

MVI56E-MCMR ProSoft技术通信模块 支持MODBUS串行

The MVI56E-MCMR is a ProSoft technology communication module, an Allen-Bradley inclusive partner company. The module supports MODBUS serial/ASCII communication and is equipped with dual RS232 serial application ports. These ports support the RS232 / RS485 and RS422 electrical standards and can be configured with a baud rate from 110 baud to 115.2 kbps. Acceptable serial Settings include none, odd or even parity, data bits 5, 6, 7, and 8; The stop bit is 1 or 2, and the RTS on/off delay is 0-65535 ms. The module also comes with a debugging/configuration port in the form of an RJ45 Ethernet port. The port supports 10/100 base-T transfer speeds, has link and active LED indicators, and automatic cross-cable detection.

The MVI56E-MCMR is a single slot module that can be installed directly into any 1756 chassis.

To configure module operations and parameters, you can use ProSoft Configuration Builder(PCB) and Product Discovery Service (PDS).

With fewer data blocks, the MVI56E-MCMR requires less backplane/network bandwidth and supports simpler scheduling and transmission through the control network. In addition, when used with ControlNet communication adapters and redundant controllers, simplified data blocks are actually used for remote chassis installation.
