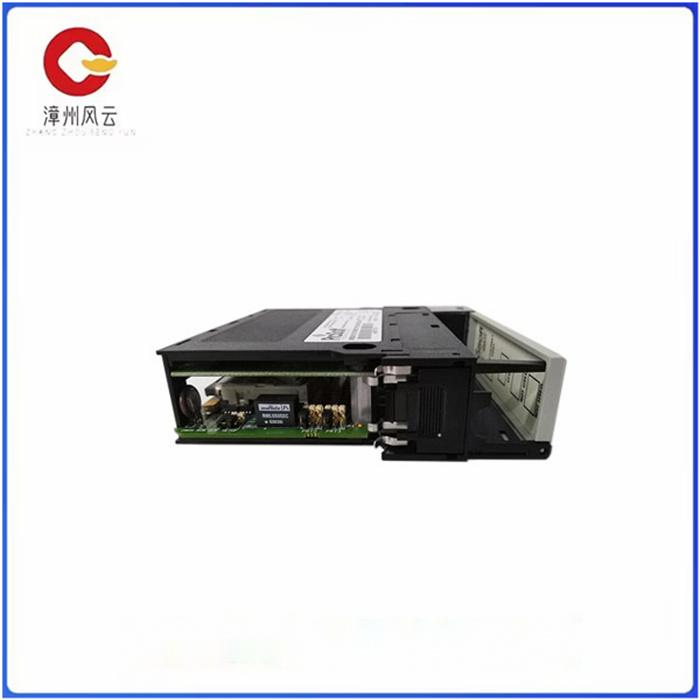

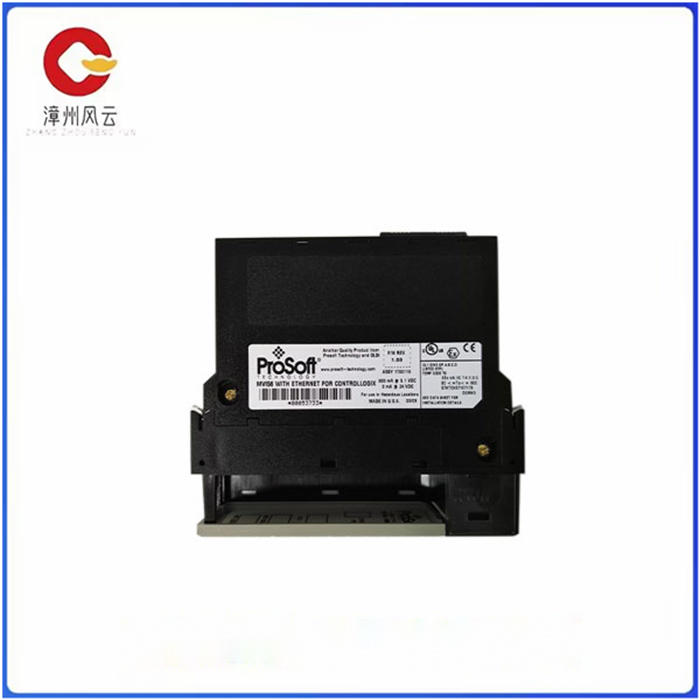

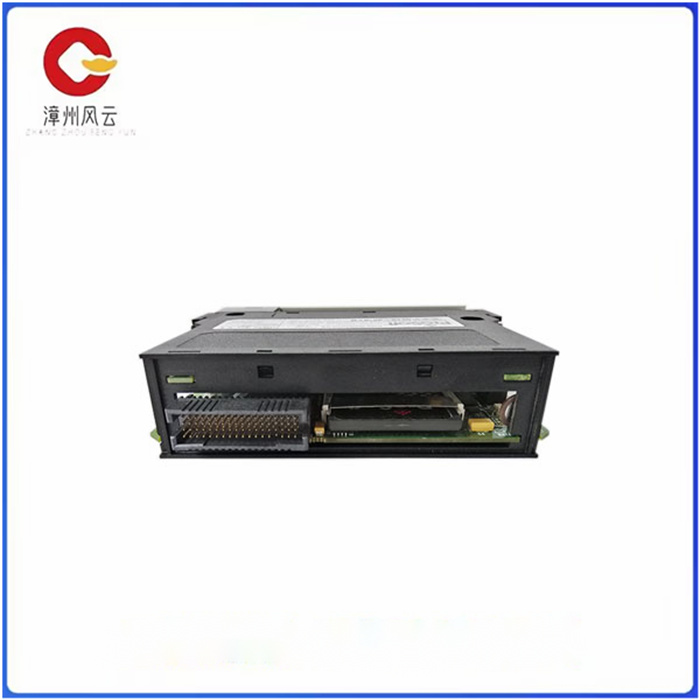

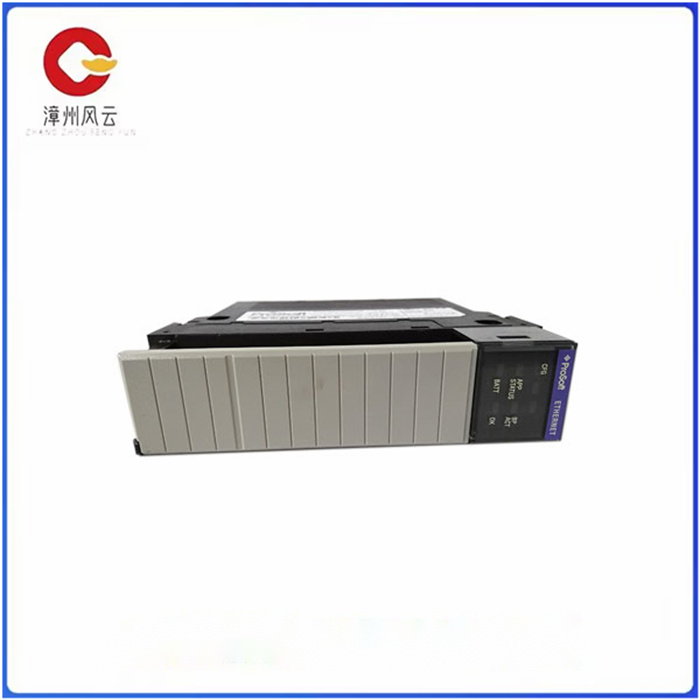

MVI56-MNETC IP多客户端/服务器增强型网络接口模块

MVI56-MNETC IP多客户端/服务器增强型网络接口模块

MVI56-MNETC是PROSOFT技术的Modbus TCP/IP多客户端/服务器增强型网络接口模块。该模块特别与Controllogix平台兼容。模块占用Controllogix机箱的单个插槽，可用800VDC的功耗为5mA和3VDC可用电源的24mA。

如果与附加指令（AOC）一起使用，则需要版本16或更高版本，而与提供的示例梯形图程序一起使用，则需要版本15或更高版本。此外，它还需要Prosoft配置生成器（PCB）来输入模块的配置。

MVI56-MNETC支持多达30个Modbus客户端和20个Modbus服务器。该模块保证在多服务器架构中表现出更高的响应，在服务器突然离线的情况下最大限度地减少对其他服务器的影响，并通过提供对集成的数据访问来支持人机界面（HMI），监控和数据采集。

MVI56-MNETC IP多客户端/服务器增强型网络接口模块

MVI56-MNETC is PROSOFT's Modbus TCP/IP multi-client/server enhanced network interface module. This module is specifically compatible with the Controllogix platform. The module occupies a single slot in the Controllogix chassis and can consume 800VDC of 5mA and 24mA of 3VDC of available power.

Version 16 or higher is required if used with Additional Instructions (AOC), and version 15 or higher is required when used with the provided example ladder diagram program. In addition, it requires a Prosoft configuration generator (PCB) to input the configuration of the module.

MVI56-MNETC supports up to 30 Modbus clients and 20 Modbus servers. The module guarantees higher responsiveness in multi-server architectures, minimizes impact on other servers in the event of a server suddenly going offline, and supports human machine interface (HMI), monitoring, and data acquisition by providing access to integrated data.
