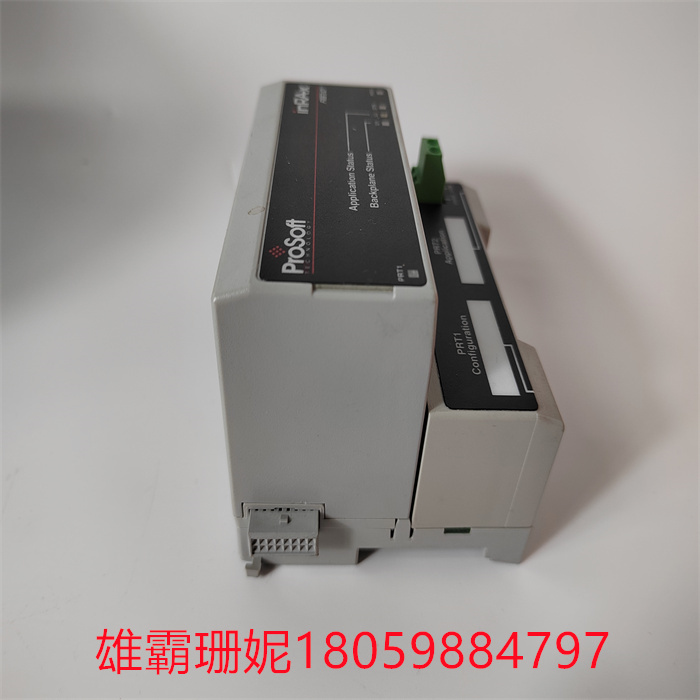

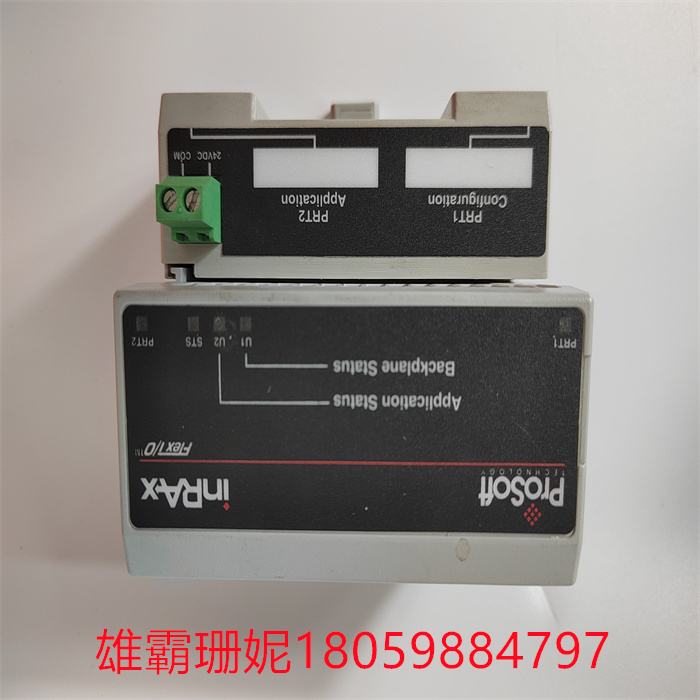

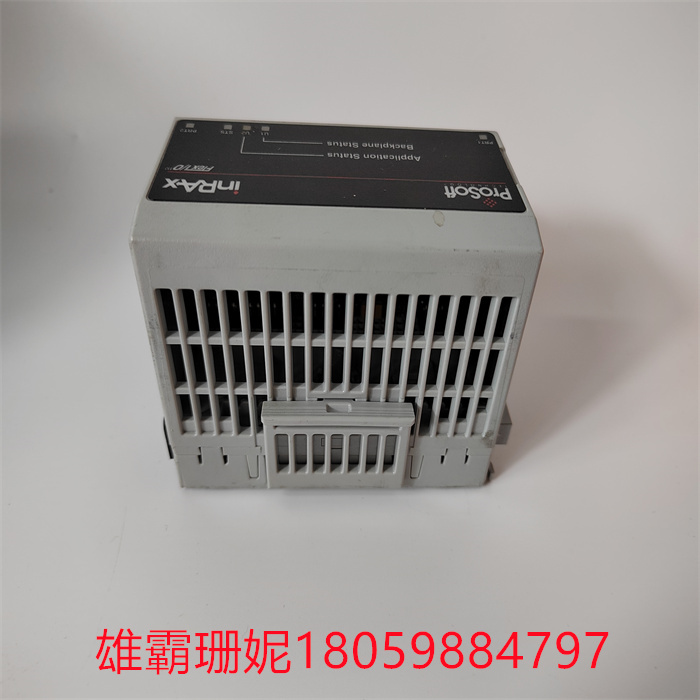

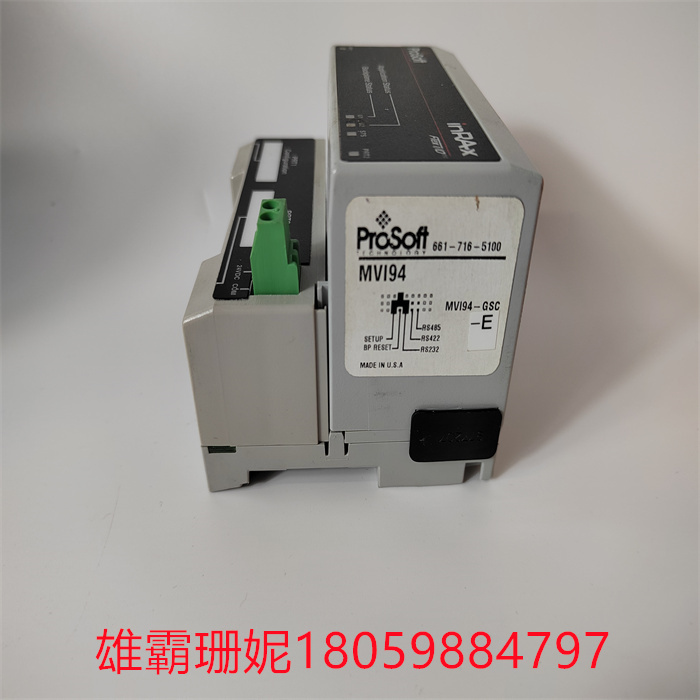

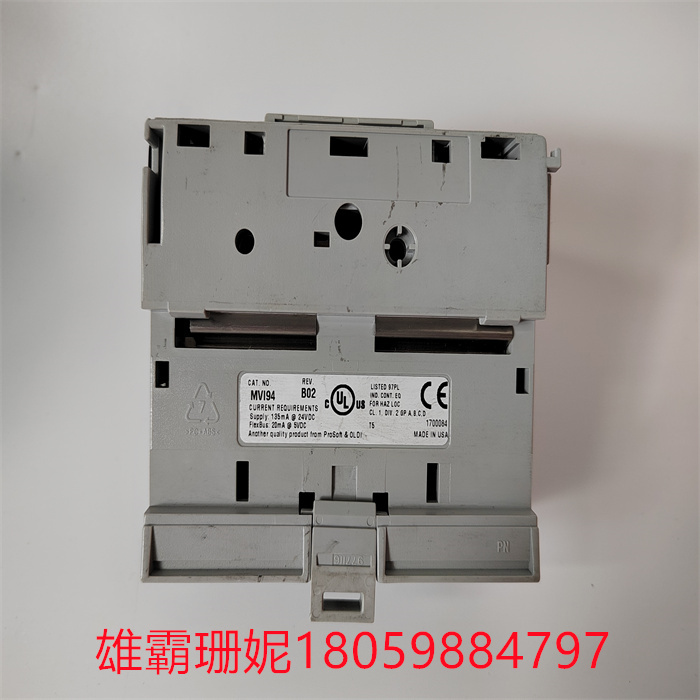

PROSOFT MVI94-GSC 通用串行 ASCII 网络接口模块

PROSOFT MVI94-GSC 通用串行 ASCII 网络接口模块

MVI94-GSC-E是一种通用串行ASCII网络接口模块，由ProSoft technologies制造，属于Flex I/O 1794系列。

该模块是一个单插槽接口，具有125个读写命令长度。MVI94-GSC-E每块最多可容纳10个字符，并具有12至24伏的DC。

MVI94-GSC-E带有一个梯形逻辑简单的操作和一个完整的设置和监测是通过调试端口和用户配置端口。MVI94-GSC-E背板通过I/O接口连接。

MVI94-GSC-E的背板电流负载在5伏电压下为20毫安，外部电源的额定电压为12至24伏DC。MVI94-GSC-E的工作温度为0至55摄氏度，储存温度为-40至85摄氏度。

The MVI94-GSC-E is a general-purpose serial ASCII network interface module manufactured by ProSoft technologies and belonging to the Flex I/O 1794 series.

The module is a single socket interface with 125 read/write command lengths. The MVI94-GSC-E can hold up to 10 characters each and has a DC of 12 to 24 volts.

The MVI94-GSC-E comes with a ladder logic for simple operation and a complete setup and monitoring is available through the debug port and user configuration port. The MVI94-GSC-E midplane is connected through I/O ports.

The backplane current load of the MVI94-GSC-E is 20 mA at 5 volts, and the external power supply is rated at 12 to 24 volts DC. The MVI94-GSC-E has an operating temperature of 0 to 55 degrees Celsius and a storage temperature of -40 to 85 degrees Celsius.
