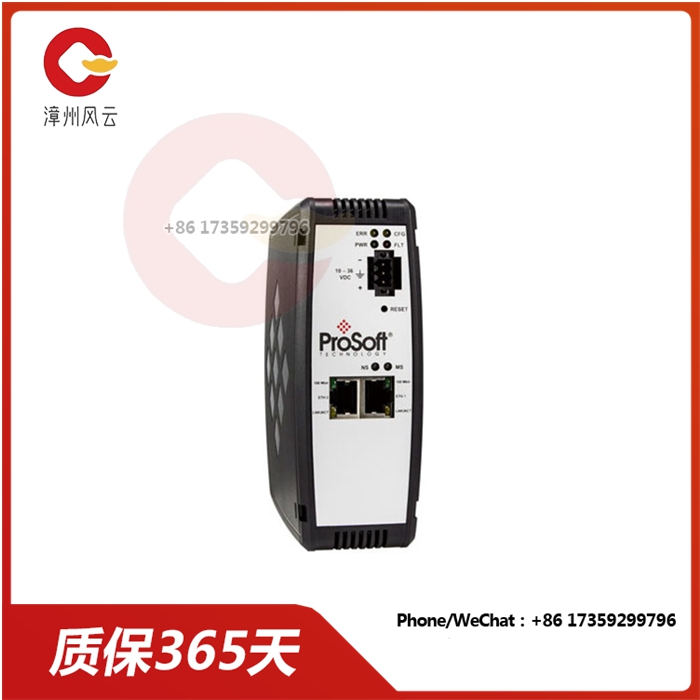

PLX32-EIP-SIE|工业以太网通信网关

PLX32-EIP-SIE 是一款由ProSoft Technology推出的工业以太网通信网关。它主要用于连接不同类型的工业控制器，实现异构网络之间的互联互通。该网关能够在罗克韦尔自动化PAC（可编程自动化控制器）与西门子S7 PAC之间实现高速双向数据传输。

产品特点

双网口设计： 具备两个独立的以太网端口，分别连接到不同的子网，无需更改设备的IP地址。

协议转换： 支持EtherNet/IP和西门子工业以太网协议，实现不同协议之间的互通。

高速传输: 提供高速的数据传输能力，满足工业自动化对实时性的要求。

配置灵活: 通过软件配置，可以灵活设置各种参数，适应不同的应用场景。

LX32-EIP-SIE网关的工作原理如下：

数据接收： 从一个子网的设备（例如，罗克韦尔自动化PLC）接收数据。

协议转换： 将接收到的数据转换为另一个子网设备（例如，西门子S7 PLC）能够理解的协议格式。

数据发送: 将转换后的数据发送到另一个子网的设备。

应用场景

异构网络集成： 将不同厂家的PLC、HMI、变频器等设备连接到同一个网络中。

数据采集与监控: 从现场设备采集数据，并传输到上位机进行监控和分析。

远程控制： 通过网络远程控制现场设备。

协议转换： 在不同协议的设备之间进行数据交换。

技术规格（典型值）

以太网接口： 2个10/100Mbps以太网端口

协议支持：以太网/IP、PROFINET

数据速率： 高速数据传输

工作温度： 0°C~55°C

电源： 24VDC

PLX32-EIP-SIE|工业以太网通信网关

PLX32-EIP-SIE is an industrial Ethernet communication gateway from ProSoft Technology. It is mainly used to connect different types of industrial controllers and realize the interconnection between heterogeneous networks. The gateway enables high-speed bidirectional data transfer between the Rockwell Automation PAC (Programmable Automation Controller) and the Siemens S7 PAC.

Product characteristics

Dual-network port design: Two independent Ethernet ports connect to different subnets without changing the IP address of the device.

Protocol conversion: Support EtherNet/IP and Siemens Industrial Ethernet protocols to achieve interoperability between different protocols.

High-speed transmission: provides high-speed data transmission capability to meet the real-time requirements of industrial automation.

Flexible configuration: Through the software configuration, you can flexibly set various parameters to adapt to different application scenarios.

The LX32-EIP-SIE gateway works as follows:

Data reception: Receiving data from a subnetwork of devices (e.g., Rockwell Automation PLC).

Protocol conversion: The conversion of the received data into a protocol format that another subnet device (e.g., Siemens S7 PLC) can understand.

Data sending: A device that sends the converted data to another subnet.

Application scenario

Heterogeneous network integration: PLC, HMI, inverter and other equipment from different manufacturers are connected to the same network.

Data acquisition and monitoring: Data is collected from the field equipment and transmitted to the host computer for monitoring and analysis.

Remote control: Remote control of field equipment through the network.

Protocol conversion: Data is exchanged between devices with different protocols.

Technical specifications (typical values)

Ethernet interface: Two 10/100Mbps Ethernet ports

Protocol support: Ethernet /IP, PROFINET

Data rate: High-speed data transfer

Operating temperature: 0°C~55°C

Power supply: 24VDC
