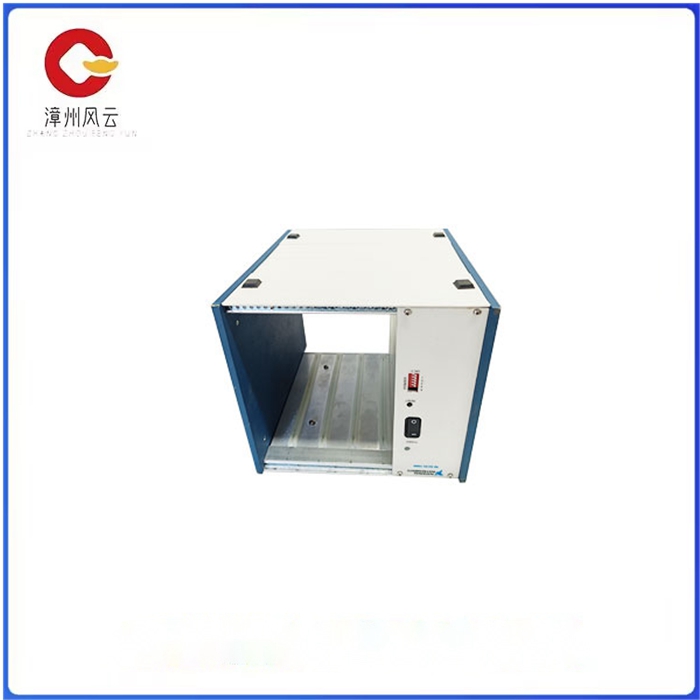

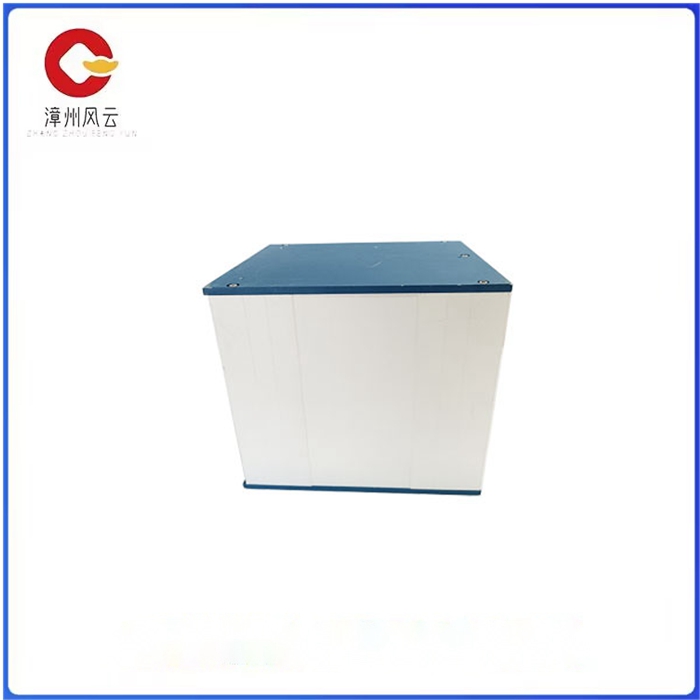

SCXI-1000 4槽交流机箱是NI（National Instruments，美国国家仪器）公司推出的一款基于PXI（PCI extensions for Instrumentation）总线标准的机箱。这款机箱设计用于容纳和供电给SCXI（Signal Conditioning for Instrumentation）模块，这些模块用于信号调理和测量。

SCXI模块广泛应用于各种测量和自动化测试系统中，包括电气、电子、机械、生物医学等领域。它们可以执行模拟信号调理、数字信号处理、温度测量、压力测量等多种功能。

SCXI-1000 4槽交流机箱具有以下特点：

4槽设计：机箱内有4个插槽，可以插入4个SCXI模块。

交流供电：机箱采用交流供电方式，通常通过连接到一个标准的交流电源插座来供电。

PXI总线：机箱遵循PXI总线标准，可以与支持PXI的控制器（如PXI控制器或CompactRIO控制器）进行通信。

紧凑设计：机箱设计紧凑，适合在实验室、生产线或其他有限空间中使用。

散热性能：机箱内部有良好的散热设计，确保模块在长时间运行过程中保持稳定。

扩展性：机箱可以通过堆叠方式扩展，以满足更多模块的需求。

SCXI-1000 4 槽交流机箱

The SCXI-1000 4-slot AC chassis is a chassis based on the PCI extensions for Instrumentation (PXI) bus standard released by National Instruments (NI). This chassis is designed to house and power the Signal Conditioning for Instrumentation (SCXI) modules, which are used for signal conditioning and measurement.

SCXI modules are widely used in a variety of measurement and automated test systems, including electrical, electronic, mechanical, biomedical and other fields. They can perform analog signal conditioning, digital signal processing, temperature measurement, pressure measurement and many other functions.

The SCXI-1000 4-slot AC chassis has the following features:

4-slot design: The chassis has four slots for inserting four SCXI modules.

Ac power supply: The chassis uses AC power supply and is usually powered by connecting to a standard AC power outlet.

PXI Bus: The chassis follows the PXI bus standard and can communicate with controllers that support PXI, such as PXI controllers or CompactRIO controllers.

Compact design: The chassis is designed to be compact and suitable for use in laboratories, production lines or other limited Spaces.

Heat dissipation performance: The chassis has a good heat dissipation design to ensure the stability of the module during long-term operation.

Scalability: The chassis can be expanded by stacking to meet the needs of more modules.
