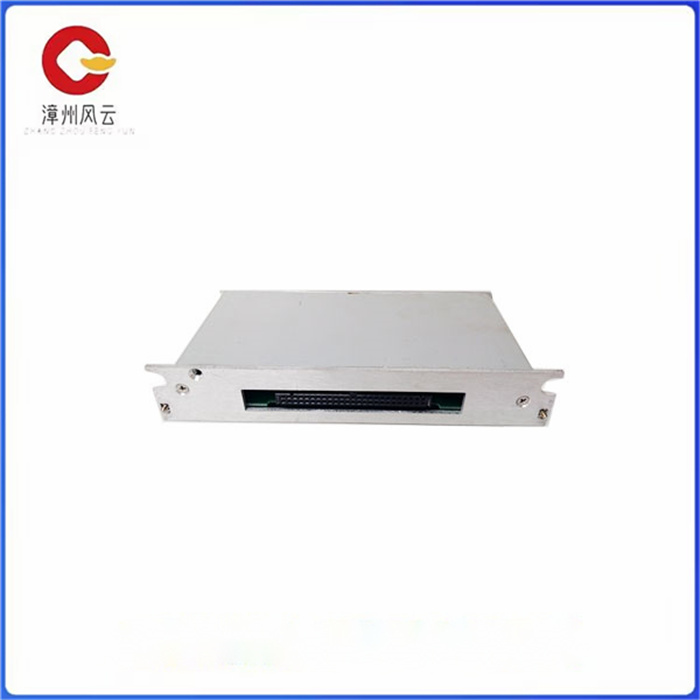

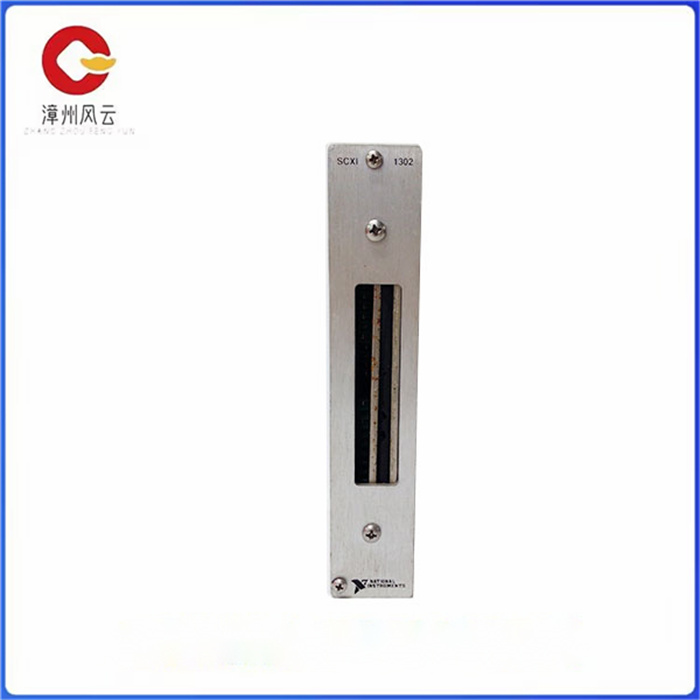

（部件号：777687-02）是NI制造的SCXI系列的成员。SCXI-1302是一款50螺钉前置接线端子。强烈建议将此型号与SCXI-1180馈通板一起使用。此接线端子安装在 SCXI 模块的前面。螺丝端子允许与馈通板进行简单的信号连接。

SCXI-1302具有多种有益功能，有助于实现尽可能无缝的信号连接。SCXI 1302采用屏蔽设计，可确保快速、可靠的信号连接。该接线端子还具有机架安装和DIN导轨安装选项。该型号还具有应力消除夹具，以确保信号线牢固就位。National Instruments SCXI 1302直通式接线端子在完全屏蔽的外壳中直接连接到螺钉端子处的传感器。

要设置 SCXI-1302，需要几个项目，包括：安装指南、电线绝缘剥线钳、剪线钳、长嘴钳、1/4 英寸。和 1/8 英寸。一字螺丝刀、1 号和 2 号飞利浦螺丝刀、SCXI 机箱和 SCXI-1180 馈通板。NI SCXI 1302 具有 26-16 AWG 最大 磁场 线 规 和 直流 耦合。转折频率为 0.16 Hz 1 极 RC。该接线端子的直流抑制能力为 ±50 VDC。

SCXI-1302使用NIDAQmx驱动程序软件运行，该软件可以使用软件包或应用程序开发环境（ADE）进行编程，例如LabVIEW、LabWindows/CVI、ComponentWorks等。可以使用Measurement & Automation Explorer （MAX）工具对设备进行配置。NI 设备 设计 符合 以下 电气 安全 标准： IEC 61010-1、 EN 61010-1、 UL 61010-1 和 CSA 61010-1。

SCXI-1302 前置接线端子 具有多种有益功能

(Part number: 777687-02) is a member of the SCXI family manufactured by NI. The SCXI-1302 is a 50-screw front terminal. It is highly recommended to use this model with the SCXI-1180 feedthrough plate. The terminal is installed on the front of the SCXI module. Screw terminals allow for simple signal connections to feed-through plates.

The SCXI-1302 has a number of beneficial features that help make signal connectivity as seamless as possible. The SCXI 1302 features a shielded design to ensure fast and reliable signal connections. The terminals also have rack mount and DIN rail mount options. This model also has a stress relief clamp to ensure the signal line is firmly in place. The National Instruments SCXI 1302 straight-through terminals are connected directly to the sensor at the screw terminal in a fully shielded housing.

To set up the SCXI-1302, several items are required, including: installation guide, wire insulation strippers, wire cutters, long nose pliers, 1/4 inch. And 1/8 of an inch. Flat-head screwdriver, No. 1 and No. 2 Philips screwdrivers, SCXI chassis, and SCXI-1180 Feedthrough plate. The NI SCXI 1302 has a 26-16 AWG maximum field line gauge and DC coupling. The transition frequency is 0.16 Hz 1 pole RC. The DC rejection capability of the terminal is ±50 VDC.

The SCXI-1302 runs with NIDAQmx driver software, which can be programmed using a software package or application development environment (ADE), such as LabVIEW, LabWindows/CVI, ComponentWorks, etc. The device can be configured using the Measurement & Automation Explorer (MAX) tool. NI equipment is designed to comply with the following electrical safety standards: IEC 61010-1, EN 61010-1, UL 61010-1 and CSA 61010-1.
