美国NI SCXI-1300 SCXI端子座 板载传感器用于冷端补偿

美国NI SCXI-1300 SCXI端子座 板载传感器用于冷端补偿

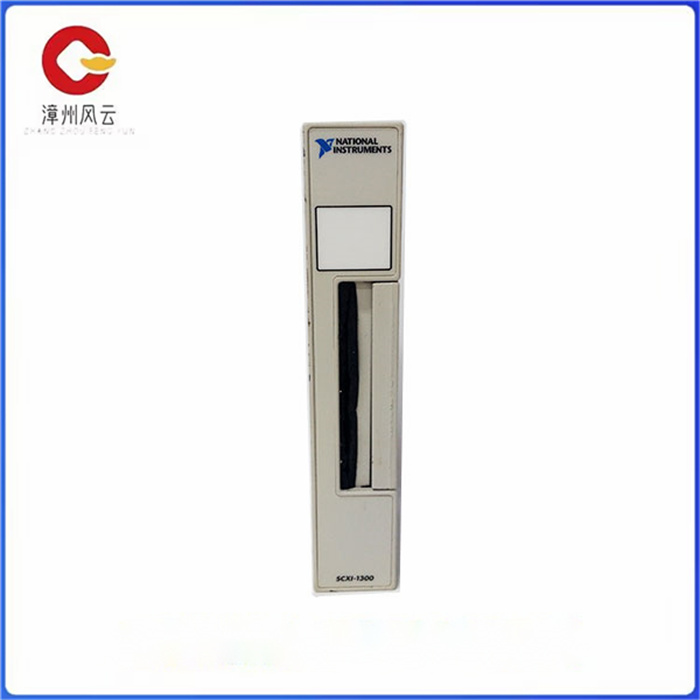

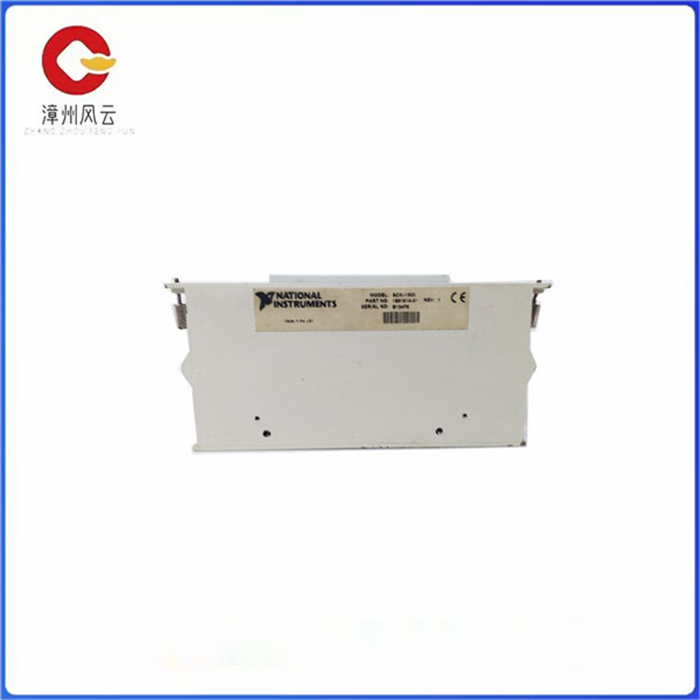

National Instruments SCXI-1300（部件号：777687-00）是一款通用接线端子，配备板载温度传感器。使用此型号，用户可以将输入信号链接到 SCXI-1102 系列、SCXI-1104 和 SCXI-1100 模块。 除此之外，SCXI-1300还可以与SCXI-1181K和SCXI-1300模块一起使用。该模块的设计使其可以轻松安装在SCXI模块的前面。NI SCXI-1300 配备 一个 96 针 DIN 输出 连接器， 通过 该 连接器 可 连接 至 SCXI 模 块。SCXI-1300 上的集成冷端传感器可在 0 至 50 °C 范围内以 1.3 °C 的精度和 0.5 °C ±的重复精度运行。 传感器产生 10 mV/°C 的输出（从 0 到 50 °C 至 0.5 V）。

要使用 SCXI-1300，需要以下设备：SCXI-1300 接线端子、SCXI-1300 接线端子安装指南、SCXI 机箱、SCXI 模块、SCXI 模块用户手册、1/8 英寸。 平头螺丝刀、1 号和 2 号十字头螺丝刀、电线绝缘剥线钳、长嘴钳和剪线钳。

将 32 通道 SCXI 模块与 SCXI-1300 接线端子配合使用，用户可以通过螺丝端子互连信号。为了连接到 SCXI 模块的 32 个差分输入，该型号具有 32 对螺丝端子。它还具有两个螺丝端子，用于连接到模块的功能性机箱接地引脚。此外，出于安全考虑，NI SCXI-1300还带有一个焊片作为机箱接地。额外的螺丝端子可用于连接SCXIbus GUARD、SCXI模块OUTPUT和SCXI模块AOREF。NI SCXI-1300 是一款小型设备，物理尺寸为 49.3 x 4.3 x 18.8 cm，设计用于在较宽的温度范围内运行。

SCXI-1300 的推荐工作和存储温度范围分别为 0 至 50 °C 和 –20 至 70 °C，非冷凝相对湿度范围为 10 至 90%。NI 设备 设计 符合 以下 电气 安全 标准： IEC 61010-1、 EN 61010-1、 UL 61010-1 和 CAN/ CSA-C22.2 No. 61010-1。

美国NI SCXI-1300 SCXI端子座 板载传感器用于冷端补偿

The National Instruments SCXI-1300 (Part number: 777687-00) is a universal terminal with an onboard temperature sensor. With this model, the user can link the input signal to the SCXI-1102 series, SCXI-1104 and SCXI-1100 modules. In addition, the SCXI-1300 can also be used with the SCXI-1181K and SCXI-1300 modules. The module is designed so that it can be easily installed in front of the SCXI module. The NI SCXI-1300 is equipped with a 96-pin DIN output connector through which it can be connected to the SCXI module. The integrated cold-end sensor on the SCXI-1300 operates with an accuracy of 1.3 °C and a repeatability of 0.5 °C ± over a range of 0 to 50 °C. The sensor produces an output of 10 mV/°C (from 0 to 50 °C to 0.5 V).

To use the SCXI-1300, you need the following equipment: SCXI-1300 terminal, SCXI-1300 Terminal Installation Guide, SCXI chassis, SCXI module, SCXI Module User Manual, 1/8 inch. Flat head screwdriver, crosshead screwdriver No. 1 and No. 2, wire insulation strippers, long nose pliers, and wire cutters.

When the 32-channel SCXI module is used with the SCXI-1300 terminal, the user can connect the signal through the screw terminal. To connect to the 32 differential inputs of the SCXI module, this model has 32 pairs of screw terminals. It also features two screw terminals for connection to the functional case grounding pins of the module. In addition, for safety reasons, the NI SCXI-1300 also comes with a solder as a case grounding. Additional screw terminals can be used to connect SCXIbus GUARD, SCXI module OUTPUT, and SCXI module AOREF. The NI SCXI-1300 is a small device with physical dimensions of 49.3 x 4.3 x 18.8 cm and is designed to operate over a wide temperature range.

The SCXI-1300 has a recommended operating and storage temperature range of 0 to 50 °C and -20 to 70 °C, respectively, and a non-condensing relative humidity range of 10 to 90%. NI equipment is designed to comply with the following electrical safety standards: IEC 61010-1, EN 61010-1, UL 61010-1 and CAN/ CSA-C22.2 No. 61010-1.
