美国NI SCXI-1100电压输入 DCS控制系统

美国NI SCXI-1100电压输入 DCS控制系统

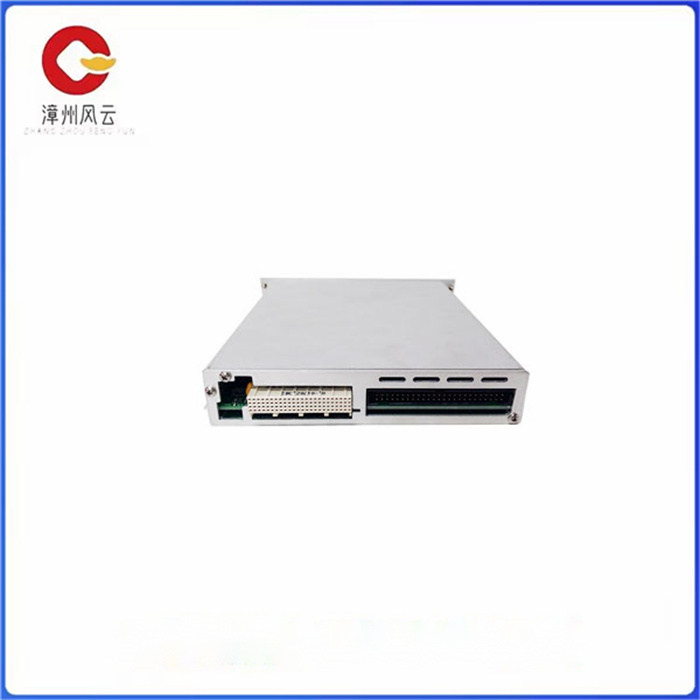

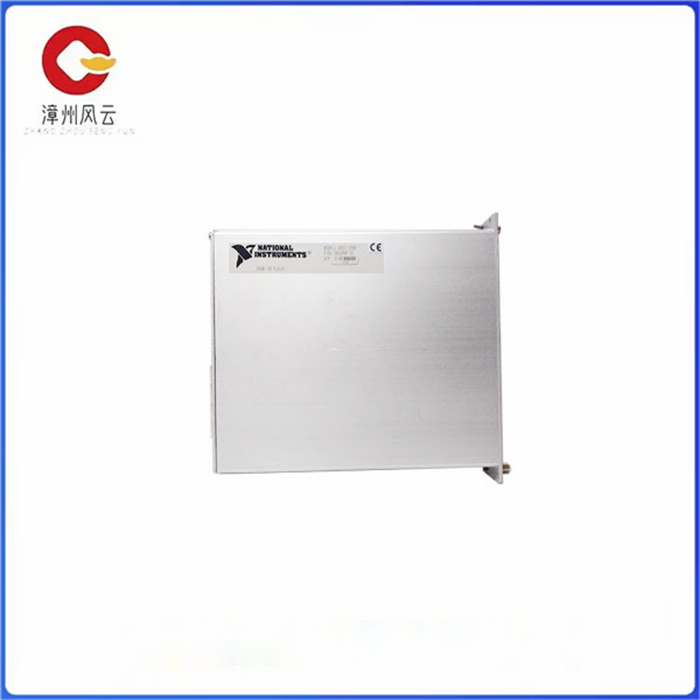

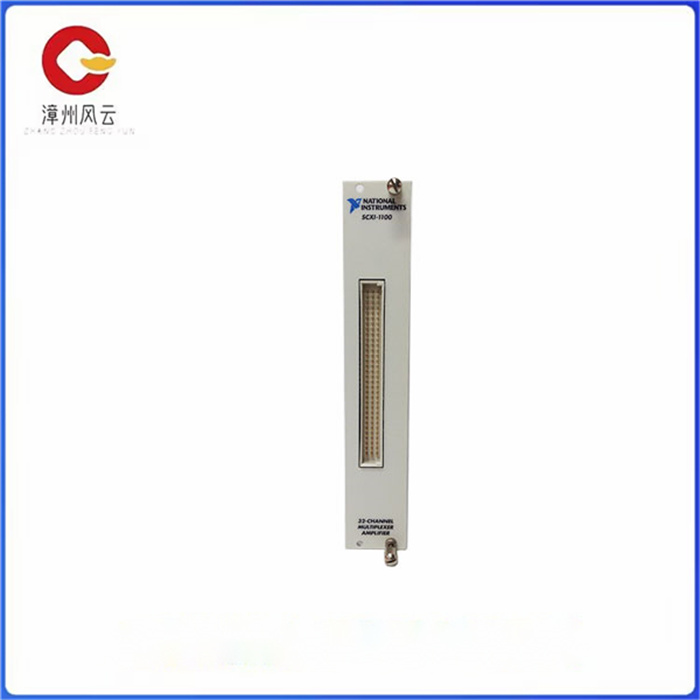

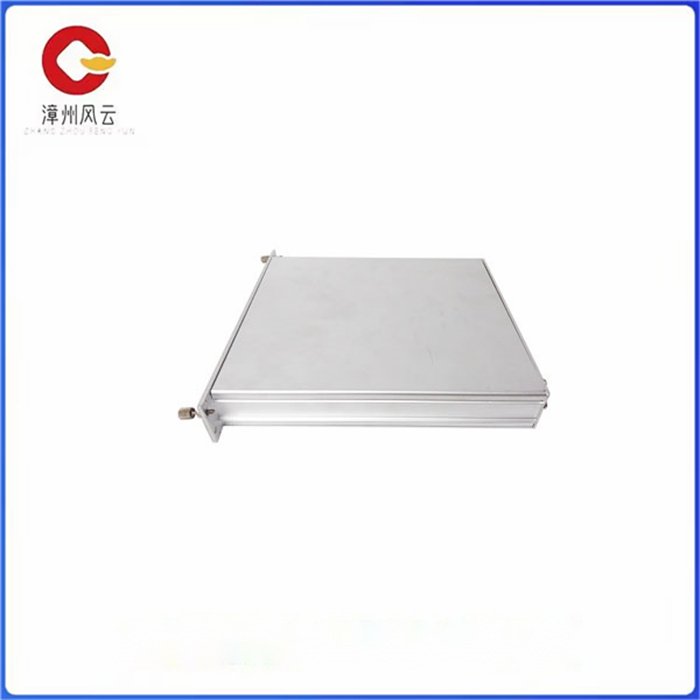

NI SCXI-1100（部件号 ： 776572-00， 181690-01） 是 用于 SCXI 的 32 差分 通道 电压 输入 模 块。该模块专为经济实惠的毫伏、伏特和电流信号信号调理而设计。所有通道均经过多路复用，可选择多个增益范围，并带有一个跳线可选的4 Hz低通滤波器。这些 通道 被 复 用 到 控制 DAQ 仪器 的 一个 通道 中。结果是DAQ系统的通道数量增加。附加的屏蔽接线端子带有螺丝端子，用于将信号简单连接到 SCXI 1100 模块。此外，接线端子上还包括一个用于热电偶冷端补偿的温度传感器。冷端基准电压源可 与 NI SCXI-32 上的 1100 个 通道 复 用。另一种选择是将冷端基准电压源跳线连接到数据采集板的不同通道。NI 设备 配备 了 一个 96 针 DIN C 公 前 连接 器 和 一个 50 针 公 带 缆 线 后 连接 器。直流耦合器件的最大工作电压为 ±10 V.NI

SCXI-1100 模 块 可 与 NI MIO 板 配合 使用， 包括 PC-LPM-16、Lab-LC、Lab-PC+、Lab- PC 和 Lab-NB。但是，这些板只能完成单通道读取;他们无法扫描模块。

SCXI-1100电压输入模块可与各种接线端子配合使用，包括机架安装式热电偶插头、螺丝端子、BNC连接器、DIN导轨安装、焊接引脚和前置安装接线端子。SCXI 1100 可与以下 NI 接线端子 配合使用：SCXI-1300、SCXI-1303、SCXI-1308、BNC-2095、TC-2095、TBX-1303、TBX-96 和 SCXI-1310。其中一些接线端子具有额外的功能。例如，SCXI-1310的一个特点是经济实惠的连接器和外壳组件。此外，BNC-2095 还具有预接线接地参考。TC-2095 具有等温结构和可切换接地参考。此外，SCXI-1303还具有可插拔接地参考。NI 设备 的 尺寸 为 1.2 x 6.8 x 8.0 英寸。在物理尺寸上。它的推荐工作温度范围为0°至50°C.SCXI-1100

美国NI SCXI-1100电压输入 DCS控制系统

NI SCXI-1100 (Part number: 776572-00, 181690-01) is a 32 differential channel voltage input module for SCXI. The module is designed for affordable signal conditioning of millivolts, volts and current signals. All channels are multiplexed, multiple gain ranges can be selected, and a 4 Hz low-pass filter with a jumper selectable. These channels are reused in a channel that controls the DAQ instrument. The result is an increase in the number of channels in the DAQ system. Additional shielded terminals with screw terminals are used for simple signal connection to the SCXI 1100 module. In addition, a temperature sensor for cold end compensation of the thermocouple is included on the terminal. The cold-end reference voltage source can be reused with 1100 channels on the NI SCXI-32. Another option is to connect the cold end reference voltage source jumper to a different channel of the data acquisition board. The NI unit is equipped with a 96-pin DIN C male front connector and a 50-pin male cable rear connector. The maximum operating voltage of the DC coupler is ±10 V.N

The SCXI-1100 modules can be used with NI MIO boards and include PC-LPM-16, Lab-LC, Lab-PC+, Lab-PC and Lab-NB. However, these boards can only perform single-channel reading; They can't scan the module.

The SCXI-1100 voltage input module can be used with a variety of terminals, including rack-mount thermocouple plugs, screw terminals, BNC connectors, DIN rail mounts, welded pins, and front-mount terminals. The SCXI 1100 can be used with the following NI terminals: SCXI-1300, SCXI-1303, SCXI-1308, BCN-2095, TC-2095, TBX-1303, TBX-96, and SCXI-1310. Some of these terminals have additional functions. For example, one of the features of the SCXI-1310 is an affordable connector and housing assembly. In addition, the BNC-2095 has a pre-wired ground reference. The TC-2095 has an isothermal construction and a switchable ground reference. In addition, the SCXI-1303 has a pluggable ground reference. NI devices measure 1.2 x 6.8 x 8.0 inches. In physical size. Its recommended operating temperature range is 0° to 50° C.SIXI-1100
