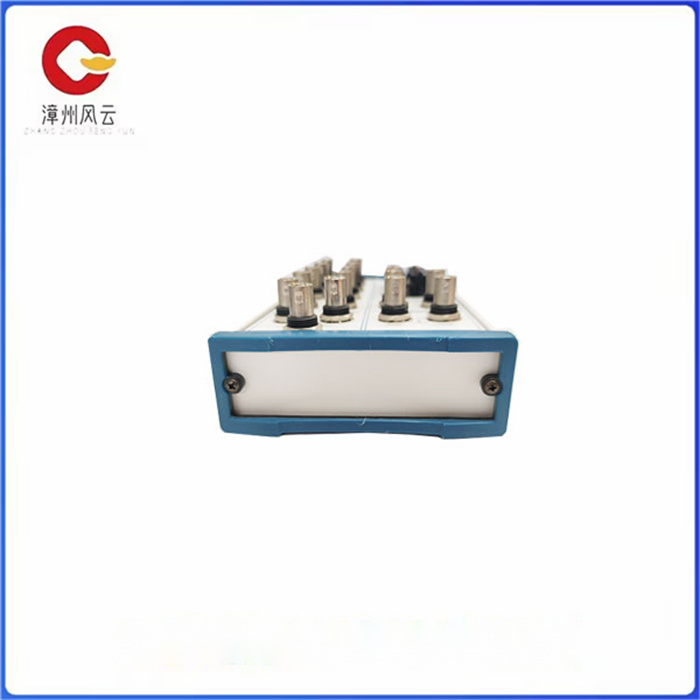

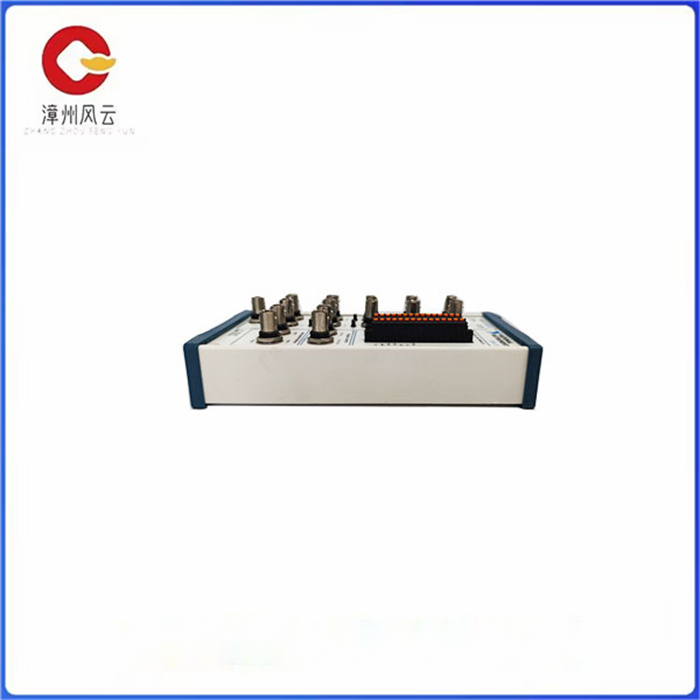

BNC-2110 （部件号： 777643-01） 是一款屏蔽， DIN导轨， 桌面安装端子.该接线端子提供 68 针母 SCSI 到 1 针母 BNC（15 个）、30 针母弹簧端子连接。NI BNC-2110 可 与 各种 NI 多功能 I/ O 和 模拟 输出 设备 配合 使用 。BNC-2110 有助于简化模拟信号以及一些数字信号与 DAQ 设备的连接。使用此接线端子，BNC-2110 配有屏蔽外壳，因此您可以获得更好的测量完整性。该屏蔽接线端子可实现桌面安装和DIN导轨安装配置。

该 设备 使用 NI- DAQmx 驱动 软件 运行 ， 该 软件 与 LabVIEW、 LabWindows/ CVI 或 Measurement Studio 等 软件包 兼容。可以使用Measurement & Automation Explorer （MAX）工具配置设备硬件。

NI BNC-2110 可 与 100 引脚 或 68 引脚 E/ M/ S 系列 或 68 引脚 NI-672x、NI-671x 和 NI-673x 模拟 输出 （AO 系列 ） DAQ 设备一起使用。National Instruments BNC-2110 广泛用于要求苛刻的生产、测试和实验室环境。BNC-2110 仅适用于差分模拟输入信号。使用此接线端子，您可以通过将 BNC 连接器下方的相应开关移动到 FS 位置来测量浮动信号。此外，该接线端子还可以测量接地参考信号。对于以地为参考的信号，将用于 AI 通道的 BNC 连接器下方的开关移至 GS 位置。该设备配备 15 个 BNC 连接器，并具有一个 68 针公头 SCSI 公头 I/O 连接器。

BNC-2110 是一款屏蔽DIN导轨桌面安装端子

Ncc-2110 (Part number: 777643-01) is a shielded, DIN rail, tabletop mount terminal. The wiring terminal provides 68 pin female SCSI to 1 pin female BNC (15) and 30 pin female spring terminals. The NI BNC-2110 can be used with a wide range of NI multi-function I/ O and analog output devices. The BNC-2110 helps simplify the connection of analog signals, as well as some digital signals, to DAQ devices. With this terminal, the BNC-2110 is equipped with a shielded housing, so you can get better measurement integrity. The shielded terminals are available in tabletop and DIN rail mounting configurations.

The device runs with NI-DAQmx driver software, which is compatible with packages such as LabVIEW, LabWindows/ CVI or Measurement Studio. Device hardware can be configured using the Measurement & Automation Explorer (MAX) tool.

The NI NBC-2110 can be used with 100-pin or 68-pin E/ M/ S series or 68-pin NI-672X, NI-671X and NI-673X Analog Output (AO series) DAQ devices. National Instruments BNC-2110 is widely used in demanding production, test and laboratory environments. BNC-2110 is only suitable for differential analog input signals. With this terminal, you can measure the floating signal by moving the corresponding switch under the BNC connector to the FS position. In addition, the terminal can also measure the ground reference signal. For a ground-referenced signal, move the switch under the BNC connector for the AI channel to the GS position. The device is equipped with 15 BNC connectors and features a 68-pin male SCSI male I/O connector.
