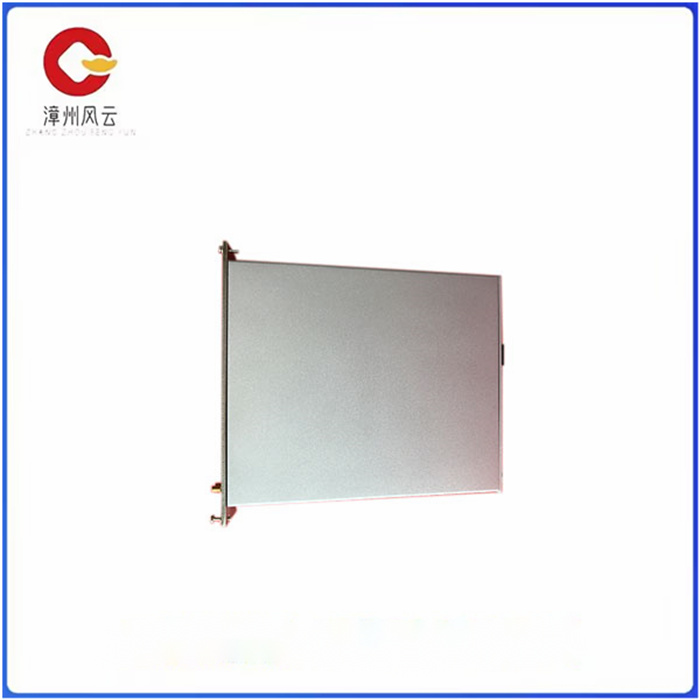

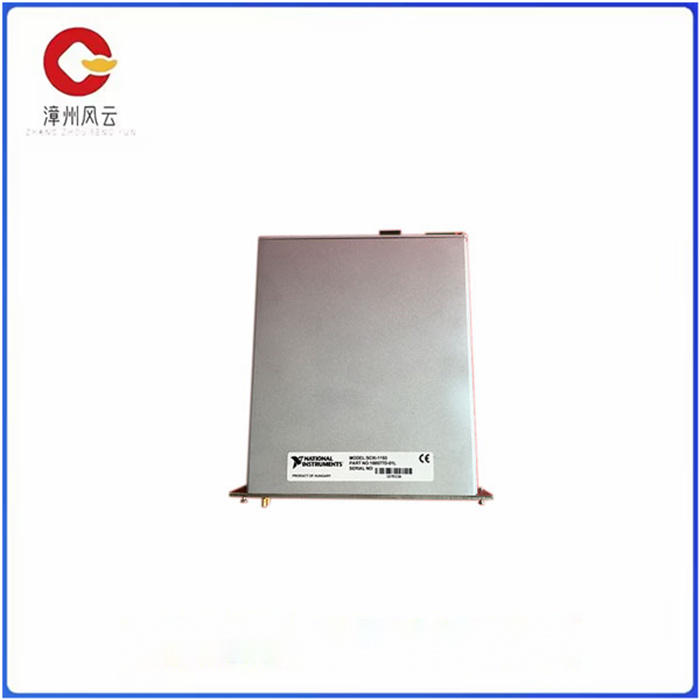

SCXI-1193 NI 射频多路复用开关模块

SCXI-1193 NI 射频多路复用开关模块

SCXI-1193可实现以下拓扑结构:四路8 x 1多路复用器、四路4 x 1端接多路复用器、双路16 x 1多路复用器、双路8 x 1端接多路复用器、32 x 1多路复用器、16 x 1端接多路复用器和独立模块。

这射频多路复用器开关模块可用于多种不同的电缆。这些电缆包括:MCX-MCX电缆、MCX-BNC电缆、MCX-SMB电缆或MCX-SMA电缆。每根电缆都有0.3米或1.0米长。还有一个50欧姆的MCX终端可用。

当50欧姆MCX终端位于32个通道的一半时，用户可以将该模块用作端接多路复用器。该器件的DC功率要求为:50毫安时为+5伏直流电，170毫安时为+18.5伏至+25伏直流电，170毫安时为-18.5伏至-25伏直流电。

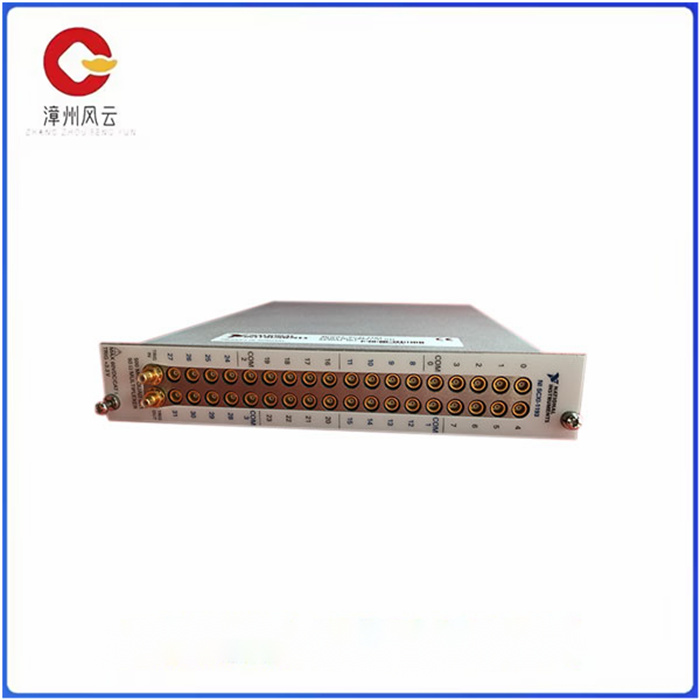

这NI SCXI-1193模块有36个用于I/O连接器的MCX插孔，2个用于触发连接器的SMB插孔，由银钯和金制成的继电器，最大扫描速率为每秒100次操作。该装置为机电闭锁继电器类型。NI设备重2盎司，尺寸为1.2 x 6.8 x 7.8英寸。在物理维度上。它的推荐工作温度范围为0°C至50°C，储存温度范围为-20°C至70°C，非冷凝湿度范围为5%至85%。

SCXI-1193 NI 射频多路复用开关模块

The SCXI-1193 can implement the following topologies: four-way 8 x 1 multiplexer, four-way 4 x 1 terminated multiplexer, dual-way 16 x 1 multiplexer, dual-way 8 x 1 terminated multiplexer, 32 x 1 multiplexer, 16 x 1 terminated multiplexer, and standalone modules.

This RF multiplexer switch module can be used for a variety of different cables. These cables include :MCX-MCX cable, MCX-BNC cable, MCX-SMB cable, or MCX-SMA cable. Each cable is 0.3 or 1.0 meters long. A 50 ohm MCX terminal is also available.

When the 50 ohm MCX terminal is located in half of the 32 channels, the user can use the module as an end multiplexer. The DC power requirements for this device are: +5 volts DC at 50 mA, +18.5 volts DC to +25 volts DC at 170 MA, and -18.5 volts DC to -25 volts DC at 170 Ma.

This NI SCXI-1193 module has 36 MCX jacks for I/O connectors, 2 SMB jacks for triggering connectors, relays made of silver palladium and gold, and a maximum scan rate of 100 operations per second. The device is of electromechanical latching relay type. The NI device weighs 2 ounces and measures 1.2 x 6.8 x 7.8 inches. In the physical dimension. It has a recommended operating temperature range of 0°C to 50°C, a storage temperature range of -20°C to 70°C, and a non-condensing humidity range of 5% to 85%.
