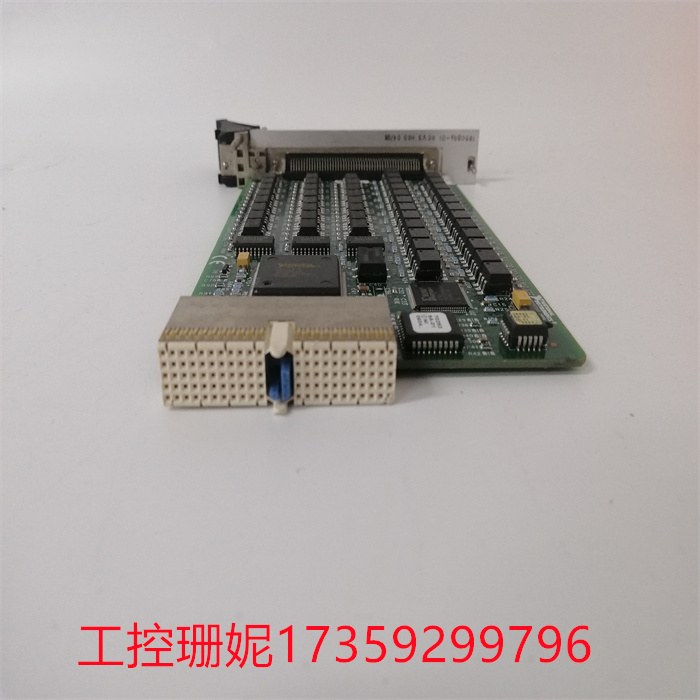

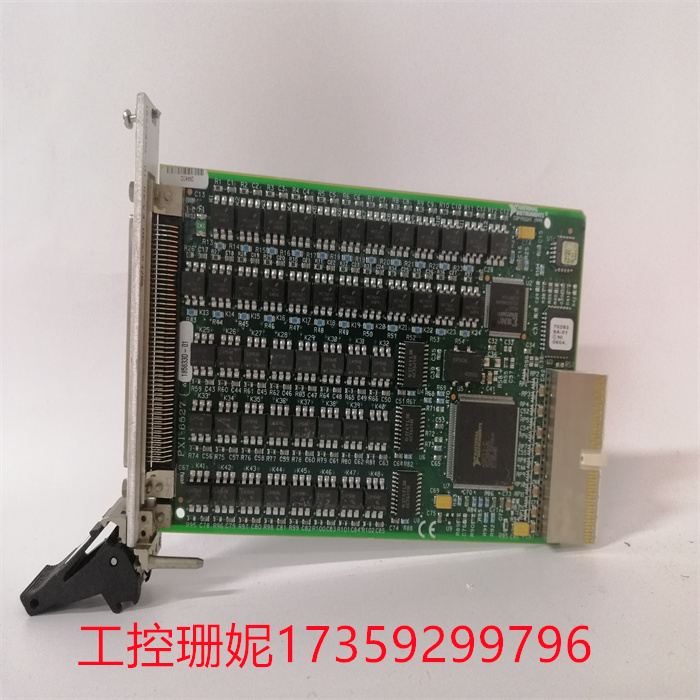

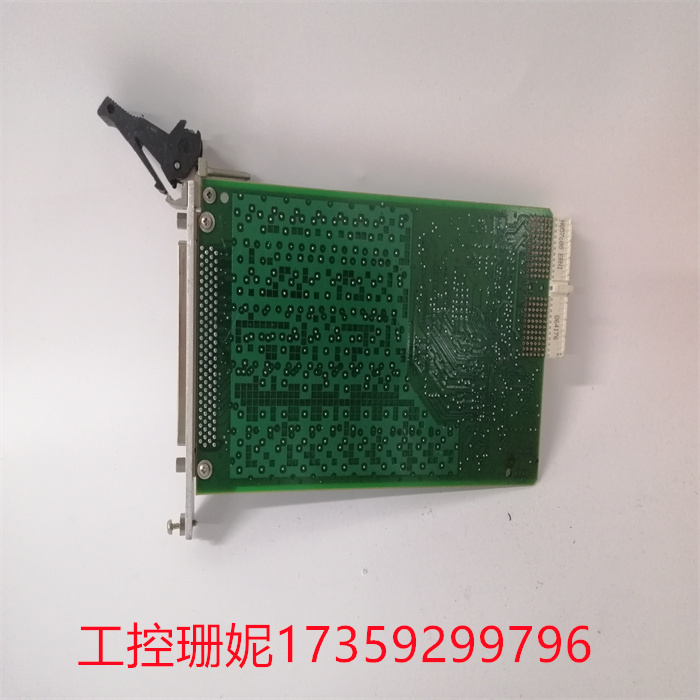

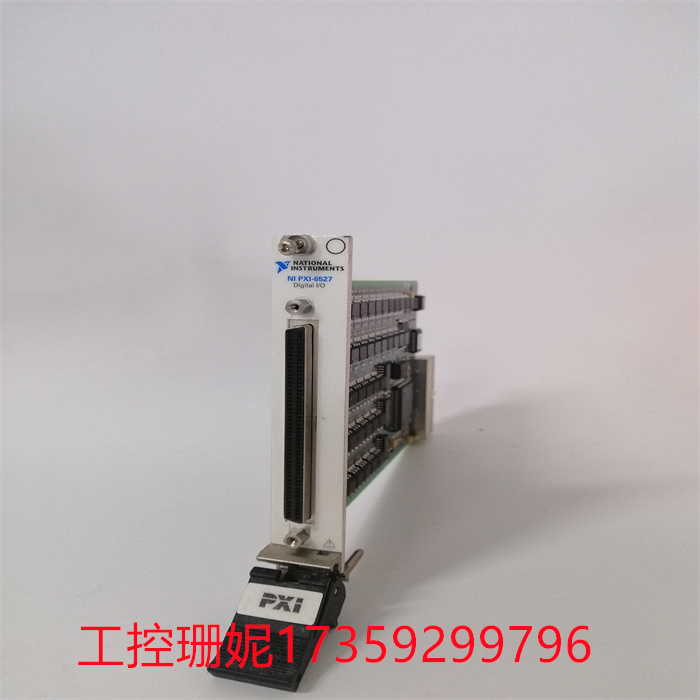

PXI-6527 185633D-01 NI 48位隔离式数字I/O模块 可降噪声和保护系统

PXI-6527 185633D-01 NI 48位隔离式数字I/O模块 可降噪声和保护系统

NIPXI-6527是一款48位隔离式数字I/О模块。该模块提供24个固态继电器数字输出和24个光隔离数字输入。用户可以切换高达120 mA的电流，并将数字电平检测为28 VDC。

PXl-6527在 Windows 2000/NT/ XP上运行，并完全兼容各种软件程序，包括LabVIEW、LabWindows/CVI和Measurement Studio 等。PXI-6527是一个并行DIO接口，具有通道间隔离I/O，可降低噪声、保护用户系统并断开接地环路。

NI PXI-6527倾向于读取TTL级别和非TTL级别的外部逻辑状况。其24个输入通道中的每一个都有一对用于信号及其基准的差分隔离端子。5V时最大输入电流为1.5mA(每通道)，24V时最大输入电流(每通道)为8 mA。PXI-6527两个端之间的电位差在2VDC至28 VDC内寄存为逻辑高电平。另一方面，PXI-6527考虑0V至1V之间的逻辑低电平。该模块的输入提供与PC之间和通道之间的60 VDC隔离。

NIPXI-6527 is a 48-bit isolated digital I/ TIO module. The module offers 24 solid-state relay digital outputs and 24 optically isolated digital inputs. Users can switch currents up to 120 mA and detect digital levels to 28 VDC.

The PXl-6527 runs on Windows 2000/NT/ XP and is fully compatible with various software programs, including LabVIEW, LabWindows/CVI, and Measurement Studio. The PXI-6527 is a parallel DIO interface with interchannel isolated I/O to reduce noise, protect user systems, and disconnect ground loops.

NI PXI-6527 tends to read external logic conditions at both TTL and non-TTL levels. Each of its 24 input channels has a pair of differential isolation terminals for the signal and its reference. The maximum input current is 1.5mA per channel at 5V and 8 mA per channel at 24V. The potential difference between the two ends of the PXI-6527 is stored as a logical high level in 2VDC to 28 VDC. The PXI-6527, on the other hand, considers low logic levels between 0V and 1V. The module's inputs provide 60 VDC isolation between PCS and channels.
