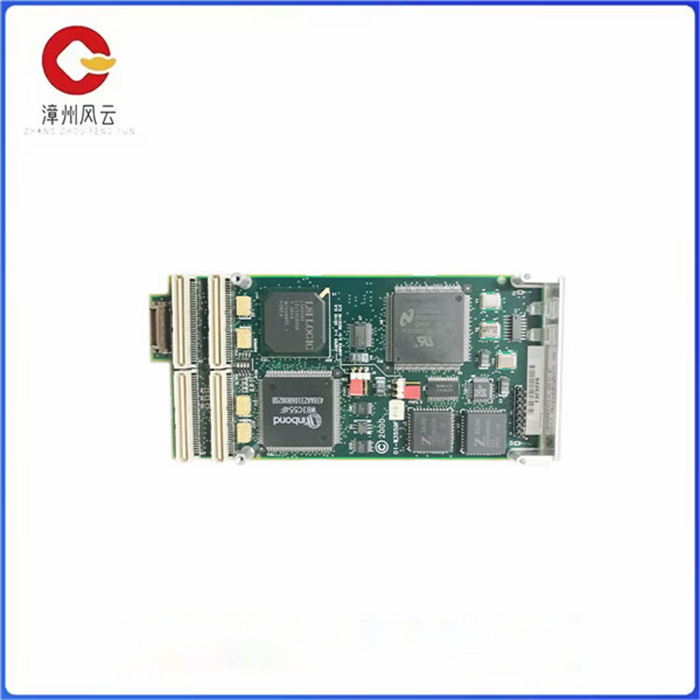

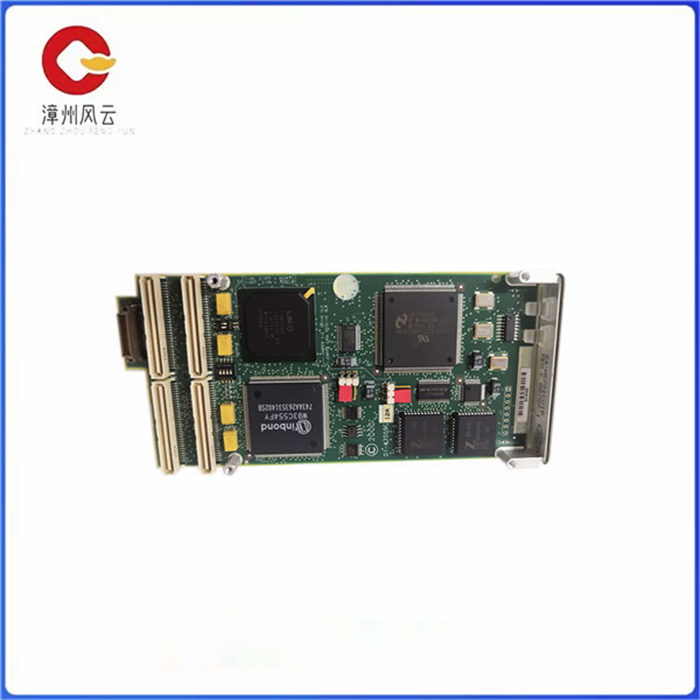

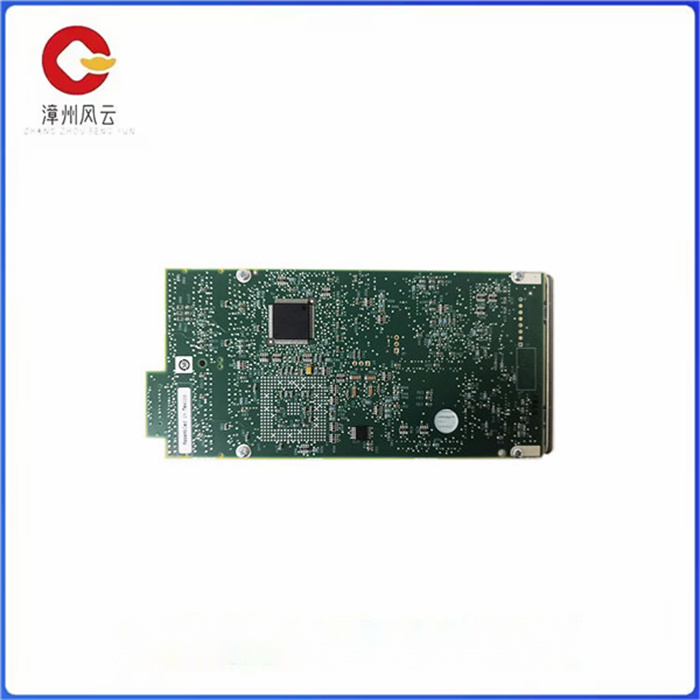

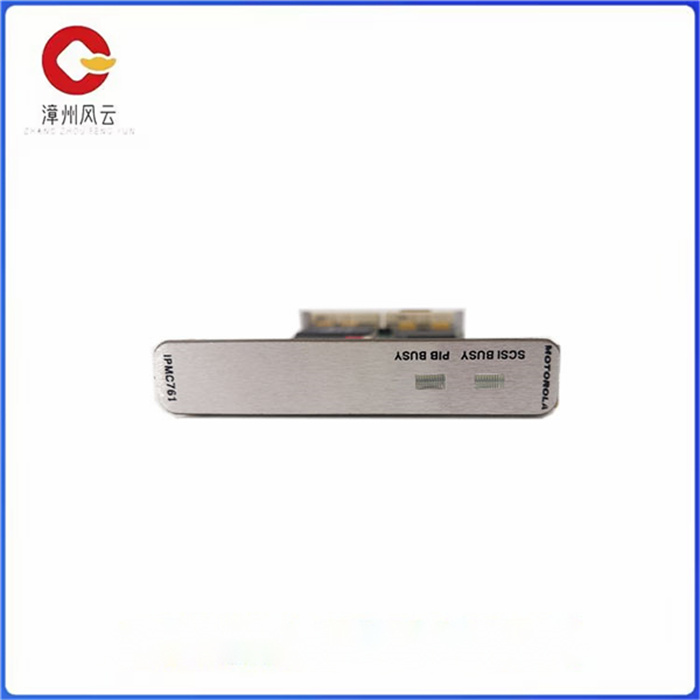

IPMC761 Motorola 控制模块 用于电信设备的电源

IPMC761 Motorola 控制模块 用于电信设备的电源

特点:

超宽SCSI

一个并行端口

两个异步和两个同步/异步串行端口

艾默生/摩托罗拉IPMC712/ IPMC761多功能/O模块是可选模块，使用MVME761或MVME712M转换板提供与早期摩托罗拉计算机集团(MCG)的向后兼容性。早期的mcg产品包括MVME2600和MVME2700系列SBC。

IPMC712和IPMC761可以在MVME5100单板机上安装和使用。这两种型号都是围绕PMC外形设计的，两个模块都集成了PCI/ISA桥、超宽SCSI适

配器和超级I/o功能。两个模块都是单宽、标准长度、标准高度的PMC板。它们通过PMCP11、 P12、P13、P14和P1 5连接器连接到主板PCI总线。

两个模块都通过PMC连接器获得+ 5V和+3.3V电压。

IPMC761 Motorola 控制模块 用于电信设备的电源

Features:

Ultra-wide SCSI

A parallel port

Two asynchronous and two synchronous/asynchronous serial ports

The Emerson/MOTOROLA IPMC712/ IPMC761 multifunction /O module is optional and uses the MVME761 or MVME712M conversion board to provide backward compatibility with earlier MOTOROLA Computer Group (MCG) models. Early mcg products included the MVME2600 and MVME2700 series of SBC.

The IPMC712 and IPMC761 can be installed and used on the MVME5100 board. Both models are designed around the PMC form factor, and both modules integrate PCI/ISA Bridges and ultra-wide SCSI devices

Orchestration and super I/o capabilities. Both modules are single-width, standard length, and standard height PMC boards. They are connected to the motherboard PCI bus via PMCP11, P12, P13, P14, and P1-5 connectors.

Both modules receive + 5V and +3.3V voltages via PMC connectors.
