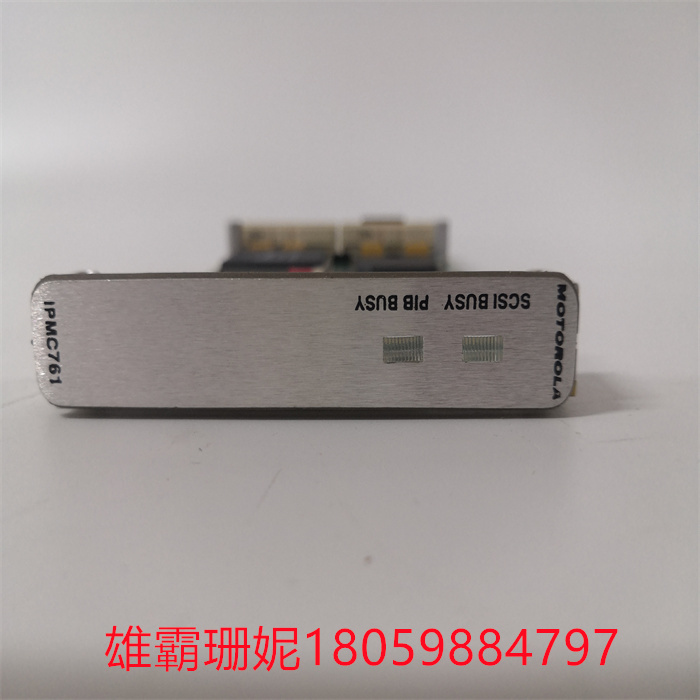

IPMC7616E-002 电路卡组件 适用于MVME761 提供DNP3通信

IPMC7616E-002 电路卡组件 适用于MVME761 提供DNP3通信

标准硬件电路仅保留1024字节的输入/输出寻址空间外围设备的I/O为000美元至3FF美元。所有标准PC输入/输出外围设备，如串行和并行端口、硬盘和软盘驱动器控制器、视频系统、实时时钟、系统定时器和中断控制器在此输入/输出空间区域中寻址。BIOS正确初始化和配置所有这些寄存器；调整这些输入/输出端口通常不需要直接。

除了输入/输出端口地址外，输入/输出设备还有一个单独的硬件中断线路分配。分配给每个中断行的是一个相应的中断向量内存中$00000到$003FF的256矢量中断表。

16个面具中断和单个不可屏蔽中断（NMI）在表2-3中列出及其功能。第43页的表2-4详细说明了中断向量中的向量桌子十六进制和十进制的中断数也定义为实数和十进制保护模式见第43页表2-4。

Standard hardware circuits retain only 1024 bytes of input/output addressing space and peripherals have an I/O of $000 to $3FF. All standard PC input/output peripherals such as serial and parallel ports, hard and floppy drive controllers, video systems, real-time clocks, system timers, and interrupt controllers are addressed in this input/output space area. The BIOS initializes and configures all of these registers correctly; Adjusting these input/output ports is usually not required directly.

In addition to the I/O port address, I/O devices have a separate hardware interrupt line assignment. Assigned to each interrupt row is a corresponding interrupt vector in memory of $00000 to $003FF of the 256 vector interrupt table.

The 16 masked interrupts and a single non-maskable interrupt (NMI) are listed and their functions in Table 2-3. Table 2-4 on page 43 details the vector in the interrupt vector table Hexadecimal and decimal interrupt numbers are also defined as real numbers and decimal protected modes are shown in Table 2-4 on page 43.
