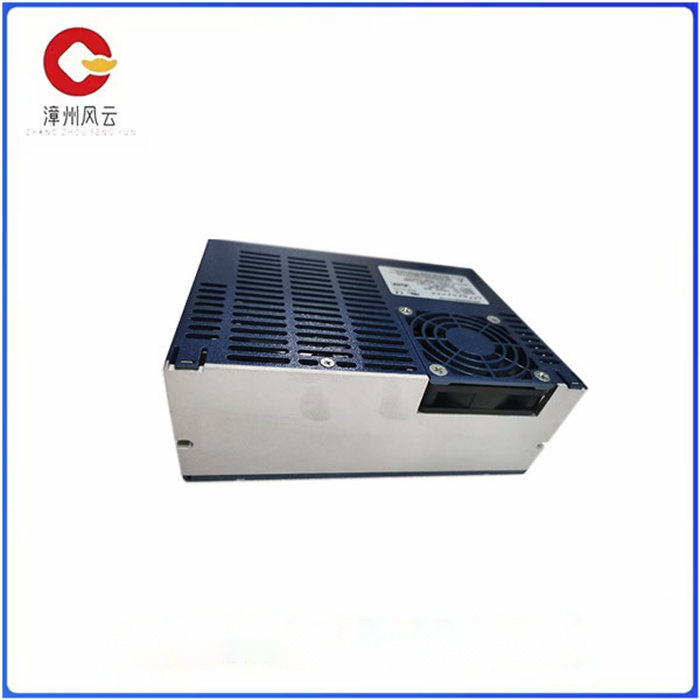

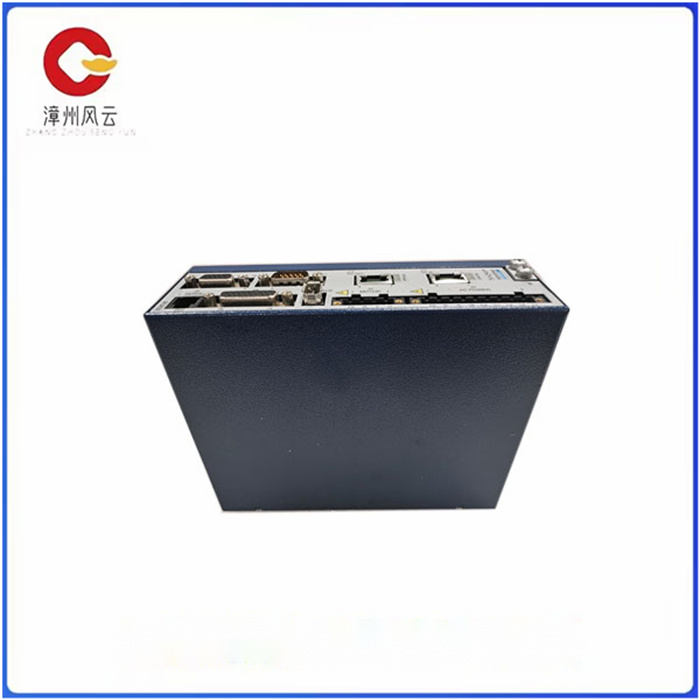

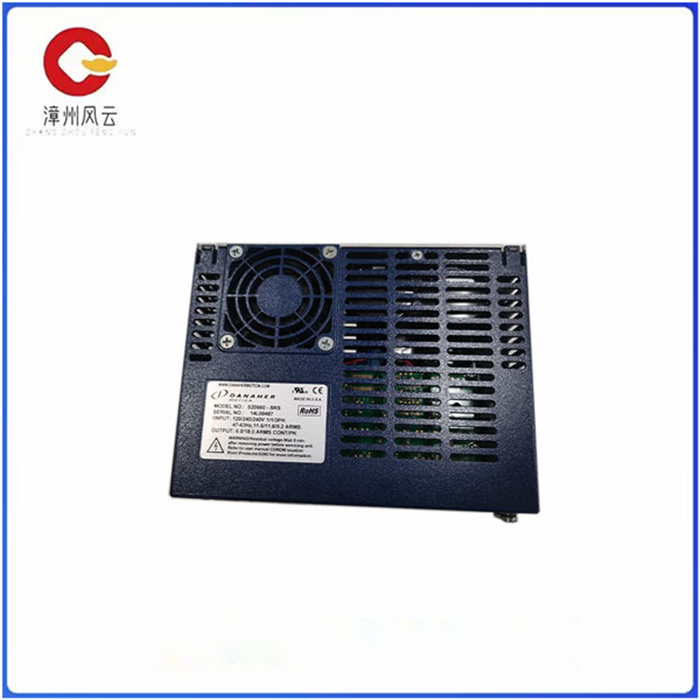

S20260-SRS  KOLLMORGEN 交流伺服控制器

S20260-SRS  KOLLMORGEN 交流伺服控制器

特征

适用于 120/240 VAC 和 20-90 VDC 操作，额定电流范围为 1.5 安培有效值连续至 48 安培有效值峰值

24 位高分辨率反馈

3-5 kHz 高性能电流环路带宽

带有电子电机铭牌的智能反馈装置无需驱动参数设置和伺服回路调整，允许在大多数应用中即插即用调试

标准功能包括扭矩和速度控制底座、电子传动装置、高达 18 位模拟参考输入和编码器等效输出

提供支持分度或基于 SynqNet™ 的可编程运动控制的选项

符合 UL 508C、CE、EN50178、EN61800-C 和 Semi F47 标准

独立的“保持活动”电源输入允许从紧急停止条件中快速恢复

好处

宽功率范围允许在整个机器中部署单个驱动器系列

占地面积小，允许使用较小的机柜，或安装在靠近使用点的位置

光隔离输入/输出、正向锁定连接器和全面故障保护，可延长机器使用寿命并免受意外损坏

专为提高机器吞吐量而设计的高性能系统

易于使用的图形用户界面减少了工程和支持时间

降低总体成本

S20260-SRS  KOLLMORGEN 交流伺服控制器

trait

Suitable for 120/240 VAC and 20-90 VDC operation, rated current range is 1.5 ampere RMS continuous to 48 ampere RMS peak

24-bit high resolution feedback

3-5 kHz High performance current loop bandwidth

Intelligent feedback devices with electronic motor nameplates eliminate drive parameter setting and servo loop adjustment, allowing plug-and-play debugging in most applications

Standard features include torque and speed control mounts, electronic drives, up to 18-bit analog reference inputs, and encoder equivalent outputs

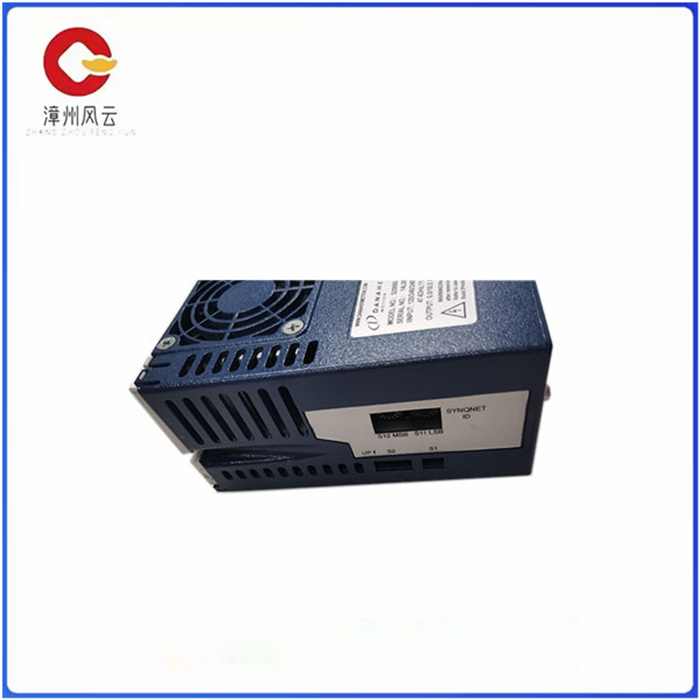

Options to support indexing or SynqNet™ -based programmable motion control

Meets UL 508C, CE, EN50178, EN61800-C and Semi F47 standards

Separate "Stay active" power inputs allow quick recovery from emergency stop conditions

advantage

The wide power range allows a single drive family to be deployed throughout the machine

The small footprint allows for the use of smaller cabinets or installation close to the point of use

Optical isolation input/output, forward-locking connectors and comprehensive fault protection extend machine life and protect against accidental damage

High-performance systems designed to increase machine throughput

The easy-to-use graphical user interface reduces engineering and support time

Reduce overall cost
