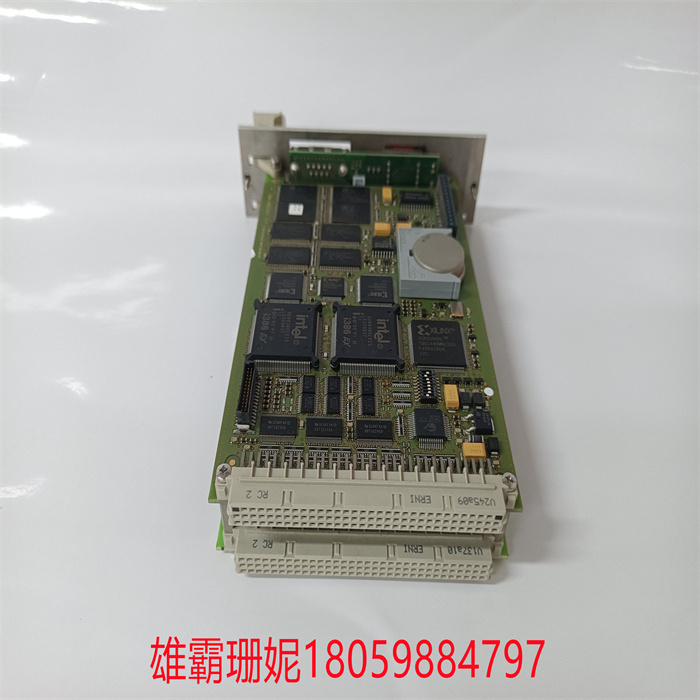

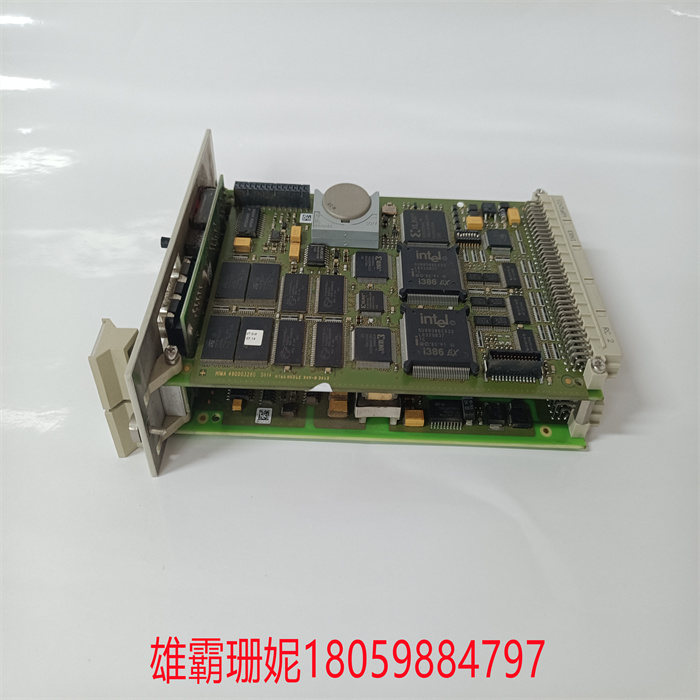

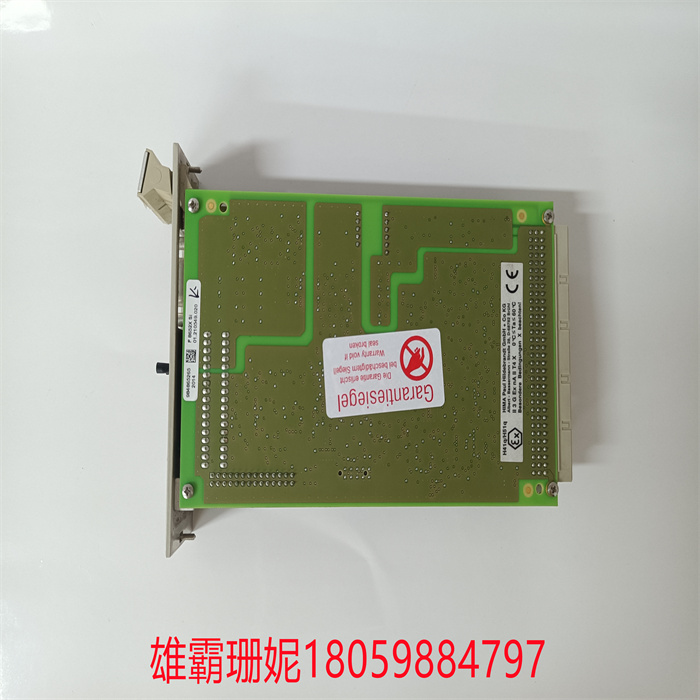

HIMA F8652X 984865265 Modbus HIQuad 中央控制模块

HIMA F8652X 984865265 Modbus HIQuad 中央控制模块

3.2.4 24 V直流电源和配电有关24 V DC电源电压连接的信息，请参阅B 4230，接线组件套件和第3.8章，I/O级别。3.2.5 5 V直流电源和配电5V直流电源不必单独布线，因为它已经作为子框架的一部分安装。

CPU、接口控制以及I/O模块的数据寄存器。它由一个24伏直流时钟产生/带有F 7130A标识的5 V直流电源模块。电源模块的5V DC输出电压（用于CPU、I/O和I/O），以及接口）在中央单元上被监控，检查欠压或故障。如果电源模块出现故障，操作系统将为用户的程序通过具有该信息的系统变量。

3.2.4 24 V DC Power Supply and Distribution For information on voltage connections for 24 V DC power supplies, see B 4230, Wiring Assembly Kit, and Chapter 3.8, I/O Levels. 3.2.5 5V DC Power Supply and distribution The 5V DC power supply does not have to be wired separately as it is already installed as part of the subframe.

Data registers for CPU, interface control, and I/O modules. It is generated by a 24 volt DC clock / 5 V DC power module with the F7130A logo. The 5V DC output voltage of the PSU (for CPU, I/O, and I/O), as well as the interface) is monitored on the central unit to check for undervoltage or failure. If the power module fails, the operating system will pass the system variable with this information for the user's program.
