531X303MCPBDG1双系统监测模块燃机卡件是一种用于监测燃机运行状态的关键组件。它主要用于通用电气公司制造的几种较老的、现已废弃的通用驱动系统中，如DC-300驱动器。尽管这些系统较旧，但它们仍然是工业应用中灵活且复杂的系统。

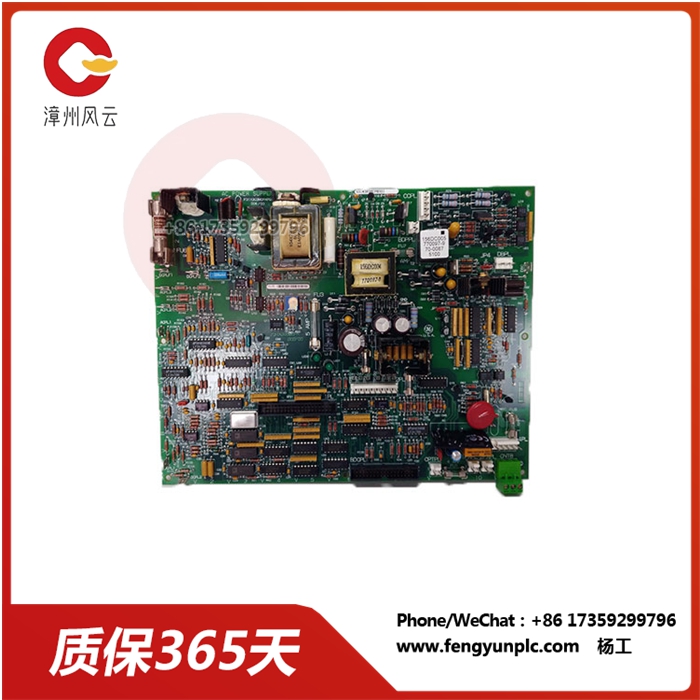

531X303MCPBDG1模块具有多个连接器，用于与其他板和板外组件进行通信。这些连接器包括小型三螺钉端子板、垂直引脚电缆连接器和几个接头连接器，以及插入式连接器，它们通常位于电路板的边缘。此外，该模块还配备了五个大保险丝和三个小保险丝，其中包括一个5安培和一个2安培的保险丝，以确保其稳定运行。

该模块上还有跳线开关、两个绿色LED指示灯、三个变压器、六个散热器、二十个晶体管、一个继电器、二十多个电阻网络阵列和一个金属氧化物变阻器。这些组件共同工作，确保模块能够准确、可靠地监测燃机的运行状态。

总的来说，531X303MCPBDG1双系统监测模块燃机卡件是一款功能强大、性能稳定的工业自动化组件。它能够有效地监测燃机的运行状态，为工业生产的顺利进行提供有力保障。如需更多关于该模块的信息或技术支持，建议直接联系相关供应商或制造商。

531X303MCPBDG1   双系统监测模块 燃机卡件

The gas turbine clamp of 531X303MCPBDG1 dual system monitoring module is a key component for monitoring gas turbine operation status. It is primarily used in several older, now obsolete general-purpose drive systems made by General Electric, such as the DC-300 drive. Although these systems are older, they are still flexible and complex systems for industrial applications.

The 531X303MCPBDG1 module has multiple connectors for communication with other board and off-board components. These connectors include small three-screw terminal boards, vertical pin cable connectors, and several splice connectors, as well as plug-in connectors, which are usually located on the edge of the board. In addition, the module is equipped with five large fuses and three small fuses, including a 5 amp and a 2 amp fuse, to ensure its stable operation.

The module also has jumper switches, two green LED indicators, three transformers, six heat sinks, twenty transistors, a relay, more than two dozen resistor network arrays, and a metal oxide rheostat. These components work together to ensure that the module can accurately and reliably monitor the operating status of the gas turbine.

In general, the 531X303MCPBDG1 dual system monitoring module gas turbine card is a powerful and stable industrial automation component. It can effectively monitor the running state of gas turbine and provide a strong guarantee for the smooth progress of industrial production. For more information or technical support on this module, it is recommended to contact the relevant supplier or manufacturer directly.
