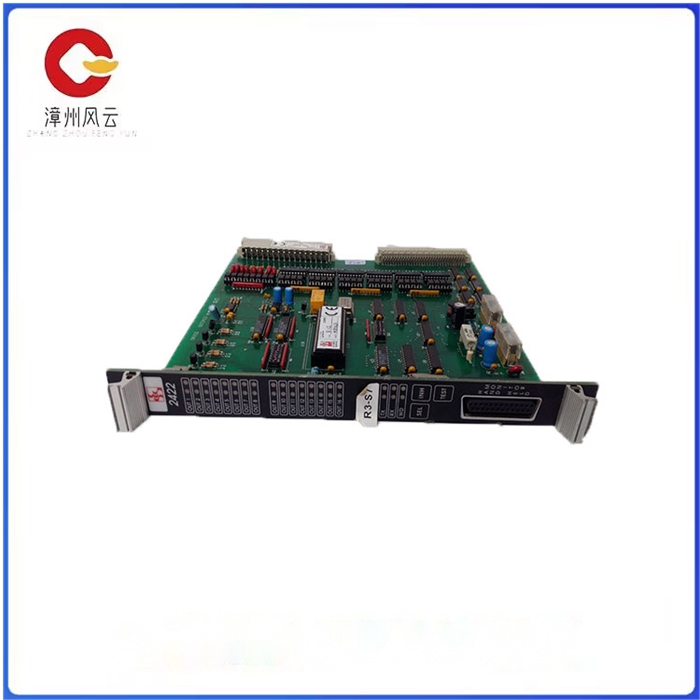

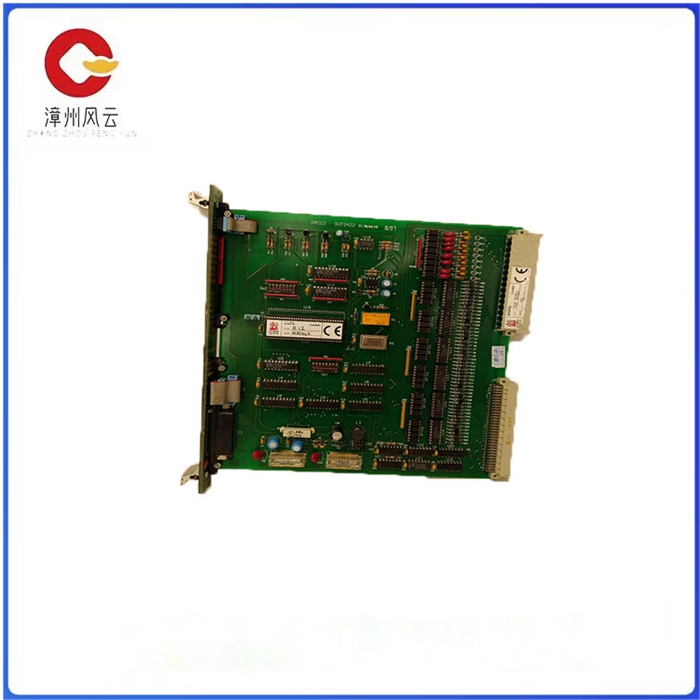

2422-OUT2422 处理器模块 可靠的控制功能

2422-OUT2422 处理器模块 可靠的控制功能

2422-OUT2422 处理器模块，也称作中央处理器（CPU）模块，是可编程控制器（PLC）的核心部分。

它主要由微处理器（CPU芯片）和存储器组成，用于执行PLC系统程序和用户程序，完成各种逻辑运算、算术运算以及其他控制功能。CPU模块接收并存储从编程器或其他外部设备输入的用户程序和数据。它还负责检查电源、存储器、I/O模块以及警戒定时器的状态，并能诊断用户程序中的语法错误。

此外，CPU模块根据运算结果更新相关标志位的状态和输出状态寄存器的内容，通过输出状态寄存器的位状态或数据寄存器的内容实现输出控制、制表打印、数据通信等功能。2422-OUT2422 处理器模块（CPU模块）是可编程控制器的大脑和心脏，它负责处理各种数据和控制信号，以实现精确、可靠的控制功能。

2422-OUT2422 处理器模块 可靠的控制功能

The 2422-OUT2422 processor module, also known as the Central processing unit (CPU) module, is the core part of the programmable controller (PLC).

It is mainly composed of a microprocessor (CPU chip) and memory, used to execute PLC system programs and user programs, complete a variety of logic operations, arithmetic operations and other control functions. CPU modules receive and store user programs and data input from programmers or other external devices. It also checks the status of power supplies, memory, I/O modules, and alert timers, and can diagnose syntax errors in user programs.

In addition, the CPU module updates the status of the relevant flag bit and the content of the output status register according to the result of the operation, and realizes the output control, tabulation printing, data communication and other functions through the output status register or the content of the data register. The 2422-OUT2422 processor module (CPU module) is the brain and heart of the programmable controller, which is responsible for processing various data and control signals to achieve accurate and reliable control functions.
