IS200TBAIH1CCC 微处理器扩展板 用于从各种传感器

IS200TBAIH1CCC 微处理器扩展板 用于从各种传感器

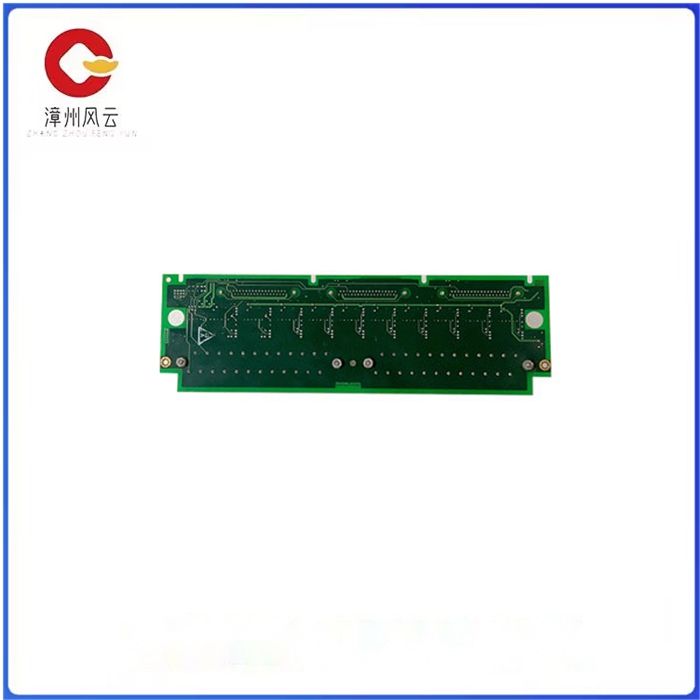

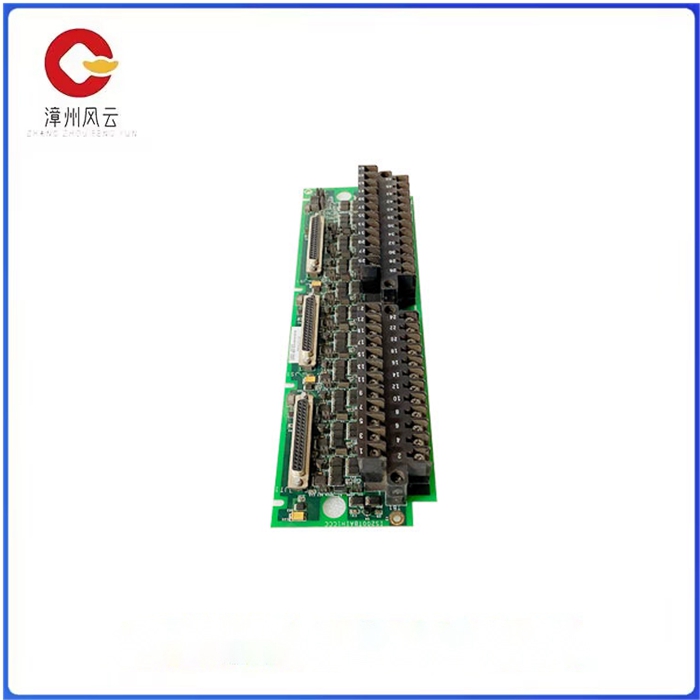

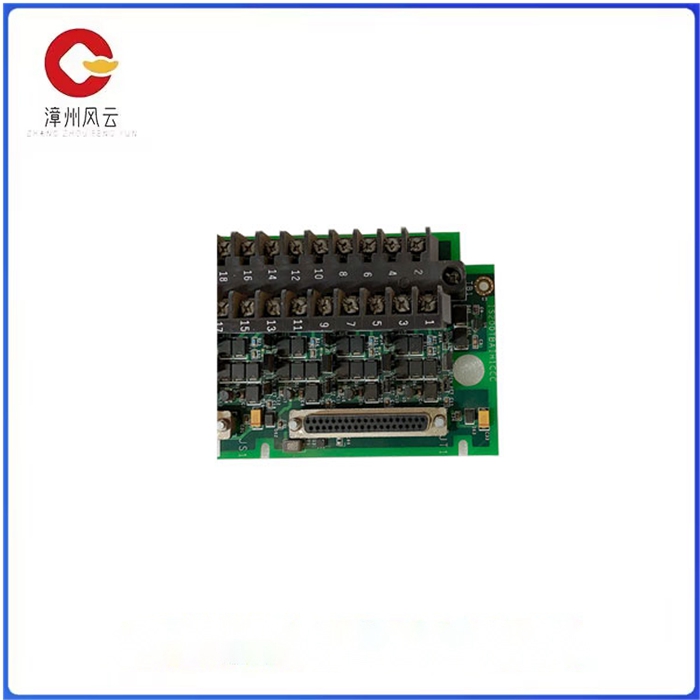

IS200TBAIH1CCC是一个长印刷电路板与各种各样的电子元件。IS200TBAIH1CCC上最大的部件是两个长黑色端子块，固定在左边边缘。这些端子座被标识为TB1和TB2。

两个端子块都可以包含多达十二(12)个看起来像立方体的银金属端子。坐在IS200TBAIH1CCC的对面是三个(3)长插孔连接器端口。连接器端口每个有三十七(37)个小母连接器，可用于附加额外的组件或板到IS200TBAIH1CCC。连接器标识为JT1、JS1和JR1。IS200TBAIH1CCC的中心被各种不同的部件所占据。IS200TBAIH1CCC上至少有10个晶体管，大部分排列在中间。十(10)个可变电阻或电位器也沿着IS200TBAIH1CCC的中心对齐。

在IS200TBAIH1CCC上可以看到二十(20)对的跳线引脚。每一对跳线引脚由红色跳线连接。将引脚对连接在一起可以调节IS200TBAIH1CCC的功能。

IS200TBAIH1CCC 微处理器扩展板 用于从各种传感器

IS200TBAIH1CCC is a long printed circuit board with a wide variety of electronic components. The largest pieces on the IS200TBAIH1CCC are two long black terminal blocks that are fixed to the left edge. These terminal blocks are identified as TB1 and TB2.

Both terminal blocks may contain up to twelve (12) silver metal terminals that look like cubes. Sitting opposite the IS200TBAIH1CCC are three (3) long jack connector ports. Connector ports Each has thirty-seven (37) small female connectors that can be used to attach additional components or boards to the IS200TBAIH1CCC. Connectors are identified as JT1, JS1, and JR1. The center of the IS200TBAIH1CCC is occupied by a variety of different components. There are at least 10 transistors on the IS200TBAIH1CCC, most of them arranged in the middle. Ten (10) variable resistors or potentiometers are also aligned along the center of the IS200TBAIH1CCC.

Twenty (20) pairs of jumper pins can be seen on IS200TBAIH1CCC. Each pair of jumper pins is connected by a red jumper. Connecting the pin pairs together can regulate the function of the IS200TBAIH1CCC.
