IS200JPDDG1AAAA是GE Mark VI板组件。MKVI系统是通用电气(General Electric)的Speedtronic生产线之一，用于管理重型燃气轮机和蒸汽轮机已有几十年的历史。马克六世是围绕一个中央控制模块建造的。该模块负责系统的大部分控制、监控和保护。

IS200JPDDG1AAAA是一款直流配电板。该板是一个分支电路板，在Mark VI系统中有几个分支电路板，用于为核心PDM元件的输出提供额外的ac/dc功率分配。IS200JPDDG1AAAA用于125 VDC,24V或48V的单输入。

IS200JPDDG1AAAA是一个小矩形板，具有很少的组件。它由六个开/关开关组成，每个开关对应两个保险丝。保险丝被标记为正或负(FU1P/FU1N)。每个开/关开关对应于位于一个边缘的2位插头。这些插头被标记为JD1、JD2、JD3、JD4、JD5和JD6。该板具有两个以上的双位置插头和两个以上的插头具有更多的位置位于其表面。每个插头都有标签。

IS200JPDDG1AAA 高性能工业控制器

IS200JPDDG1AAAA is a GE Mark VI board component. MKVI systems, one of General Electric's Speedtronic lines, have been used to manage heavy-duty gas and steam turbines for decades. The Mark VI is built around a central control module. This module is responsible for most of the control, monitoring and protection of the system.

The IS200JPDDG1AAAA is a DC power distribution board. The board is a branch board, and there are several branch boards in the Mark VI system that provide additional ac/dc power distribution for the output of the core PDM component. IS200JPDDG1AAAA is used for 125 VDC,24V or 48V single input.

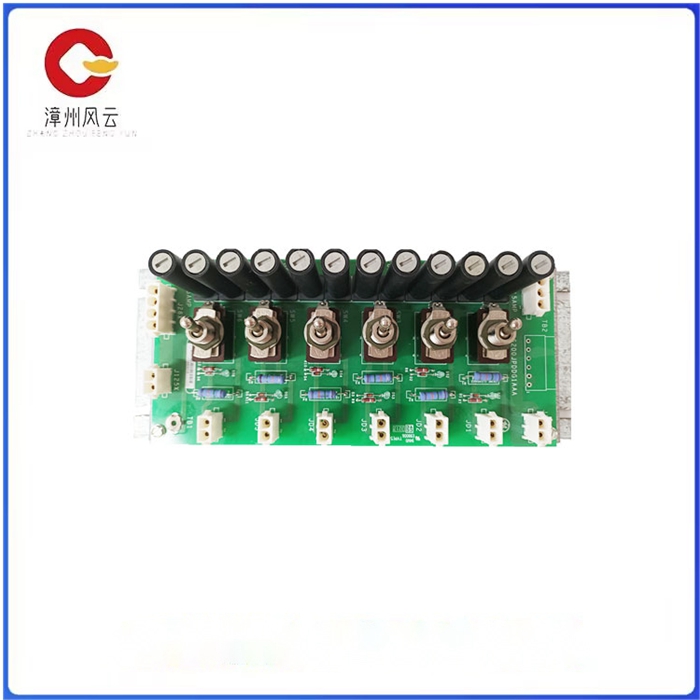

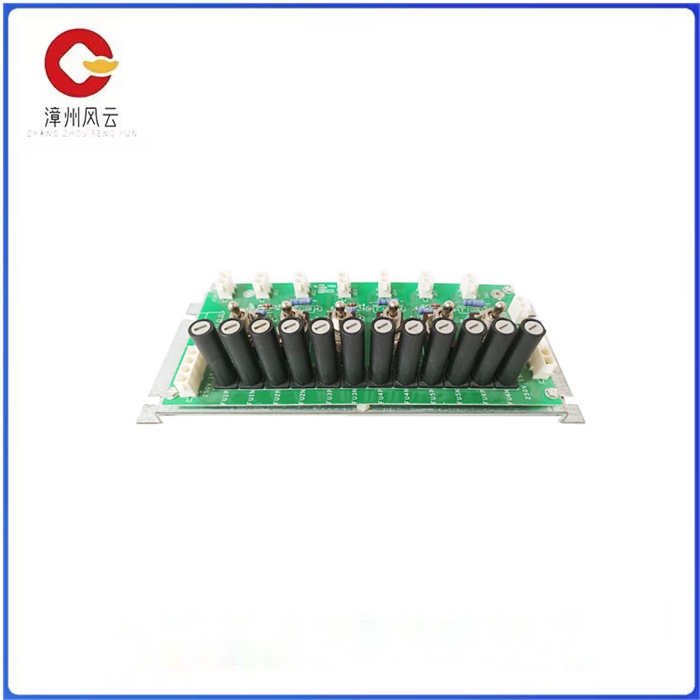

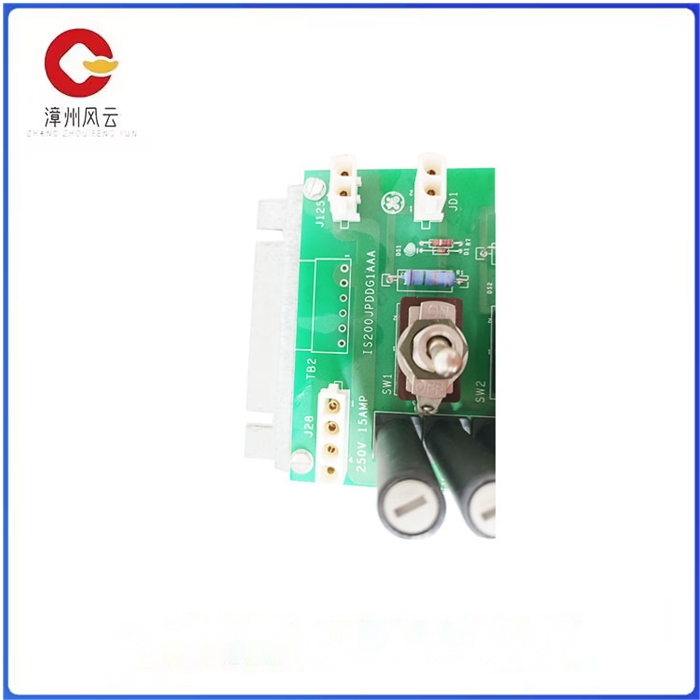

The IS200JPDDG1AAAA is a small rectangular board with very few components. It consists of six on/off switches, each corresponding to two fuses. The fuse is labeled positive or negative (FU1P/FU1N). Each on/off switch corresponds to a 2-bit plug located on one edge. These plugs are labeled JD1, JD2, JD3, JD4, JD5, and JD6. The board has more than two two-position plugs and more than two plugs have more positions located on its surface. Each plug has a label.
