IS200DSPXH1DBD 是一个带有附加前面板的小矩形板

GE Mark VI IS200DSPXH1DBD是GE为Mark VI系列设计的印刷电路板。这种板是通用电气的speedtronic系列的一部分。

IS200DSPXH1DBD是一种印刷电路板组件，最初由GE制造并分发，作为其Mark VI Speedtronic生产线的一部分。Mark VI是作为燃气和蒸汽工业涡轮系统的控制系统而创建的，通常用于能源系统。IS200DSPXH1DBD专门用于创新系列驱动器和EX2100励磁器。

IS200DSPXH1DBD是一个带有附加前面板的小矩形板。它的功能是作为数字信号处理器控制板，并设计了一个数字信号处理器，连接到执行自定义逻辑功能的ASIC(专用集成电路)。板上装载了存储在其闪存中的板载固件。

该板有几个输入/输出连接器，包括两个在其连接的前面板。面板也有两个嵌入式LED指示灯(一个绿色和一个红色)，有助于向处理器发出警报。此外，该板具有直角背板连接器，具有多种功能。这些包括数据总线、地址总线、控制输出信号、键盘接口、工具接口和VCO输入。

IS200DSPXH1DBD 是一个带有附加前面板的小矩形板

The GE Mark VI IS200DSPXH1DBD is a printed circuit board designed by GE for the Mark VI series. The board is part of General Electric's speedtronic series.

The IS200DSPXH1DBD is a printed circuit board component originally manufactured and distributed by GE as part of its Mark VI Speedtronic line. The Mark VI was created as a control system for gas and steam industrial turbine systems and is commonly used in energy systems. The IS200DSPXH1DBD is designed for the innovative series of drives and EX2100 exciters.

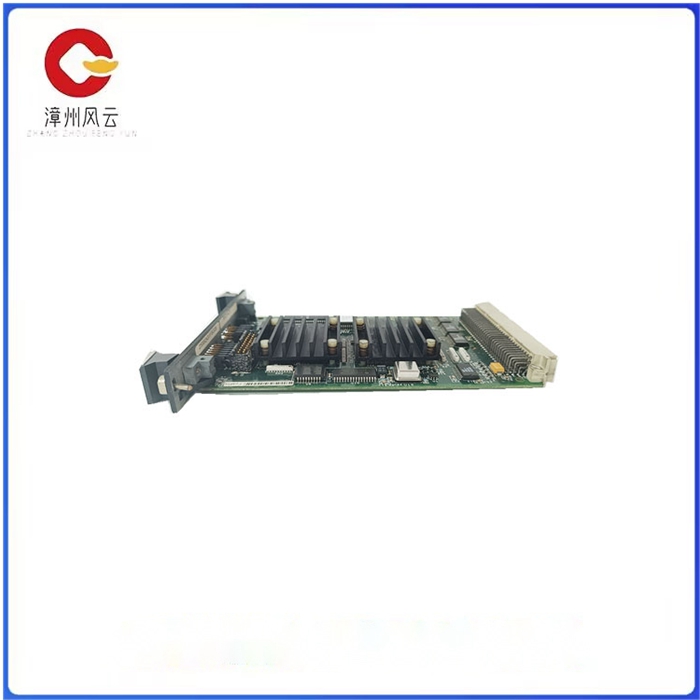

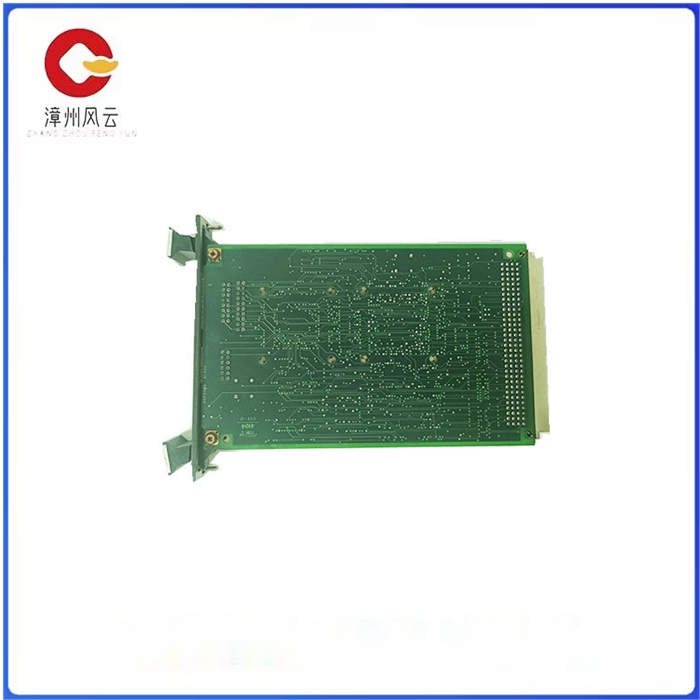

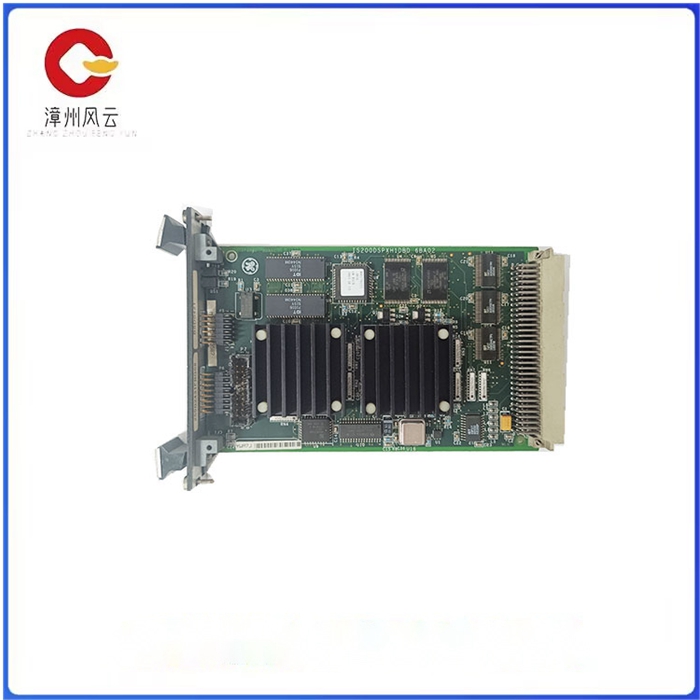

The IS200DSPXH1DBD is a small rectangular board with an attached front panel. It functions as a digital signal processor control board and is designed with a digital signal processor connected to an ASIC(application-specific integrated circuit) that performs custom logic functions. The board is loaded with onboard firmware stored in its flash memory.

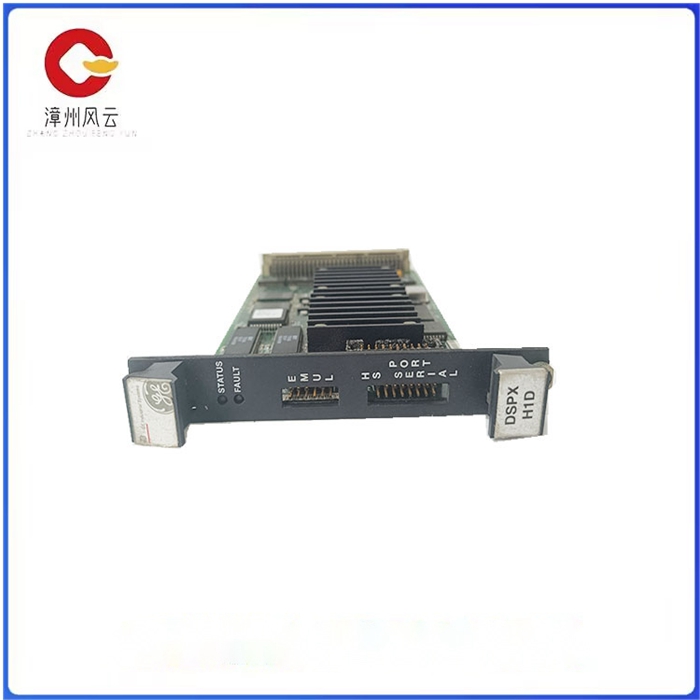

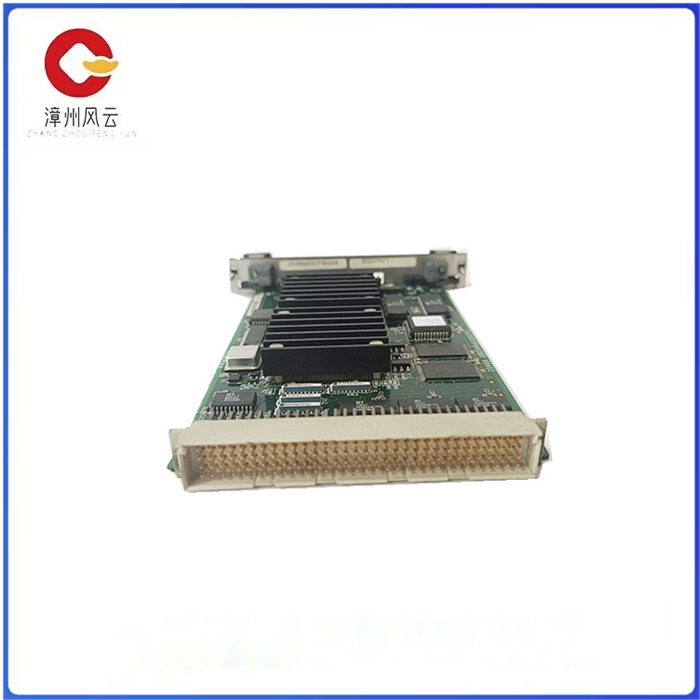

The board has several input/output connectors, including two on its connected front panel. The panel also has two embedded LED indicators (one green and one red) that help alert the processor. In addition, the board has right-angle backplane connectors for a variety of functions. These include data buses, address buses, control output signals, keyboard interfaces, tool interfaces, and VCO inputs.
