IC660BBD022 16电路启用源 I/O模块

IC660BBD022 是一款支持 Genius 协议的模块，属于 Genius I/O Block 系列分布式 I/O 模块。该设备是独立的单节点 I/O 站，具有十六 (16) 个 I/O 电路，支持源接线配置。

IC660BBD022 具有十六 (16) 个 I/O 电路，工作电压为 24 / 48 VDC。该模块的每个通道都可配置为输入和输出，并能通过所提供的 Genius I/O 总线端子进行数据交换，允许在 GE 可编程逻辑和自动化控制器 (PLC / PAC) 以及总线控制器、PC 接口模块、人机界面 (HMI) 等模块和第三方设备之间进行通信。该模块是面板安装的独立设备，采用开放式外壳，因此必须安装在外壳内，以提供足够的工业污染物防护。

该模块可远程安装，与伙伴设备的最大距离为 7500 英尺。它还允许菊花链连接其他 I/O 模块，形成 Genius I/O 网络。可通过安装在终端组件顶部的 HHM 端口，使用手持监视器 (HHM) 对模块的操作进行本地配置。也可使用主控制器的编程软件进行远程配置。模块的输入通道接受 12 / 24 VDC 标称电压，具有 1.7 ms 的启动延迟。同样，输出通道每个电路产生 2 安培电流，最大接通延迟为 1 毫秒。该模块由两(2)个组件组成，特别是 IC660EBD020 电子组件和 IC660TBD022 端子底座组件。

IC660BBD022 16电路启用源 I/O模块

IC660BBD022 is a module that supports the Genius protocol and belongs to the Genius I/O Block series of distributed I/O modules. The device is an independent, single-node I/O station with sixteen (16) I/O circuits that support source wiring configurations.

The IC660BBD022 has sixteen (16) I/O circuits and operates at 24/48 VDC. Each channel of the module can be configured for input and output, and data can be exchanged through the provided Genius I/O bus terminals. Allows communication between GE programmable logic and automation controllers (PLCS/PACs) and modules such as bus controllers, PC interface modules, Human machine interfaces (Hmis), and third-party devices. The module is a panel mounted stand-alone device with an open housing, so it must be installed inside the housing to provide adequate protection against industrial contaminants.

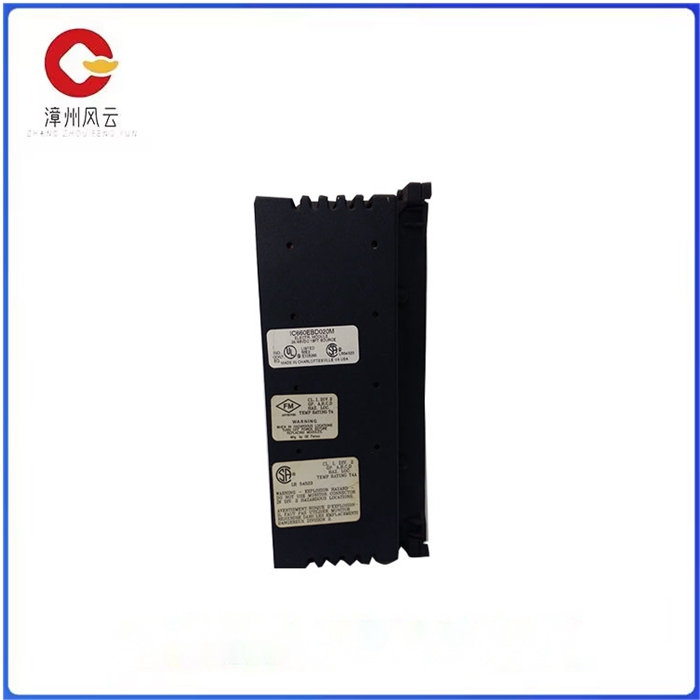

The module can be installed remotely, with a maximum distance of 7,500 feet from partner equipment. It also allows Daisy chains to connect other I/O modules to form the Genius I/O network. The operation of the module can be configured locally using the Handheld Monitor (HHM) via the HHM port mounted on top of the terminal component. It can also be configured remotely using the programming software of the main controller. The input channel of the module accepts 12/24 VDC nominal voltage with a start-up delay of 1.7 ms. Similarly, the output channel generates 2 amps of current per circuit, with a maximum on-delay of 1 millisecond. The module consists of two (2) components, in particular the IC660EBD020 electronic assembly and the IC660TBD022 terminal base assembly.
