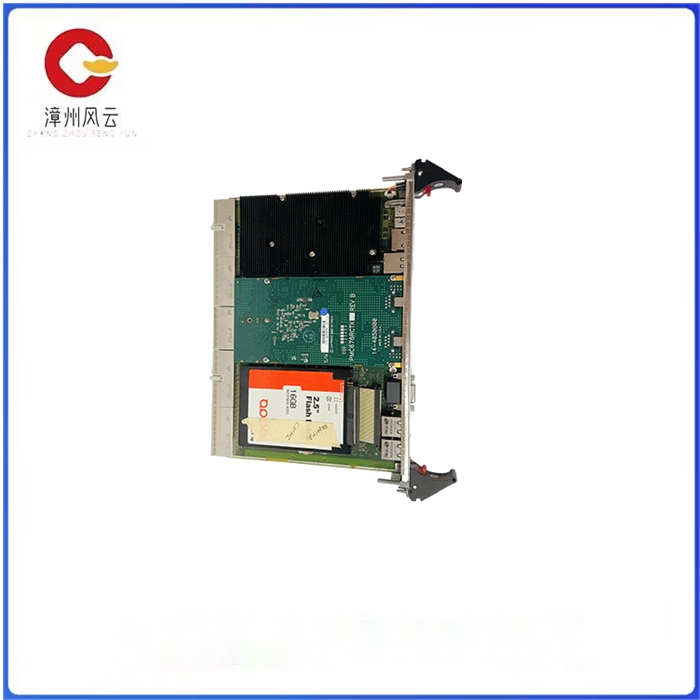

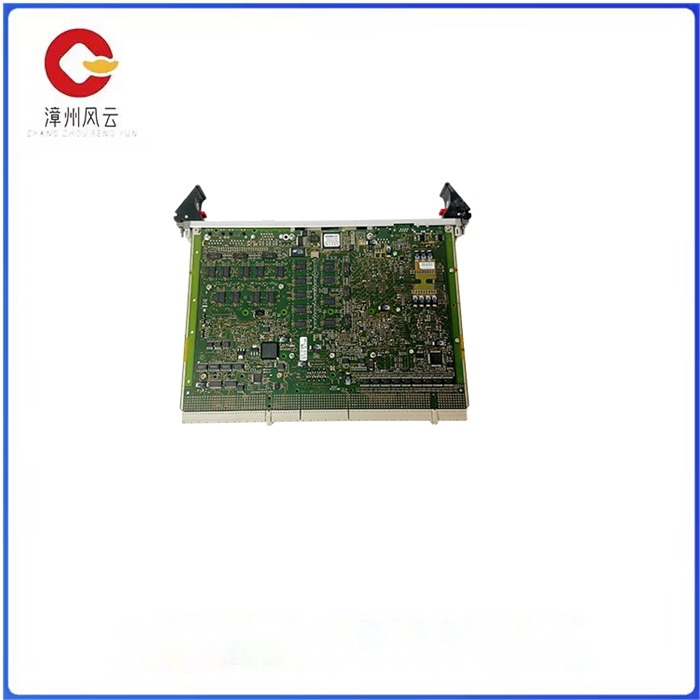

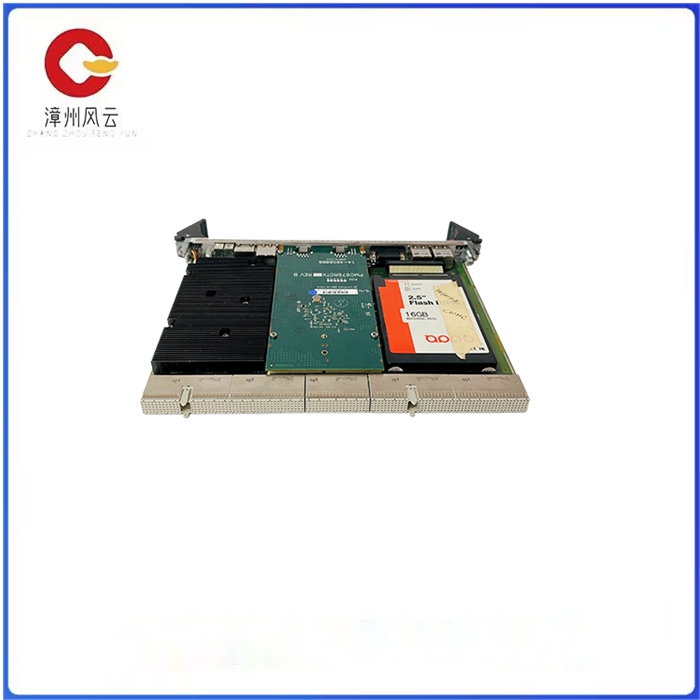

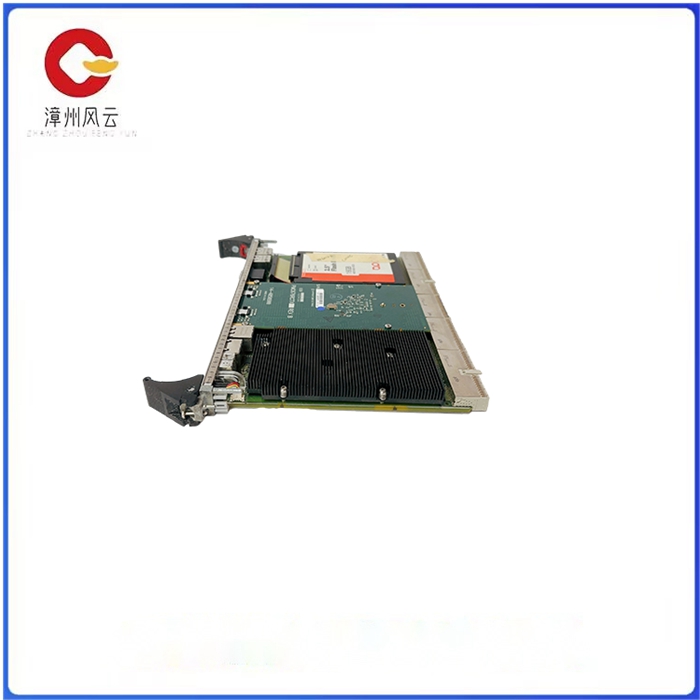

CT11T7F10PN1 PMC676RCTX V2.3 01 16 C1145 CR11 V2.x 千兆以太网

PMC676RCTX是一种千兆以太网PMC提供单路或双路10/100/1000BaseTX以太网接口。该卡能够在其每个信道上进行全双工操作。以太网/PCI/PCI-X接口包括为每个端口提供强大的DMA引擎深度FIFO缓冲器（64K字节）。这保证了连续、全带宽操作最小PCI开销。此外，卡片可以容纳边缘PCI系统使用GE PMC239适配器进行快速原型和开发。低成本、有效的互连两个PMC676RCTX板可以直接通过简单的“交叉”布线。这配置创建全双工1000Mbit专用数据路径-提供高性能以非常低的成本提供带宽。

CT11T7F10PN1 PMC676RCTX规格组件：

•双端口以太网：82546

•单端口以太网：82545

电源规格

•功率（总计）：6瓦

•3.3伏时：0.9安培

•在5 V时：0.6安培

以太网特性

•端口：2 x 10/100/1000BaseTX

•端口路由：

正面：RJ-45

PCI总线特性

•信号：3 V和5 V

•规格：2.2

•速度：33/66 MHz

•宽度：32/64

CT11T7F10PN1 PMC676RCTX V2.3 01 16 C1145 CR11 V2.x 千兆以太网

The PMC676RCTX is a Gigabit Ethernet PMC that provides a single or dual 10/100/1000BaseTX Ethernet interface. The card is capable of full-duplex operations on each of its channels. The Ethernet /PCI/PCI-X interface includes a powerful DMA engine deep FIFO buffer (64K bytes) for each port. This ensures minimal PCI overhead for continuous, full-bandwidth operations. In addition, the card can accommodate edge PCI systems for rapid prototyping and development using the GE PMC239 adapter. Low cost, efficient interconnect two PMC676RCTX boards can be directly routed through simple "cross" wiring. This configuration creates a full-duplex 1000Mbit dedicated data path - providing high performance to provide bandwidth at a very low cost.

CT11T7F10PN1 PMC676RCTX Specification Components:

• Dual-port Ethernet: 82546

• Single-port Ethernet: 82545

Power supply specification

• Power (total) : 6 watts

•3.3 volts: 0.9 amps

• At 5 V: 0.6 amp

Ethernet characteristics

• Port: 2 x 10/100/1000BaseTX

• Port routing:

Front: RJ-45

PCI bus features

• Signal: 3 V and 5 V

• Specifications: 2.2

• Speed: 33/66 MHz

• Width: 32/64
