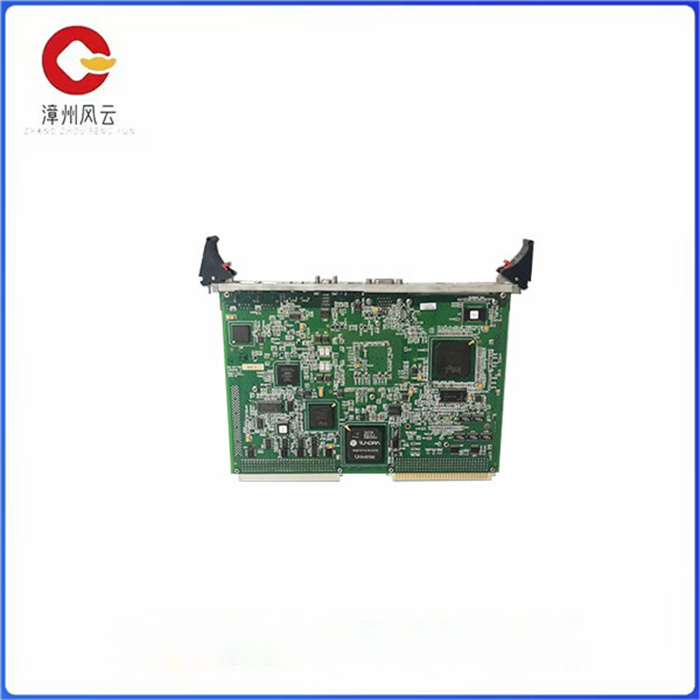

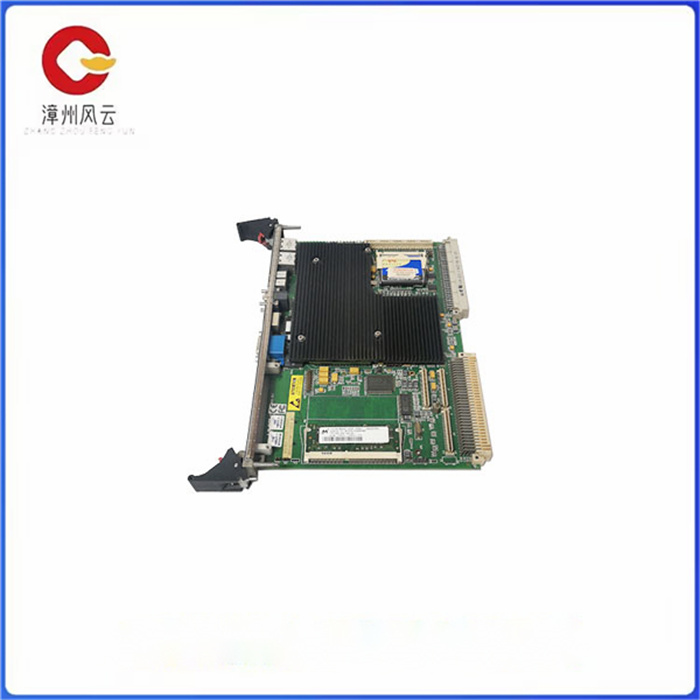

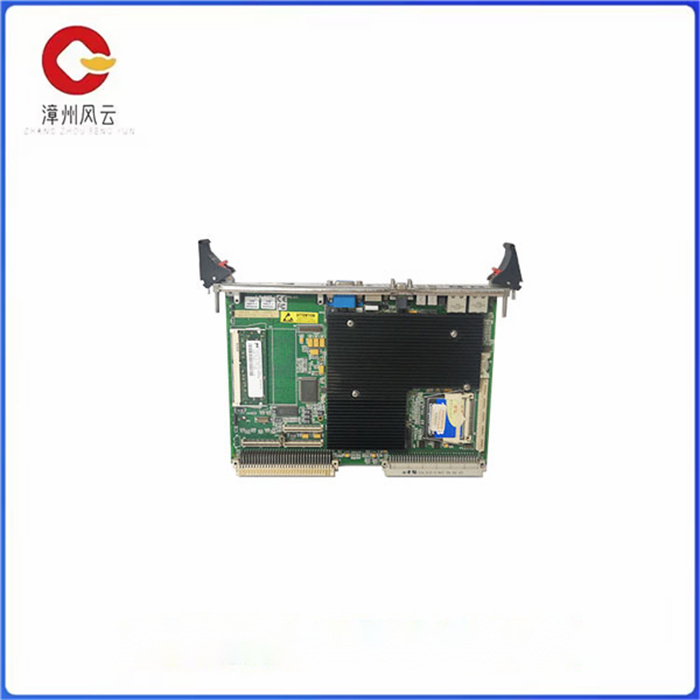

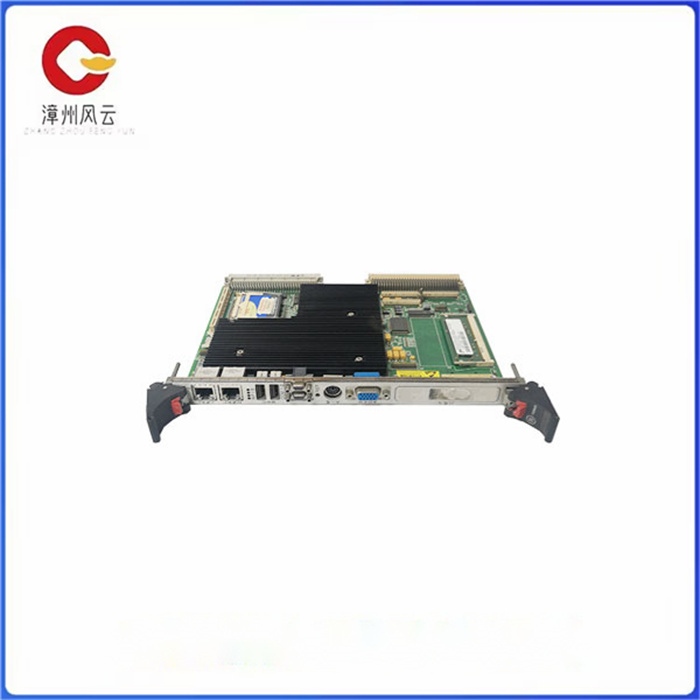

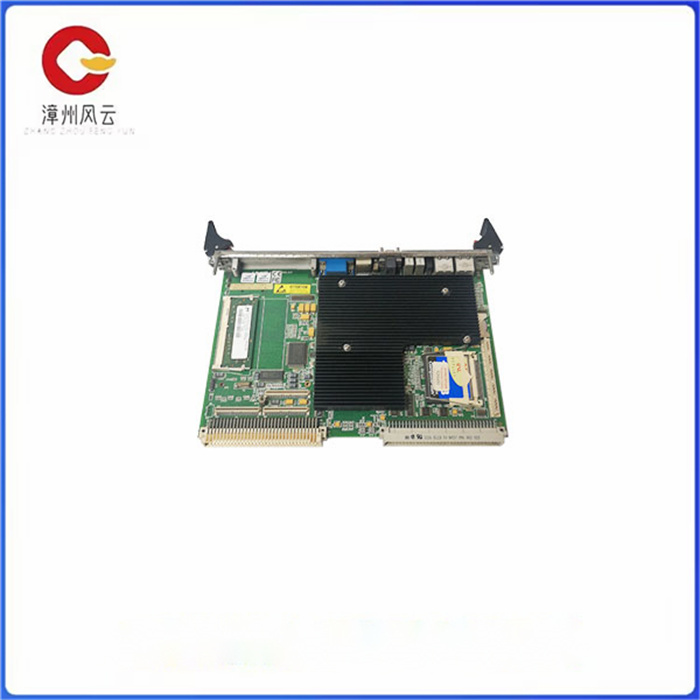

VMIVME-7750-734001 是一款功能齐全的奔腾 III 兼容计算机

VMIVME-7750-734001 是一款功能齐全的奔腾 III 兼容计算机

内置 SVGA 支持，带 4 MB DRAM 显示缓存  IDE 驱动器支持  两个RS232串口  VME P1：标准 VME 连接器  VME P2： VME64 连接器  VMIC 的 VMIVME-7750 是一款功能齐全的奔腾 III 兼容计算机，采用单插槽被动冷却的 Eurocard 外形，采用英特尔 815E 芯片组的先进技术，前端总线速率为 133 MHz。

VMIVME-7750 符合 VME 规范 Rev.C.1，并具有透明的 PCI 到 VME 网桥，允许该板在多 CPU 系统中用作系统控制器或外设 CPU  VMIVME-7750接受一个144针SDRAMSODIMM的最大内存容量为512 MB。这个DRAM是双端口的VME。

BIOS：系统和视频BIOS以可重编程方式提供闪存。  超级VGA控制器：高分辨率图形和VMIVME-7750支持多媒体质量的视频，  内置815E芯片组AGP图形适配器。适配器是由4 MB外部同步DRAM缓存补充具有高带宽64位数据接口。屏幕分  辨率，最多可使用1600 x 1200 x 256色（单视图模式）由图形适配器支持。  以太网控制器：VMIVME-7750支持以太网局域网带有两个Intel以太网控制器（一个82559，另一个   内置于英特尔芯片组ICH2）。10BaseT和100BaseTX选项通过两个RJ45连接器支持。远程局域网引导是一个非常  重要的问题支持。

VMIVME-7750-734001 是一款功能齐全的奔腾 III 兼容计算机

Built-in SVGA support with 4 MB DRAM display cache IDE drive supports two RS232 serial ports VME P1: Standard VME connector VME P2: VME64 Connector VMIC's VMIVME-7750 is a full-featured Pentium III-compatible computer with a single-slot passively cooled Eurocard form factor, advanced technology from the Intel 815E chipset, and a front end bus rate of 133 MHz.

The VMIVME-7750 complies with VME specification Rev.C.1 and has a transparent PCI to VME bridge. Allowing the board to be used as a system controller or peripheral CPU in multi-CPU systems, the VMIVME-7750 accepts a 144-pin SDRAMSODIMM with a maximum memory capacity of 512 MB. This DRAM is a dual-port VME.

BIOS: The system and video BIOS provide flash memory in a reprogrammable manner. Super VGA controller: High resolution graphics and VMIVME-7750 supports multimedia quality video with built-in 815E chipset AGP graphics adapter. The adapter is complemented by a 4 MB external synchronous DRAM cache with a high bandwidth 64-bit data interface. Screen resolution, up to 1600 x 1200 x 256 colors (single view mode) supported by a graphics adapter. Ethernet Controller: The VMIVME-7750 supports Ethernet LAN with two Intel Ethernet controllers (one 82559, the other built into the Intel chipset ICH2). The 10BaseT and 100BaseTX options are supported via two RJ45 connectors. Remote LAN booting is a very important issue to support.
