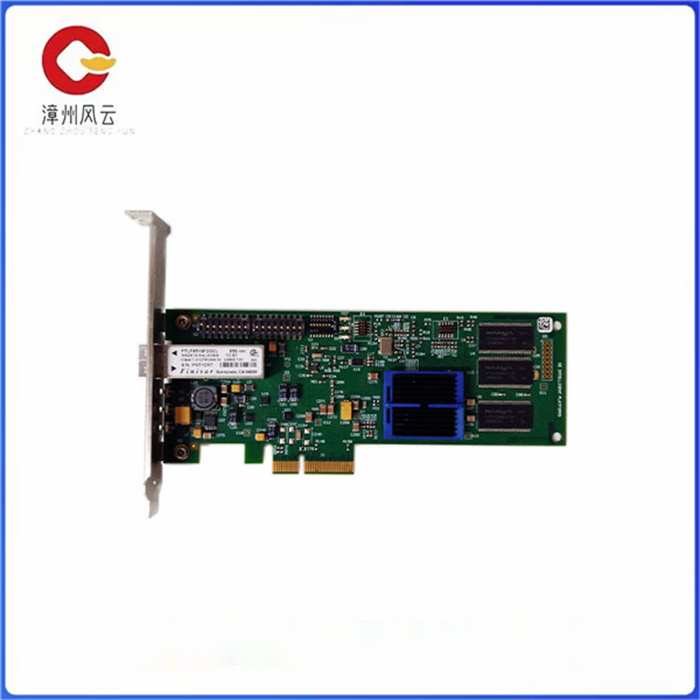

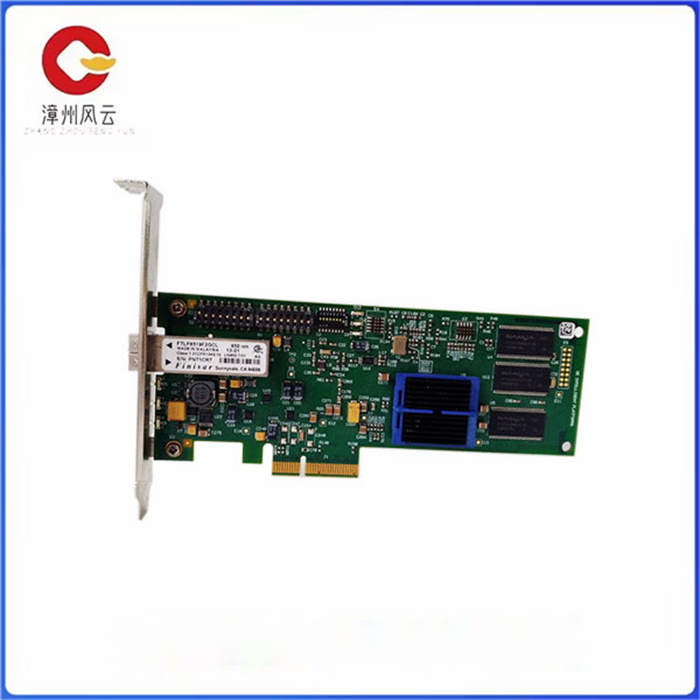

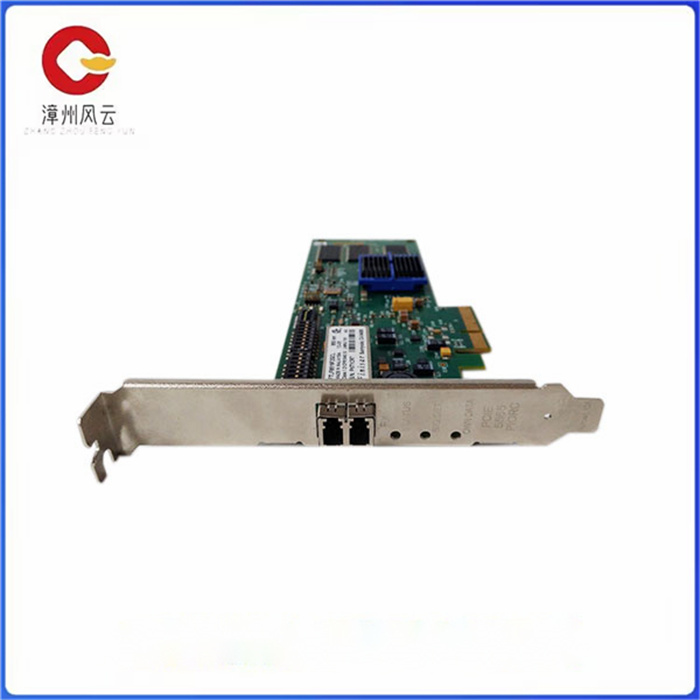

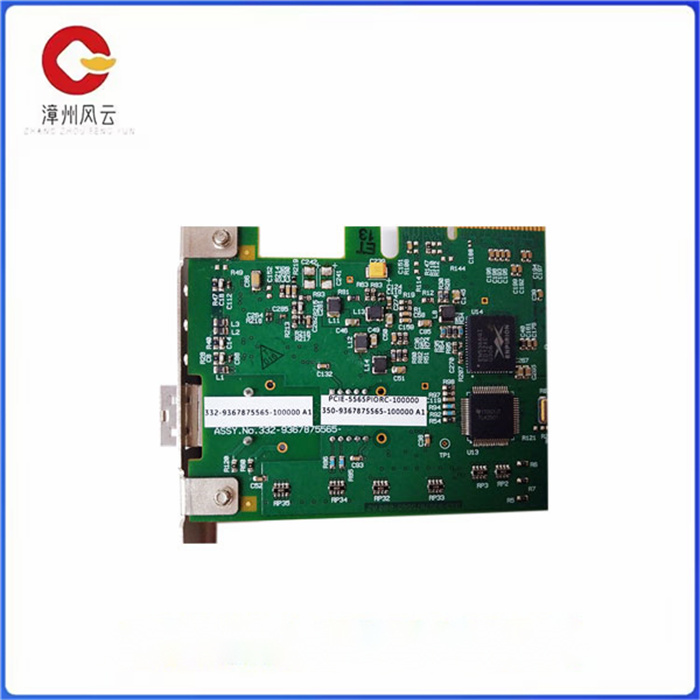

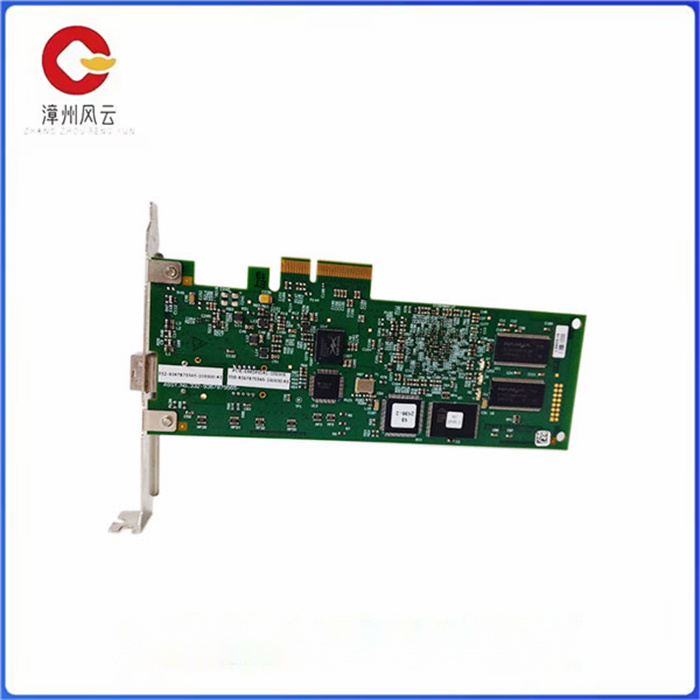

PCIE-5565-PIORC反射式内存节点卡 提供对存储数据

PCIE-5565-PIORC反射式内存节点卡 提供对存储数据

PCIE-5565-PIORC 是光隔离的的数据中继通信产品，可以延长RS-485/422总线网络的通信距离，增强RS-485/422总线网络设备的数目。C2000 S109内置的光电隔离器及DC/DC直流变换器，能提供1500V的隔离电压，快速的瞬态电压抑制器(TVS)可以有效地抑制闪电(Lighting)和ESD,提供每线600W的雷击浪涌保护功率，可以有效的防止雷击和共地干扰。

特点：

→自动流向控制；

→RS485/422自动识别功能；

→防雷，每线600W的雷击浪涌保护功率；

→光电隔离；

→电源隔离，3500V隔离电压；

→接口兼容EIA/TIA的RS-485、RS-422标准

应用：

基本信息

RS-232端

连接器 DB9 (母头)

信号 RXD、TXD、GND

RS-485/422端

信号 T+(485)+、T-(485-)、GND 、R+、R-

RS-485数据流量控制 自动

PCIE-5565-PIORC反射式内存节点卡 提供对存储数据

Pci-5565-piorc is an optically isolated data relay communication product that extends the communication distance of the RS-485/422 bus network and enhances the number of devices in the RS-485/422 bus network. C2000 S109 built-in photoelectric isolator and DC/DC converter, can provide 1500V isolation voltage, fast transient voltage suppressor (TVS) can effectively inhibit lightning (Lighting) and ESD, provide each line 600W lightning surge protection power, can effectively prevent lightning strikes and common ground interference.

Features:

→ Automatic flow control;

→RS485/422 automatic recognition function;

→ Lightning protection, 600W lightning surge protection power per line;

→ photoelectric isolation;

→ Power isolation, 3500V isolation voltage;

→ Interface compatible with EIA/TIA RS-485, RS-422 standards

Applications:

Basic information

RS-232 end

Connector DB9 (female)

Signals RXD, TXD, GND

RS-485/422 end

Signals T+(485)+, T-(485-), GND, R+, R-

RS-485 Data flow control automatically
