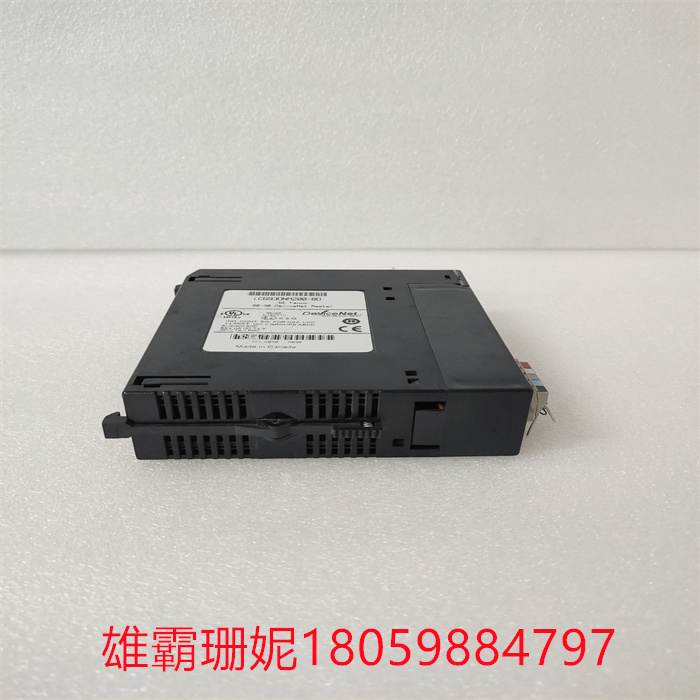

IC693DNM200-BD是一种90-30系列组件，由通用电气发那科公司制造。这是一个单槽DeviceNet主模块，带有一（1）个DeviceNet终端和一（1个）个RS232服务端口。该模块支持125K、250K和500K等标准DeviceNet传输速率，能够容纳255个输入数据字节和255个输出数据字节，最多可容纳63个DeviceNet从设备。

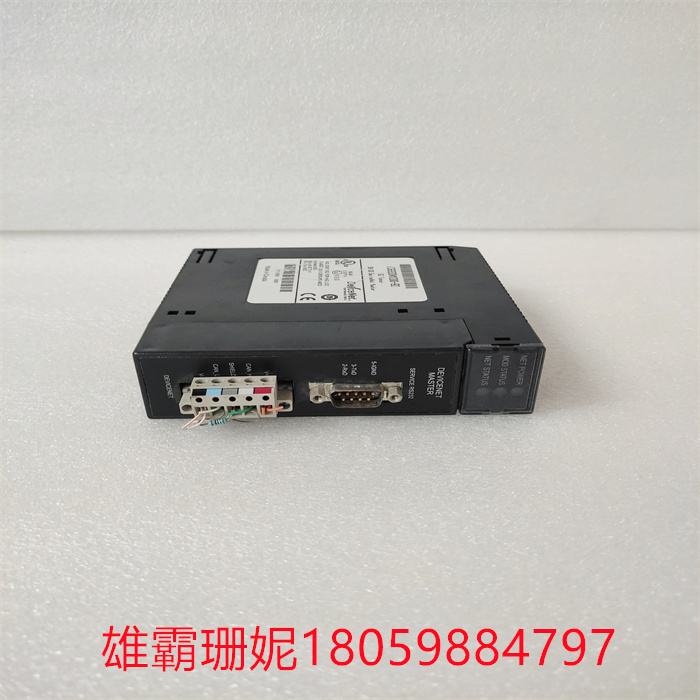

IC693DNM200-BD是一个DeviceNet主模块。该模块是一个单槽通信模块，是90-30系列可编程逻辑控制器（PLC）平台的一部分，该平台由GE Fanuc公司制造，现隶属于艾默生自动化公司。该模块配有一个DeviceNet终端。它还有一（1）个RS232 9针D外壳内孔端口，用作模块服务端口。

IC693DNM200-BD支持DeviceNet协议的所有数据速率，特别是125K、250K和500K传输速率。每个从设备的主设备最多可以传输255字节的输入数据和255字节的输出数据，最多可以向该主模块传输3972字节的输入信息和3972字节输出信息。此外，使用该模块可以建立总共126个I/O连接，因为它能够与多达63个从设备通信，其中每个从设备最多可分配两（2）个I/O站。模块支持和可配置的数据连接有轮询、选通、循环或COS。此DeviceNet主模块还支持显式消息传递、无连接消息管理器（UCMM）和每个从属单元一（1）个代理连接。

he IC693DNM200-BD is a 90-30 series module manufactured by General Electric Fanuc. This is a single-slot DeviceNet main module with one (1) DeviceNet terminal and one (1) RS232 service port. The module supports standard DeviceNet transfer rates of 125K, 250K, and 500K, and is capable of holding 255 input data bytes and 255 output data bytes, up to 63 DeviceNet slave devices.

IC693DNM200-BD is a main DeviceNet module. The module is a single-slot communication module that is part of the 90-30 series Programmable Logic Controller (PLC) platform, manufactured by GE Fanuc and now part of Emerson Automation. The module is equipped with a DeviceNet terminal. It also has one (1) RS232 9-pin D housing bore ports that serve as module service ports.

The IC693DNM200-BD supports all data rates of the DeviceNet protocol, especially 125K, 250K and 500K transfer rates. The master of each slave can transmit up to 255 bytes of input data and 255 bytes of output data, and up to 3972 bytes of input information and 3972 bytes of output information to the master module. In addition, a total of 126 I/O connections can be established using the module, as it is able to communicate with up to 63 slave devices, each of which can be assigned a maximum of two (2) I/O stations. Modules support and configurable data connections such as polling, strobe, loop or COS. This DeviceNet master module also supports explicit messaging, connectionless message manager (UCMM), and one (1) proxy connections per slave cell.
