IS2020RKPSG2A是一个VME电源模块，是Mark VI系统的一部分。VME机架电源的缩写是RKPS。有关该电源的信息可在通用电气工业系统手册GEH-6421E中找到。

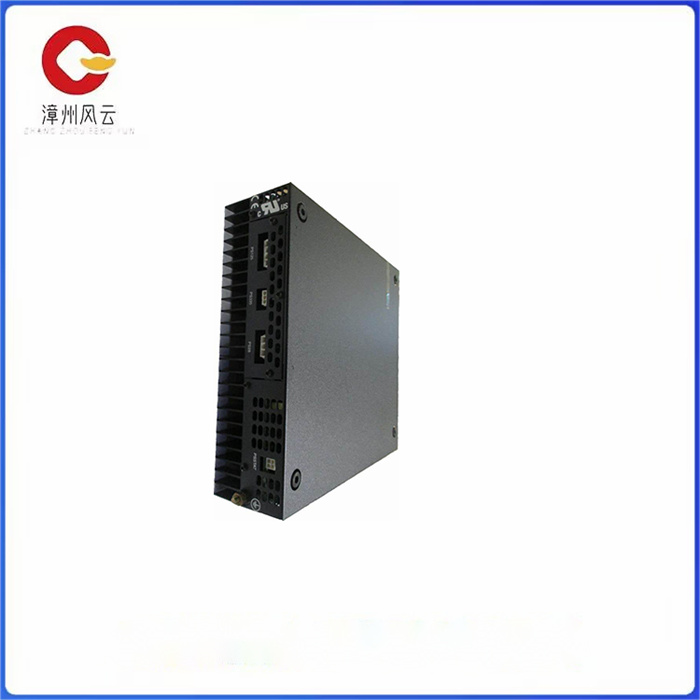

IS2020RKPSG2A设计为独立模块。它有一个前面板，包括三个led(黄色、红色、绿色)和一个开关组件。面板上贴有“电源”标签，并有记录修订号、GE目录号和序列号的位置，以便于参考。模块的侧面设计有许多金属翅片。模块的这一侧用作大型散热器组件。模块的顶部边缘有两个连接器(PSA和PSB ),底部有四个附加连接器(PS125或PS24、PS335、PS28和PSSTAT)。)

值得注意的是，VME机架电源有七种主要变化。IS2020RKPSG2A的输入电压为125VDC，输出额定值为400 W。输出(如上所述)包括五个+28V输出、一个远程+28V输出、一个PS335输出和一个状态ID输出。

IS2020RKPSG2A模块内发生的故障情况将需要复位操作，将暂时关闭其中一个输出，或将需要更换整个电源。这些是唯一会发生的故障类型。
