IS420ESWBH1A 交换机 具有 16 个 10/100Base-TX 铜缆端口

产品描述

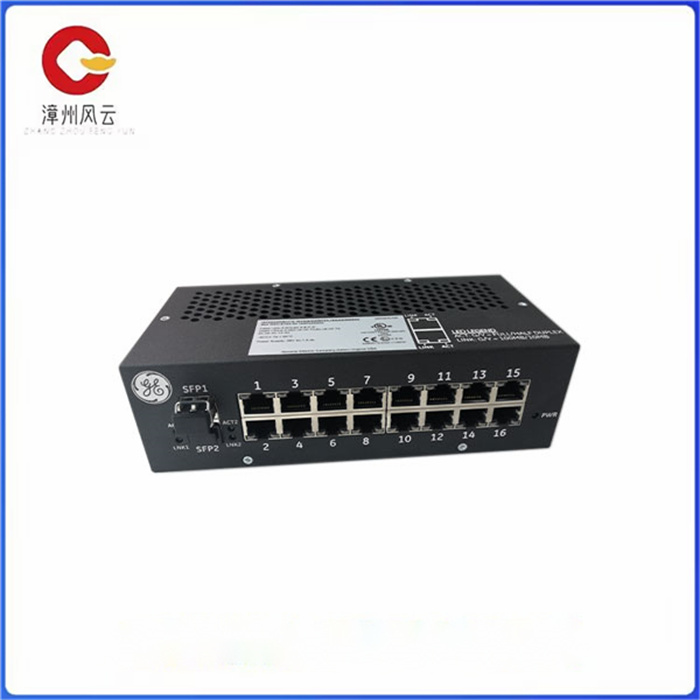

ESWB 型号中的第一个 IS420ESWBH1A 交换机是 IONet 交换机的第二个硬件版本。此交换机由 16 个 100/100Base-TX RJ45 铜缆端口组成。此交换机只有一个光纤端口，被描述为带有 LC 型连接器的多模 100Base-FX 端口。光纤端口是五种 ESWB 型号之间唯一明显的区别。

与之前的ESWx交换机硬件型号一样，IS420ESWBH1A也可以以各种配置安装，无论是平行的还是垂直的，在垂直安装中可以使用的夹子是有区别的。在垂直安装方向上与 ESWB 开关一起使用的夹子是 259B2451BVP4 夹子。请注意，当此开关作为替代品安装时，它可以安装在 DIN 导轨或面板安装中。

当IS420ESWBH1A与以太网一起使用时，它最多可以与三个网络一起使用，这相当于双控制器、单工控制器或 TMR 控制器的控制器冗余。

通用电气在 GEI-100869 Mark VIe 工业以太网/IONet 交换机指南中将 IS420ESWBH1A 交换机标记为活动。

IS420ESWBH1A 交换机 具有 16 个 10/100Base-TX 铜缆端口

Product description

The first IS420ESWBH1A switch in the ESWB model is the second hardware version of the IONet switch. The switch consists of 16 100/100Base-TX RJ45 copper cable ports. This switch has only one fiber port, which is described as a multimode 100Base-FX port with LC type connectors. The fiber-optic port is the only noticeable difference between the five ESWB models.

Like previous ESWx switch hardware models, the IS420ESWBH1A can be installed in a variety of configurations, either parallel or vertical, and there is a difference in the clips that can be used in a vertical installation. The clamp used with the ESWB switch in the vertical mounting direction is the 259B2451BVP4 clamp. Note that when this switch is installed as a replacement, it can be installed in a DIN rail or panel mount.

When the IS420ESWBH1A is used with Ethernet, it can be used with up to three networks, which is equivalent to controller redundancy for dual controllers, simplex controllers, or TMR controllers.

Ge marks the IS420ESWBH1A switch as active in the GEI-100869 Mark VIe Industrial Ethernet /IONet Switch Guidelines.
