IS220PAICH1B GE通用电气进口分析输入输出模块

IS220PAICH1B GE通用电气进口分析输入输出模块

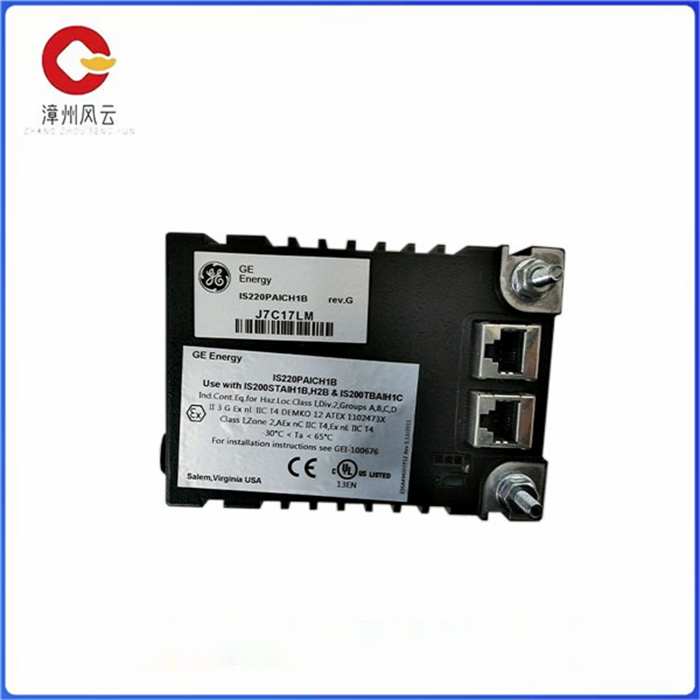

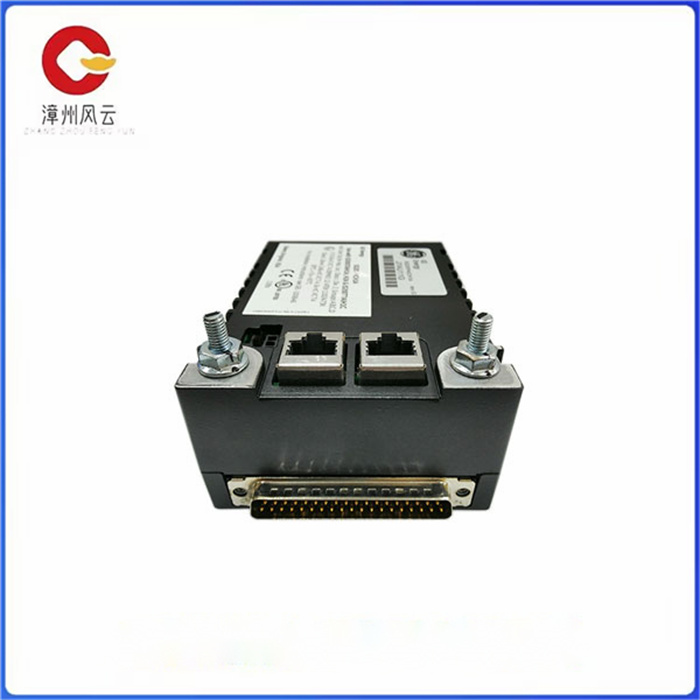

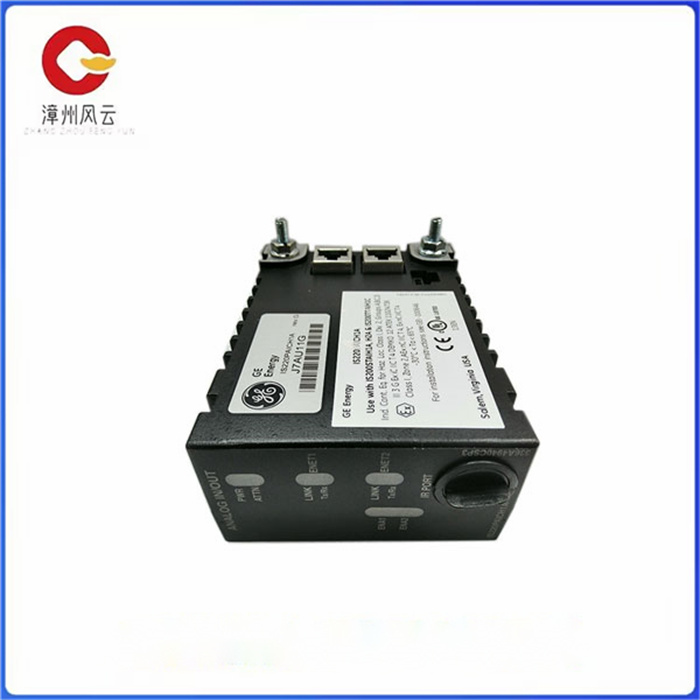

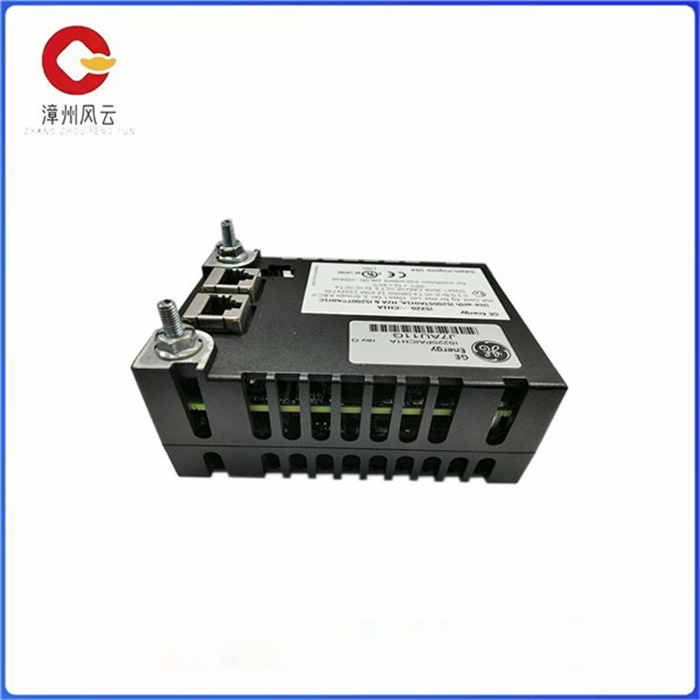

由通用电气生产的IS220PAICH1B型号是Mark VI系列的模拟输入/输出包。该型号是PAIC单元的第二个版本，与先前版本的PAIC包相比，其最低电压不同。该特定装置的最低电压为 <> 伏半直流电。此型号使用的标称电源是 <> 伏或 <> 伏直流电。

虽然IS220PAICH1B组用于Mark VI系列，但它可以与一些附件一起使用，也称为端子板;与此特定模拟I / O包一起使用的端子板都是IS200板，是IS200TBAIH1C，IS200TAIH1A和IS200TAIH2A。IS200TBAIH1C 型号是屏障式接线盒，与 IS22PAICH220B 组连接和使用时，最小导线尺寸为 1 AWG。

使用此型号时会出现特定的警报，其中一个警报标记为 82-83，它专注于输出并指示 IS220PAICH1B 包中的自杀继电器不起作用。此警报的可能原因通常是包中的自杀继电器命令与相关反馈不匹配、硬件出现故障或采集板上发生继电器故障。此问题的主要解决方案是更换 I/O 包本身。

IS220PAICH1B包装可用于许多不同的位置，包括危险和非危险场所，根据该型号的非危险场所的认证是UL E207685。

IS220PAICH1B GE通用电气进口分析输入输出模块

The IS220PAICH1B model produced by General Electric is an analog input/output package for the Mark VI series. This model is the second version of the PAIC unit with a different minimum voltage compared to the previous version of the PAIC package. The minimum voltage for this particular device is <> V semi-direct current. The nominal power supply used in this model is either <> volts or <> volts direct current.

Although the IS220PAICH1B group is used in the Mark VI series, it can be used with some accessories, also known as terminal boards; The terminal boards used with this particular analog I/O packet are all IS200 boards and are IS200TBAIH1C, IS200TAIH1A, and IS200TAIH2A. The IS200TBAIH1C model is a screen junction box with a minimum wire size of 1 AWG when connected and used with the IS22PAICH220B group.

Specific alarms appear when using this model, one of which is labeled 82-83, which focuses on the output and indicates that the suicide relay in the IS220PAICH1B package is not working. The possible cause of this alarm is usually a mismatch between the suicide relay command in the package and the relevant feedback, a hardware failure, or a relay failure on the acquisition board. The main solution to this problem is to replace the I/O package itself.

IS220PAICH1B packaging can be used in many different locations, including hazardous and non-hazardous sites, and the non-hazardous site certification according to this model is UL E207685.
