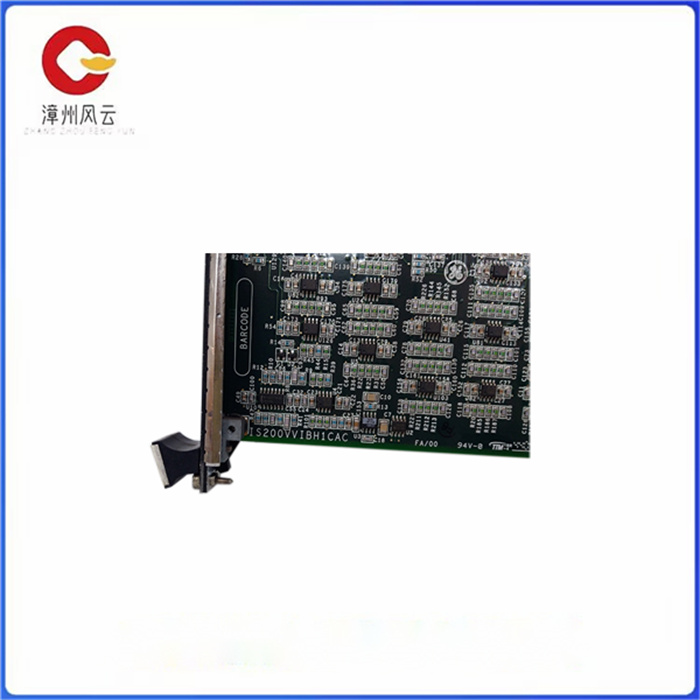

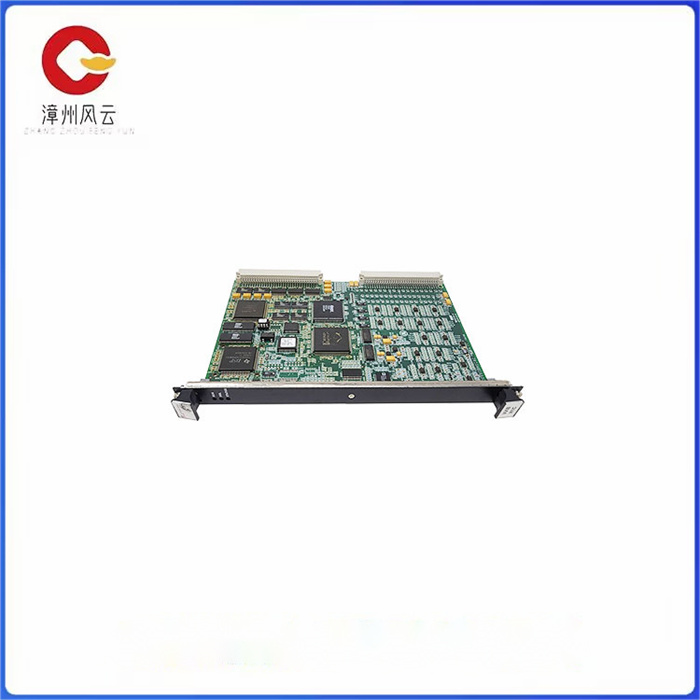

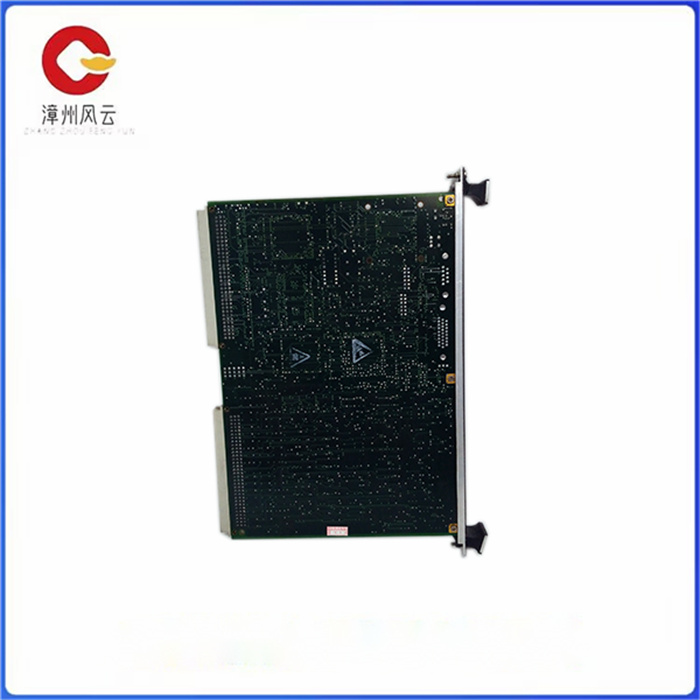

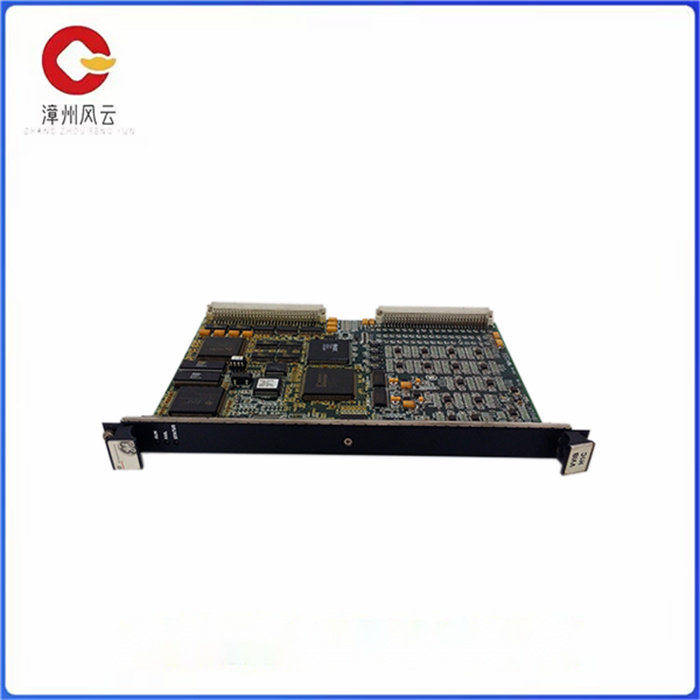

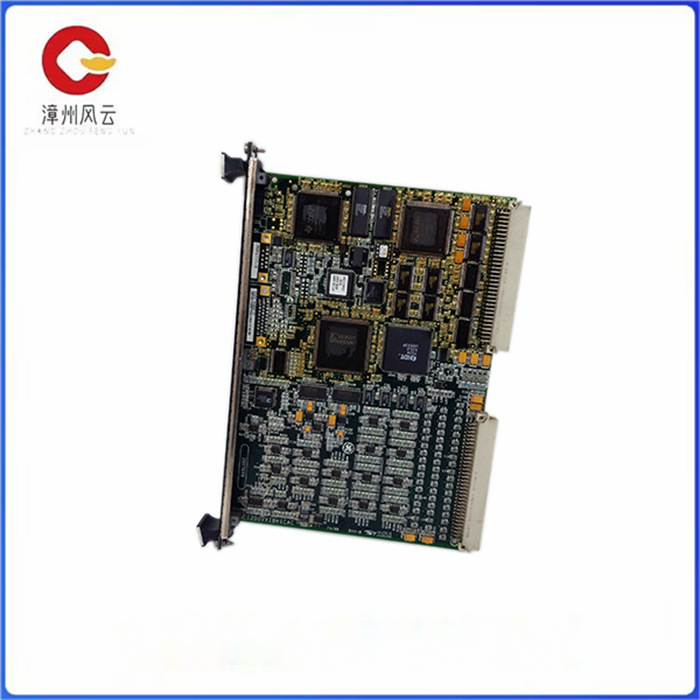

IS200VVIBH1C Mark VI系统制造的电路板组件

IS200VVIBH1C Mark VI系统制造的电路板组件

IS200VVIBH1C 是 GE 为 Mark VI 系统制造的印刷电路板组件。Mark VI 是 GE 以“Speedtronic”名称发布的几种燃气轮机和蒸汽轮机管理系统之一。

这个 IS200VVIBH1C 用作振动监测板，处理来自 DVIB 或 TVIB 端子板的振动探头信号。这些探头直接连接到端子板，一块板最多可以连接14个探头。

IS200VVIBH1C 将这些信号数字化，并通过 VME 总线发送到控制器。振动探头用于四种保护功能，包括超速、轴承振动、轴向位移和缸体膨胀。

IS200VVIBH1C Mark VI系统制造的电路板组件

The IS200VVIBH1C is a printed circuit board component manufactured by GE for the Mark VI system. The Mark VI is one of several gas turbine and steam turbine management systems released by GE under the name Speedtronic.

The IS200VVIBH1C is used as a vibration monitoring board to process vibration probe signals from DVIB or TVIB terminal boards. These probes are connected directly to the terminal board, and up to 14 probes can be connected to one board.

The IS200VVIBH1C digitizes these signals and sends them to the controller via the VME bus. Vibration probes are used for four protection functions, including overspeed, bearing vibration, axial displacement and cylinder expansion.
