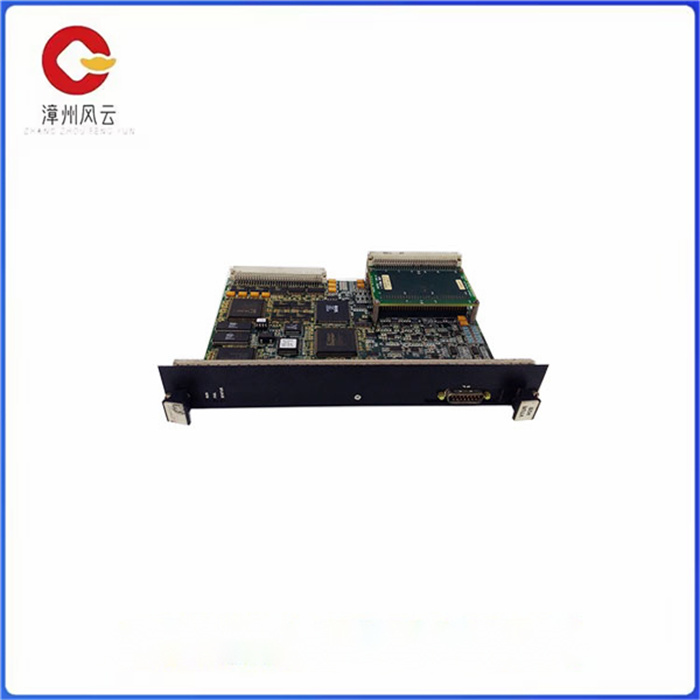

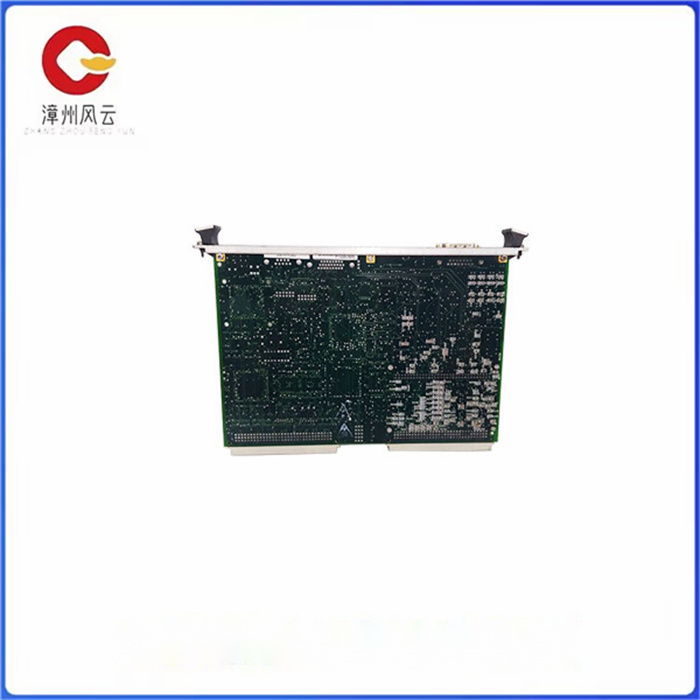

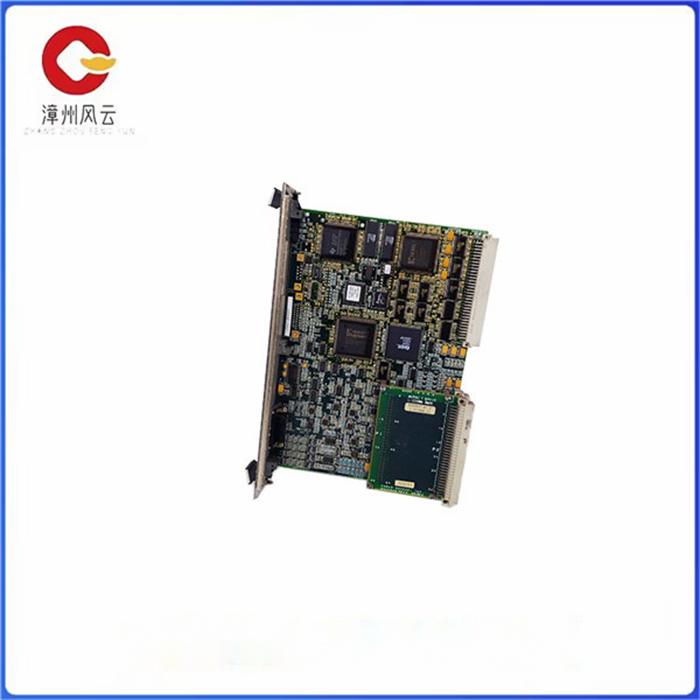

IS200VTURH2BAC 初级涡轮保护板 包括监测轴和电压电流

IS200VTURH2BAC 初级涡轮保护板 包括监测轴和电压电流

IS200VTURH2BAC型号是热电偶输入板。该卡用于通用输入和输出，提供多达24个热电偶的接口。该板使用的24个热电偶输入是S,K,T,J或E输入。请注意，这些型号可以接地或不接地。在执行接口时，有两种不同的终端板类型，屏障型或盒型;它将接口到一个单一的屏障型终端板或两个盒型终端板。如果VTCC卡与备份保护模块一起使用，则可以提供多达9个热电偶的电势。

IS200VTURH2BAC卡面板上的主要组件是两个标记为并行或串行的端口。在卡的顶部，有三个led标记运行，故障和状态。每个LED都有不同的颜色与LED相对应。led的典型颜色是红色、黄色和绿色。状态指示灯为黄色，运行指示灯为绿色，失败指示灯为红色。

IS200VTURH2BAC 初级涡轮保护板 包括监测轴和电压电流

The IS200VTURH2BAC model is a thermocouple input board. The card is used for universal input and output, providing interfaces for up to 24 thermocouples. The 24 thermocouple inputs used by the board are S,K,T,J or E inputs. Please note that these models can be grounded or ungrounded. When executing interfaces, there are two different types of terminal boards, barrier or box; It will interface to a single barrier type end board or two box type end boards. If the VTCC card is used with a backup protection module, it can provide the potential of up to 9 thermocouples.

The main components on the IS200VTURH2BAC card panel are two ports labeled parallel or serial. At the top of the card, there are three leds marking operation, failure and status. Each LED has a different color corresponding to the LED. The typical colors of leds are red, yellow and green. The status indicator is yellow, the running indicator is green, and the failure indicator is red.
