IS200TVBAH2ACC板作为振动输入监测板销售。该型号使用的是直流电的电压而不是交流电的电压，没有负直流电源，该型号的唯一电源是正28伏直流电。该模型可用于TMR(三模冗余)或单纯形系统。当该模块与基于tmr的架构(如Mark VI系列)一起使用时，它由电源、ionet和三个独立的控制模块组成。

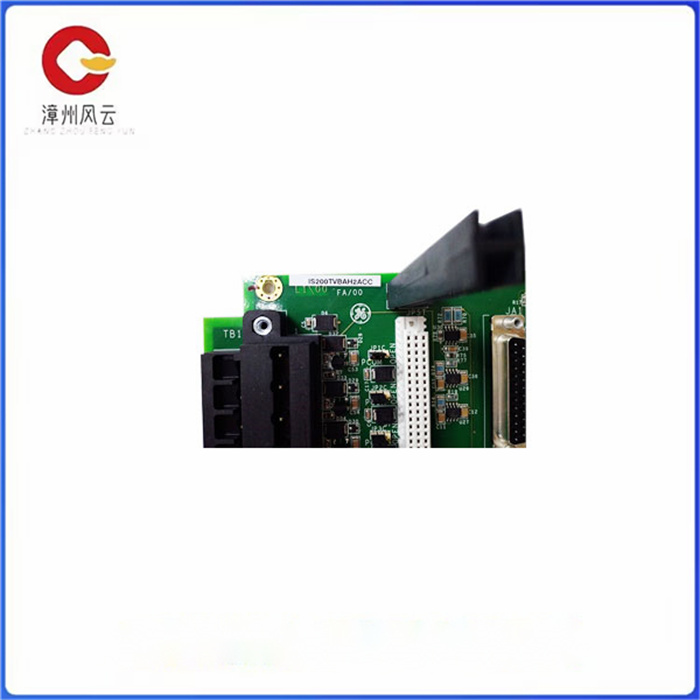

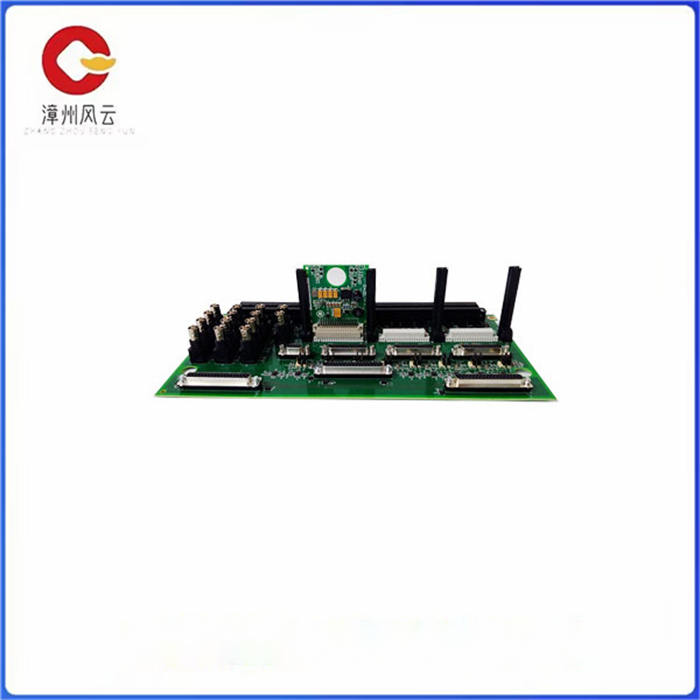

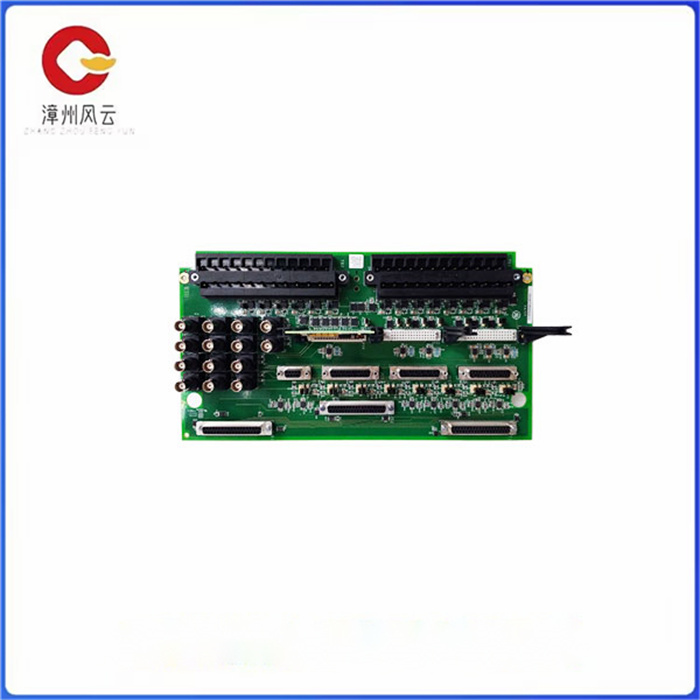

IS200TVBAH2ACC板的物理组件包括7个sub-D引脚连接器，2个端子带，3个母插头连接器和14个单针连接器。sub-D连接器有不同的引脚数量;一个连接器有9个引脚，而剩下的6个连接器中有一半是25个引脚连接器，剩下的3个是37个引脚连接器。三个37针连接器位于靠近电路板外缘的位置，标记为JR1, JS1和JT1;其余四个连接器分别标记为JA1、JB1、JC1和JD1。

IS200TVBAH2ACC 物理组件包括7个sub-D引脚连接器

IS200TVBAH2ACC board is marketed as a vibration input monitoring board. This model uses DC voltage instead of AC voltage, there is no negative DC power supply, and the only power supply for this model is positive 28 volts DC. The model can be used in TMR(three-mode redundancy) or simplex systems. When the module is used with a TMR-based architecture such as the Mark VI series, it consists of a power supply, ionet and three separate control modules.

The physical components of the IS200TVBAH2ACC board include 7 sub-D pin connectors, 2 terminal bands, 3 female plug connectors, and 14 single pin connectors. sub-D connectors have different number of pins; One connector has 9 pins, while half of the remaining 6 connectors are 25 pin connectors, and the remaining 3 are 37 pin connectors. Three 37-pin connectors are located near the outer edge of the board, labeled JR1, JS1, and JT1; The remaining four connectors are labeled JA1, JB1, JC1, and JD1.
