IS200TBCIS2CCD 适合工业过程控制的现场总线系统

IS200TBCIS2CCD 适合工业过程控制的现场总线系统

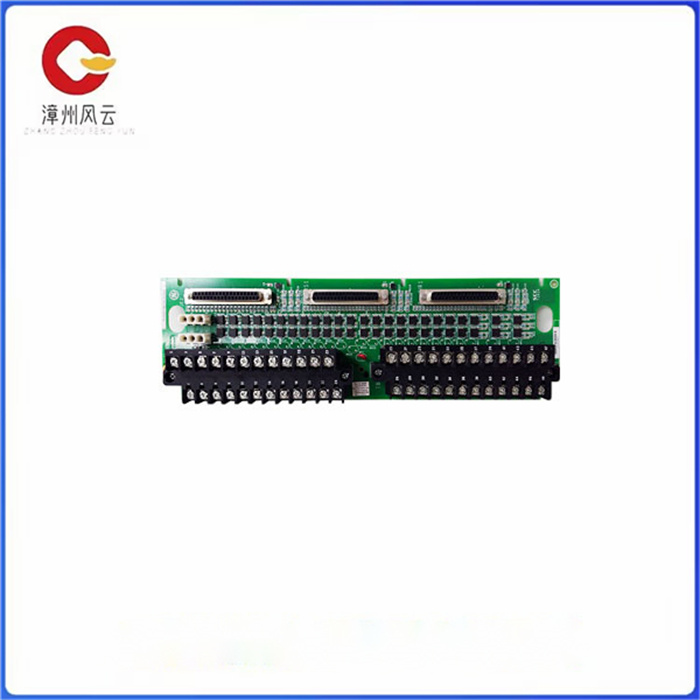

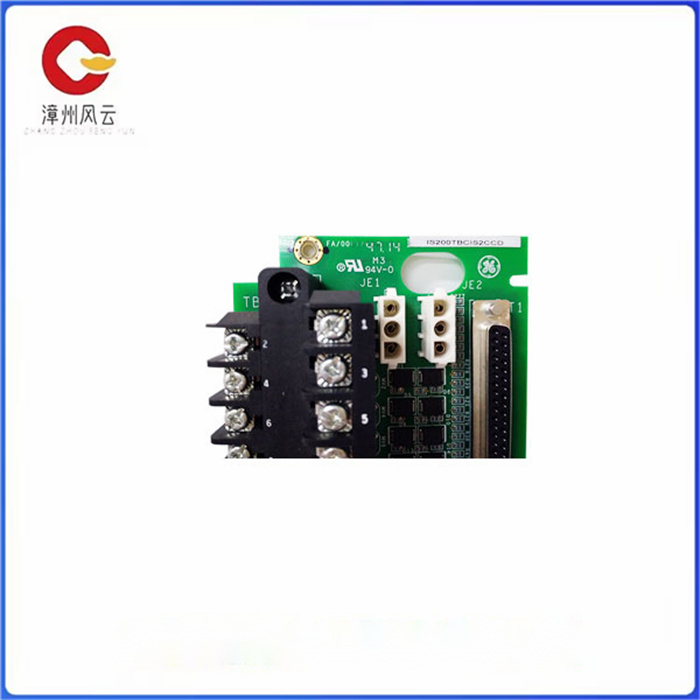

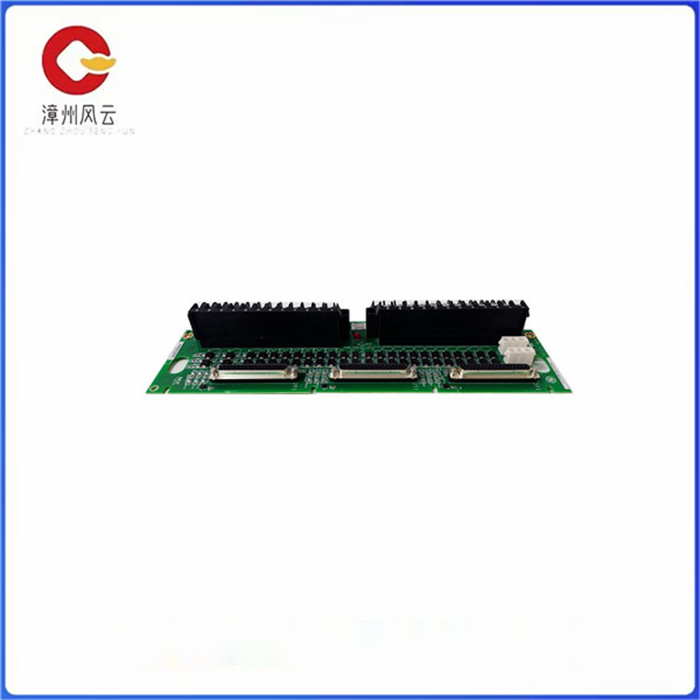

型号IS200TBCIS2CCD是通用电气生产的Mark VI IS200系列的一部分。这种型号被描述为带有组隔离端子板的接触输入。操作时，该装置将接受24个干接点输入，同时连接到两个屏障型端子块。有几种不同的控制系统可以使用TBCI模型。相关的控制系统是Mark VI，但也包括Mark VIe和Mark VIe控制系统。当TBCI模型用于Mark VIeS控制系统时，TBCIS1C,TBCIS2C和TBCIS3C型号都通过了安全认证。IS200TBCIS2CCD型号的一个特点是它可以与几种板类型一起使用，它可以与Mark VIe IS220PDIA和Mark VIeS IS200YDIA型号以及所有与PDIA和YDIA单元相关的型号一起使用。

IS200TBCIS2CCD模型可用于单工和三模冗余(TMR)系统;当TMR系统中使用TBCI模型时，电缆将使用JS1、JT1和JR1连接器连接到I/O处理器。当该模型用于Simplex系统时，I/O处理器将仅通过JR1连接器连接。当该模型用于Mark VIe/VIeS系统时，相关的I/O包将直接插入TBCI模型，然后连接到侧面安装支架上。IS200TBCIS2CCD型号上的固件可能需要下载才能正确操作该单元。关于TBCI单元的更多信息可以在附带的GEH-6721L手册中找到，该手册提供了所有TBCI修订的详细信息。

IS200TBCIS2CCD 适合工业过程控制的现场总线系统

Model IS200TBCIS2CCD is part of the Mark VI IS200 series produced by General Electric. This model is described as a contact input with a set of isolated terminal plates. When operating, the unit will accept 24 dry contact inputs that are simultaneously connected to two barrier terminal blocks. There are several different control systems that can use the TBCI model. The related control system is Mark VI, but also includes Mark VIe and Mark VIe control systems. When the TBCI model is used in the Mark VIeS control system, the TBCIS1C,TBCIS2C and TBCIS3C models are all certified for safety. One of the features of the IS200TBCIS2CCD model is that it can be used with several board types, it can be used with the Mark VIe IS220PDIA and Mark VIeS IS200YDIA models as well as all models associated with PDIA and YDIA units.

The IS200TBCIS2CCD model can be used in simplex and three-mode redundancy (TMR) systems. When the TBCI model is used in a TMR system, the cable will be connected to the I/O processor using JS1, JT1, and JR1 connectors. When this model is used in Simplex systems, the I/O processors will only be connected via JR1 connectors. When the model is used in the Mark VIe/VIeS system, the associated I/O packages are inserted directly into the TBCI model and then attached to the side mount bracket. Firmware on IS200TBCIS2CCD models may need to be downloaded to operate the unit properly. More information about the TBCI unit can be found in the accompanying GEH-6721L manual, which provides detailed information on all TBCI revisions.
